Victron BlueSolar PWM-Pro Charge Controller 12/24V-30A [SCC010030010]
Victron BlueSolar PWM-Pro Charge Controller 12/24V-30A [SCC010030010] is backordered and will ship as soon as it is back in stock.
Description
Description

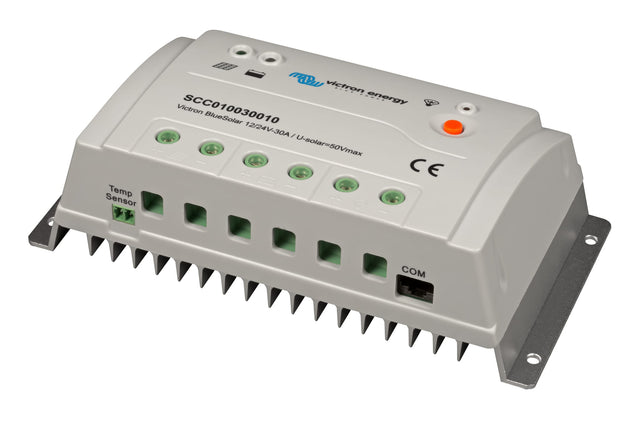

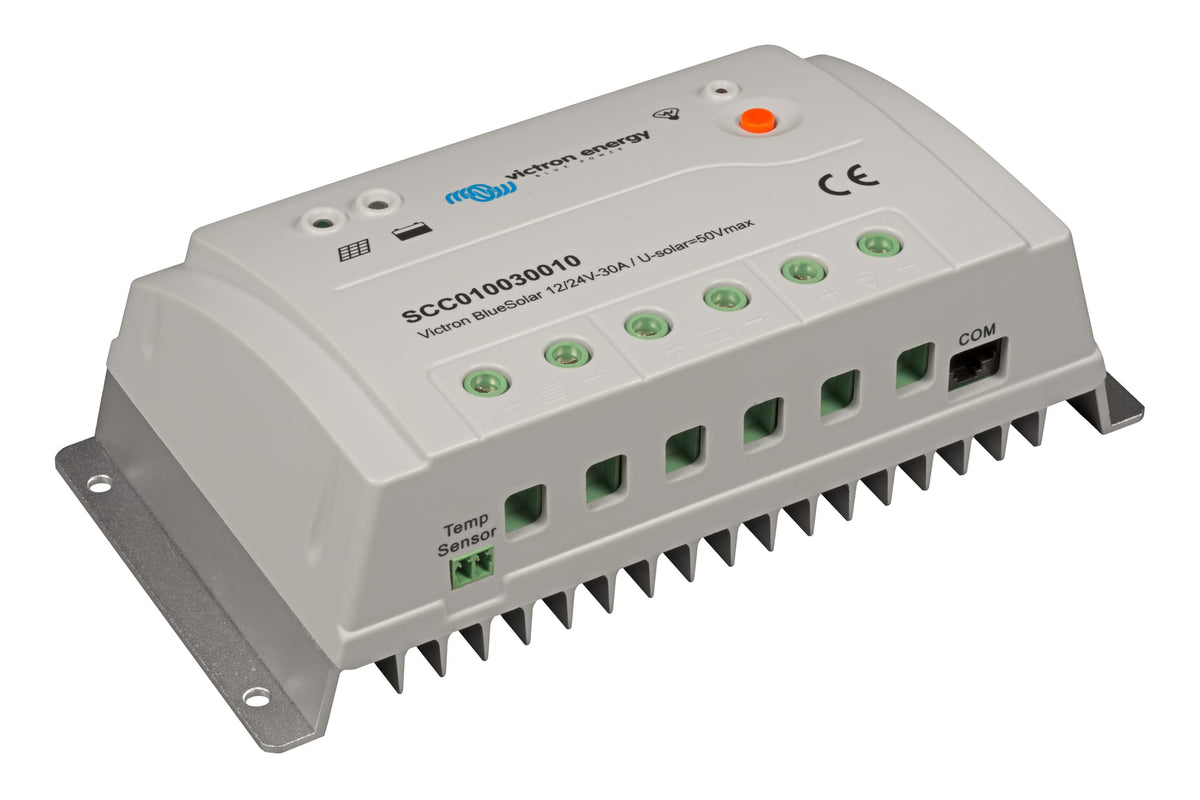

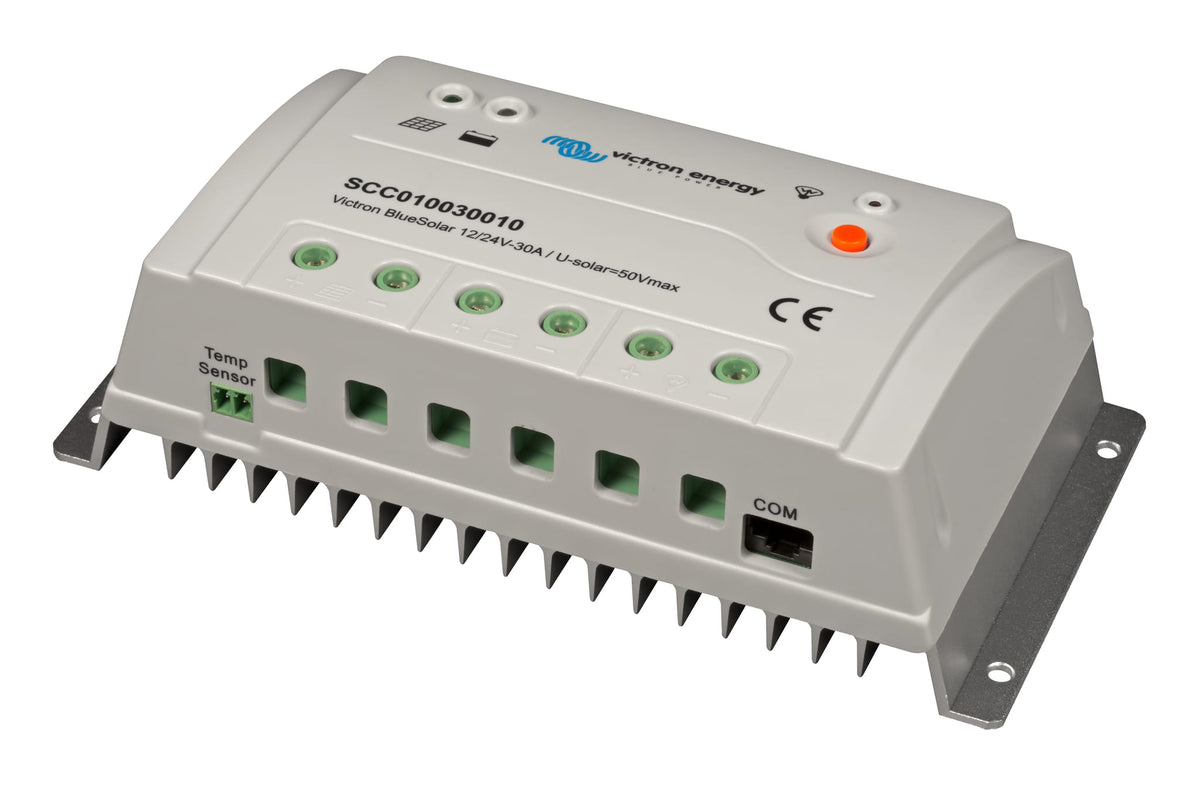

Victron BlueSolar PWM-Pro Charge Controller 12/24V-30A
A Victron BlueSolar PWM-Pro solar charge controller: reliable PWM charging for smaller solar systems, with programmable settings and an optional remote panel.
Specifications (from Victron)
| Rated Charge Current | 30 A |
| Battery voltage | 12V / 24V (automatic detection) |
| Self-consumption | 10 mA |
| Temperature Compensation | -30 mV / °C resp. -60 mV / °C (if temperature sensor installed) |
| Temperature Sensor | Yes, optional (artice SCC940100100) |
| Low Voltage Load Reconnect | 12.6V / 25.2V |
| Automatic Load Disconnect | Yes |
| Charge voltage absorption | 14.4V / 28.8V |
| Charge voltage equalzation | 14.6V / 29.2V |
| Charge voltage float | 13.8V / 27.6V |
| Grounding | Common positive |
| Load Output | Manual control + low voltage disconnect |
| Low Voltage Load Disconnect | 11.1V / 22.2V |
| Remote panel | Optional (article SCC900300000) |
| Maximum humidity (non-condensing) | 98 % |
| Maximum Solar voltage | 28V / 55V |
| Operating temperature range | -4°F to 122°F (-20 to 50°C) |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Excessive temperature |
| PV array 12V | Solar panel with 36 cells |
| PV array 24V | Solar panel with 72 cells,Two solar panles with 36 cells in series |
| PV connection terminal type | Screw terminals 10 mm² (8 AWG) |
| Load connection terminal type | Screw terminals 10 mm² (8 AWG) |
| Battery connection terminal type | Screw terminals 10 mm² (8 AWG) |
| Protection Category | IP30 |
| Colour | Grey |
| Safety | EN-IEC 62109-1 |
| Emission | EN-IEC 61000-6-1,ISO 7637-2,EN-IEC 61000-6-3 |
| Dimensions (H x W x D) | 7.9 x 3.9 x 2.2 in (200 x 100 x 57 mm) |
| Weight | 1.1 lb (0.5 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | SCC010030010 |
| UPC / EAN | 8719076025399 |
| Country of origin | China |
Documents
From Victron
BlueSolar PWM-Pro
The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• Day/night timing options: see manual Remote Panel for details.
BlueSolar PWM-Light
• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options: see manual for details
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
