Victron BlueSolar PWM-LCD&USB 48V-10A [SCC040010050]
Victron BlueSolar PWM-LCD&USB 48V-10A [SCC040010050] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron BlueSolar PWM-LCD&USB 48V-10A [SCC040010050] is backordered and will ship as soon as it is back in stock.
Description
Description

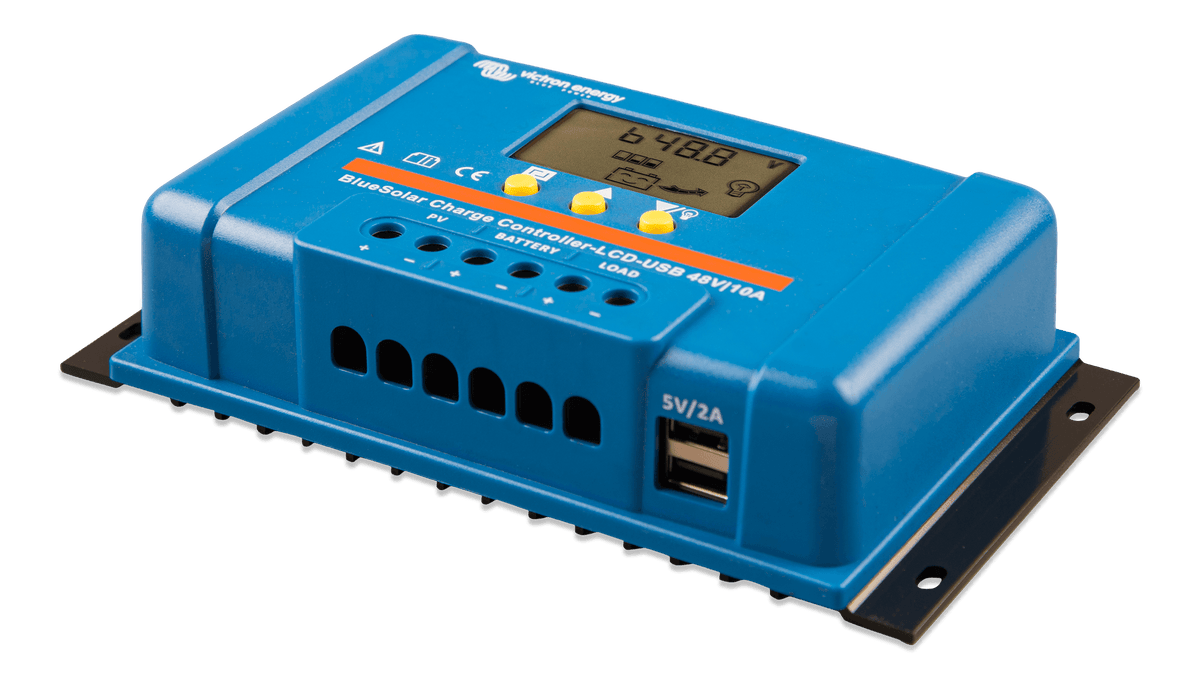

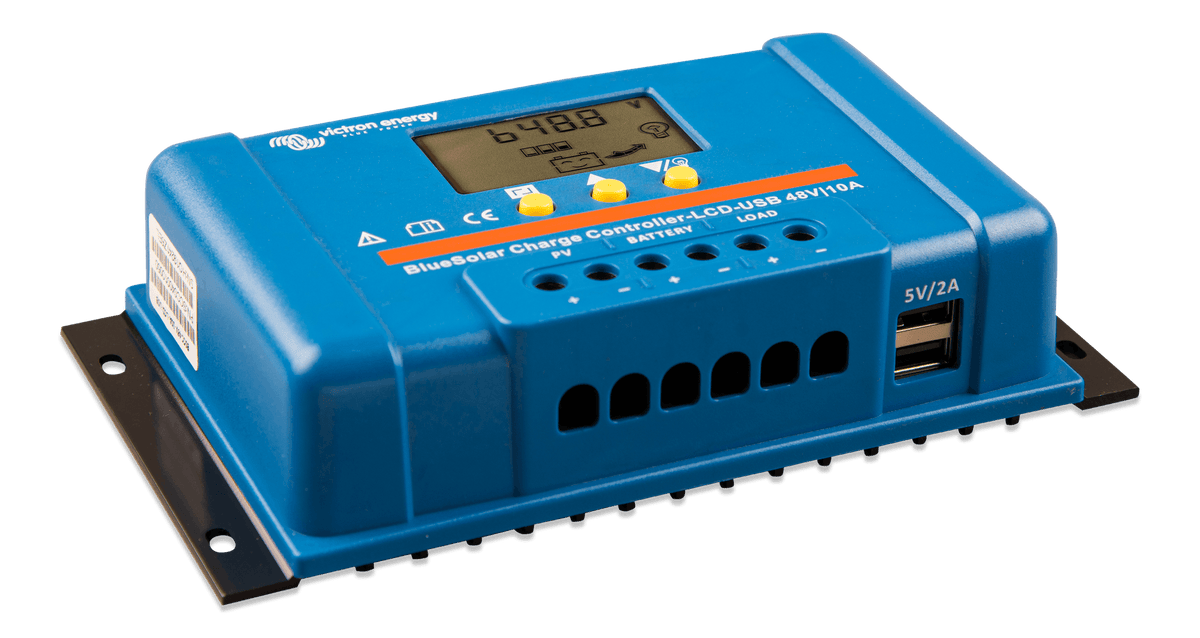

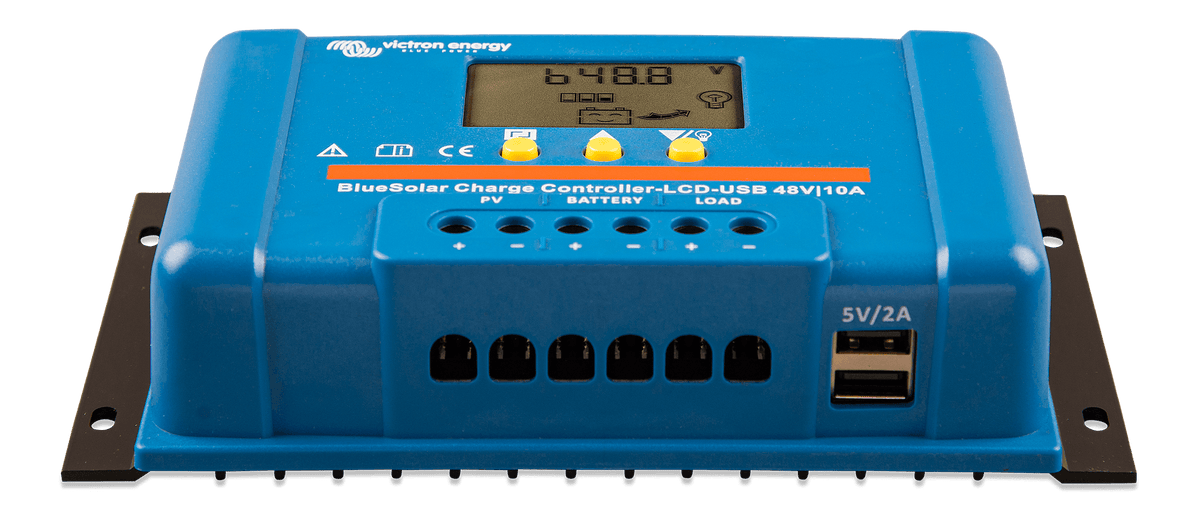

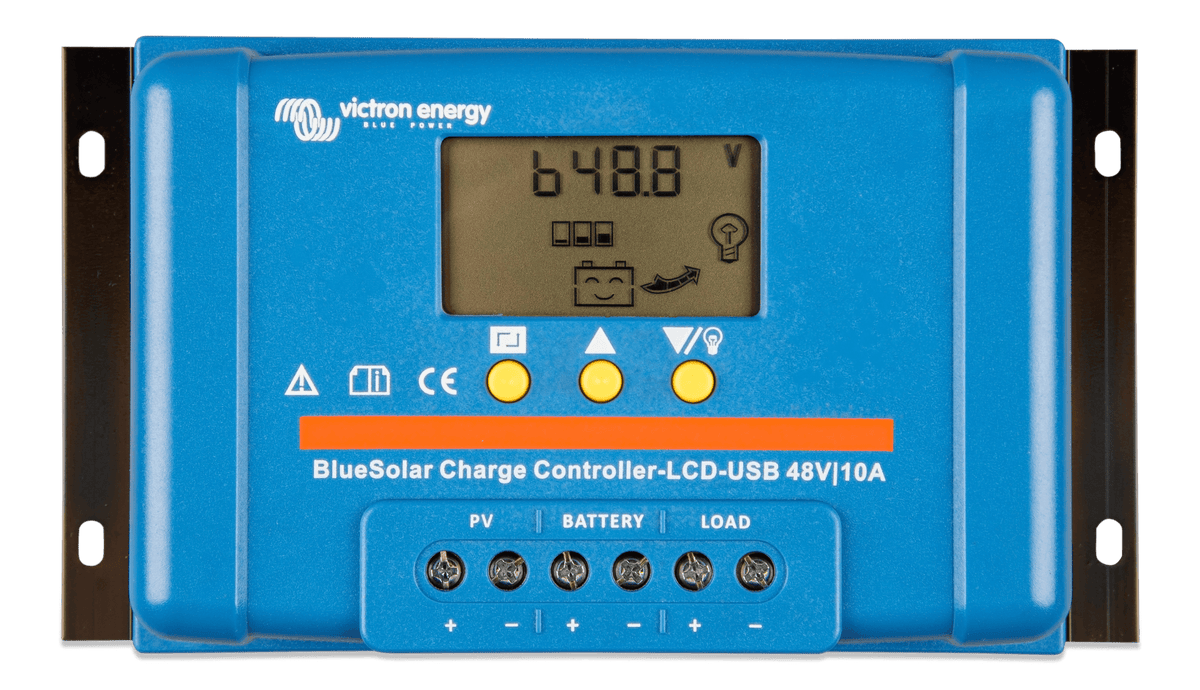

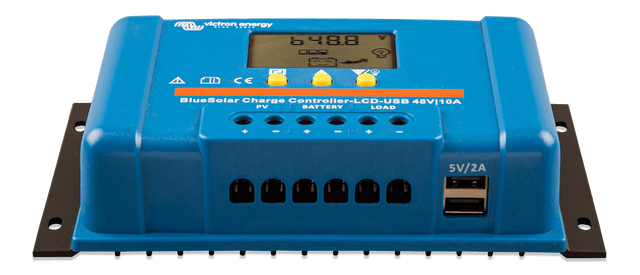

Victron BlueSolar PWM-LCD&USB 48V-10A
A simple, affordable Victron BlueSolar PWM solar charge controller with LCD display and USB charging port, suited to smaller solar systems.
Specifications (from Victron)
| Rated Charge Current | 10 A |
| Battery voltage | 48V |
| Temperature Compensation | No |
| Self-consumption | 10 mA |
| PV array 48V | Two solar panels with 72 cells in series,Four solar panels with 36 cells in series |
| PV array 24V | Two solar panels with 36 cells in series,Solar panel with 72 cells |
| Temperature Sensor | No |
| USB current per port | 2 A |
| Remote panel | No |
| USB Voltage | 5 V |
| Automatic Load Disconnect | Yes |
| Charge voltage absorption | 57.6V |
| Charge voltage float | 54.8V |
| Grounding | Common positive |
| Load Output | Manual control + low voltage disconnect +timer |
| Low Voltage Load Disconnect | 44.8V |
| Low Voltage Load Reconnect | 50.4V |
| PV array 12V | Solar panel with 36 cells |
| Maximum humidity (non-condensing) | 95 % |
| Maximum Solar voltage | 100V |
| Number Of USB Ports | 2 |
| Operating temperature range | -31°F to 140°F (-35 to 60°C) |
| Overload Protection at 130% load | Shutdown after 60 seconds |
| Overload Protection at 160% load | Shutdown after 5 seconds |
| Overload Protection Short Circuit | Immediate shutdown |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Excessive temperature |
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Load connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Colour | Blue (RAL 5012) |
| Warranty | 5 years (Victron) |
| Victron part number | SCC040010050 |
| UPC / EAN | 8719076046233 |
| Country of origin | China |
Documents
- BlueSolar Charge Controllers 12-24V LCD&USB (datasheet)
- BlueSolar PWM Charge Controller DUO 12V-24V-20A LCD-USB (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
BlueSolar PWM-LCD&USB
- Liquid Crystal Display
- Two 5 Volt USB outputs
- Lighting control function, fully programmable
- Three stage battery charging (bulk, absorption, float), fully programmable
- Load output with low voltage and manual disconnect (programmable)
- Load output protected against over load and short circuit
- Protected against reverse polarity connection of the solar panels and/or battery
BlueSolar PWM DUO-LCD&USB
All the above-mentioned functions, plus:
- Charges two separate batteries
- Programmable charge current ratio
- External Temperature sensor
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
