Victron BlueSolar PWM-LCD&USB 12/24V-5A [SCC010005050]
Victron BlueSolar PWM-LCD&USB 12/24V-5A [SCC010005050] is backordered and will ship as soon as it is back in stock.
Description
Description

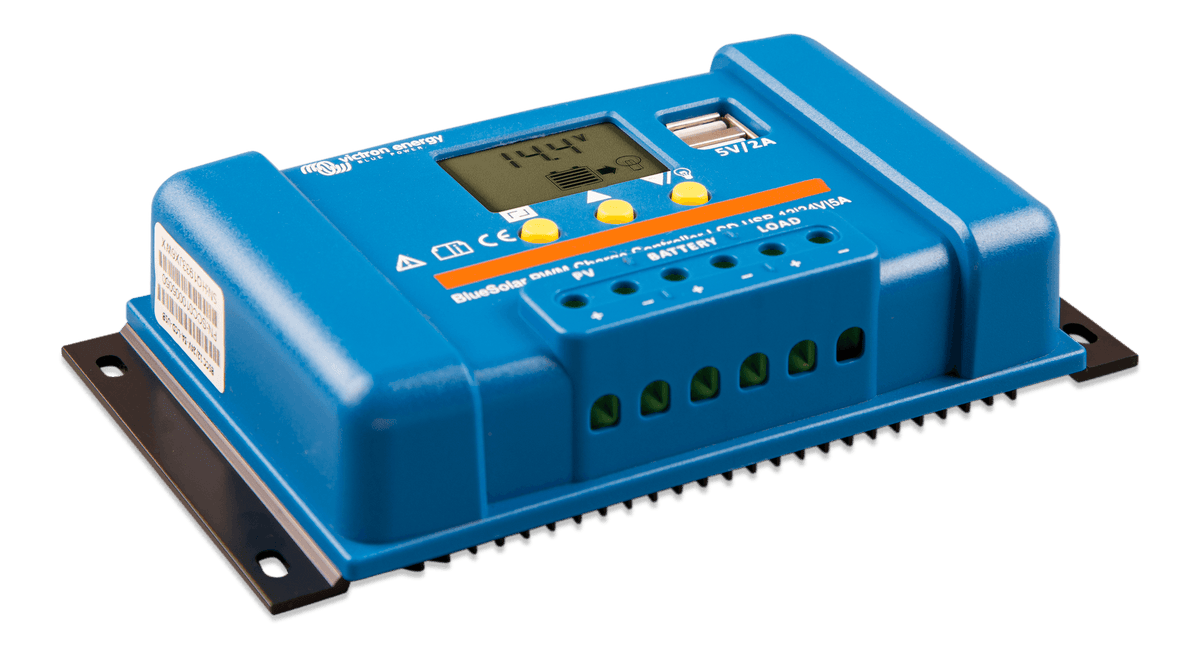

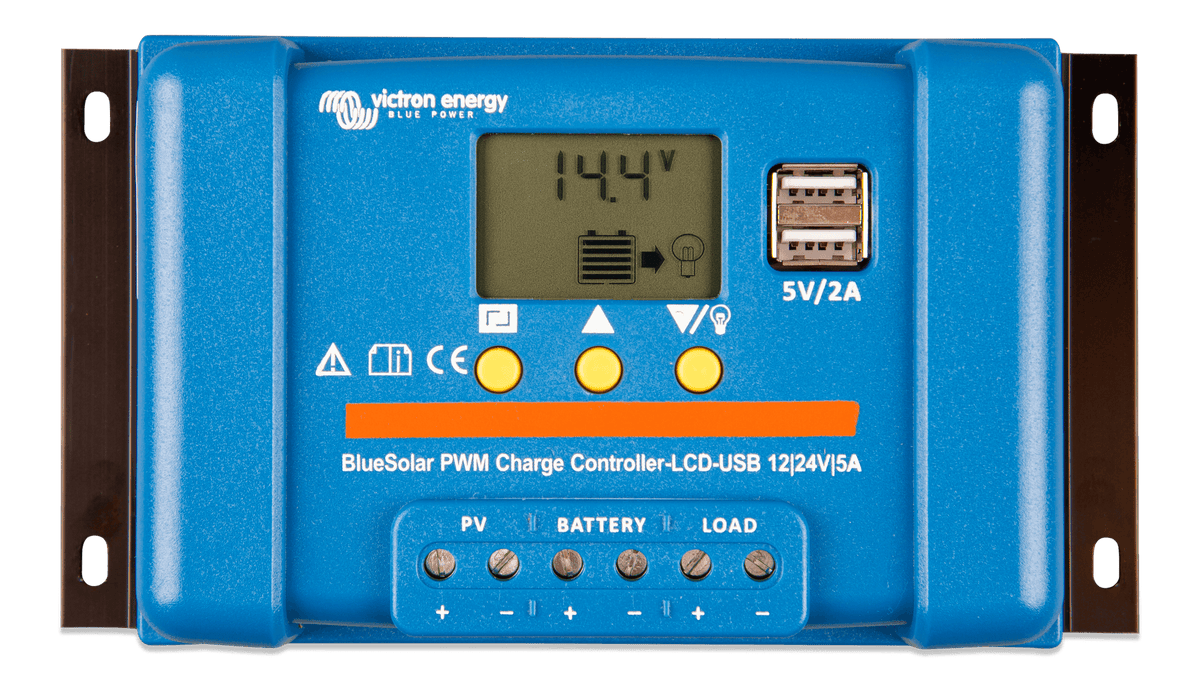

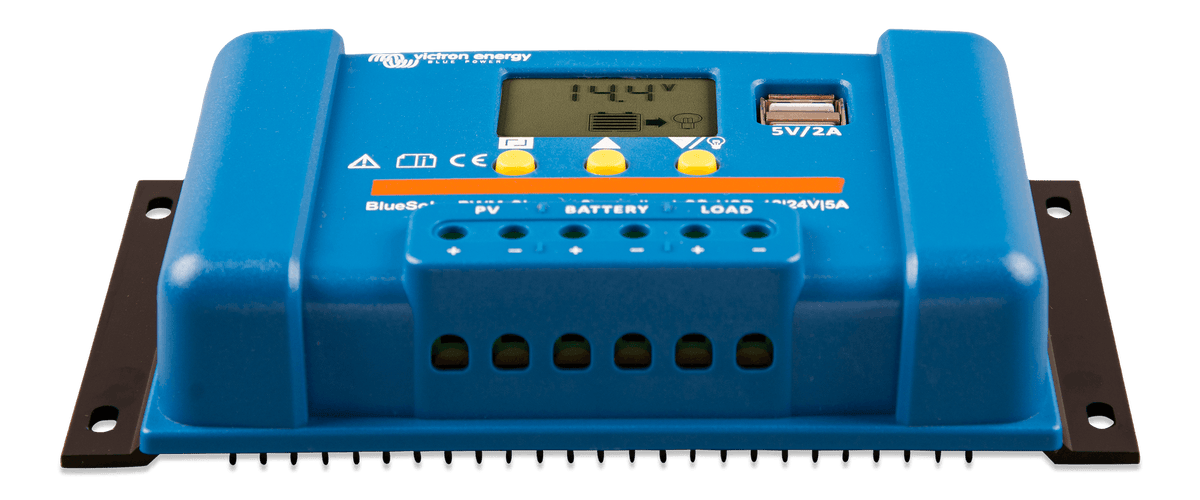

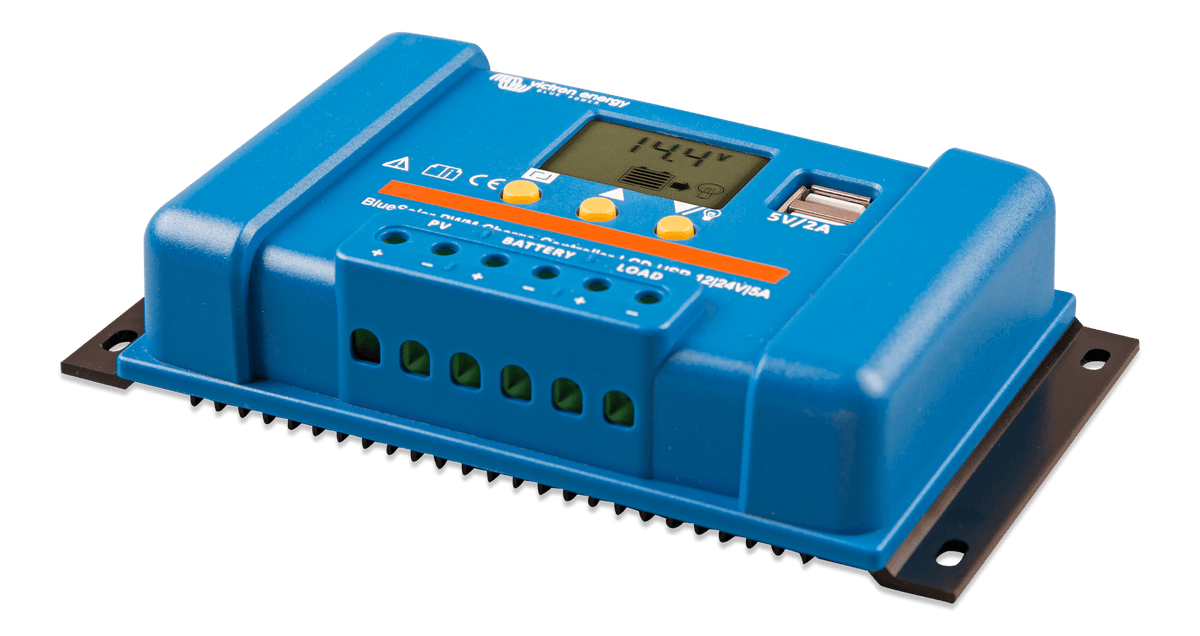

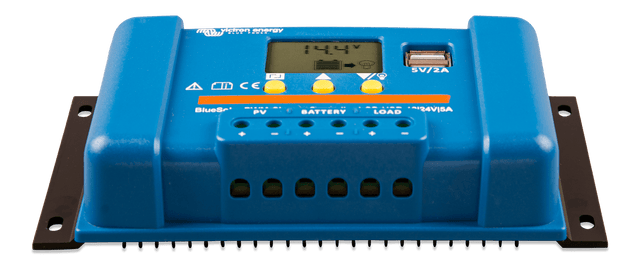

Victron BlueSolar PWM-LCD&USB 12/24V-5A
A simple, affordable Victron BlueSolar PWM solar charge controller with LCD display and USB charging port, suited to smaller solar systems.
Specifications (from Victron)
| Rated Charge Current | 5 A |
| Battery voltage | 12V / 24V (automatic detection) |
| Load Output | Manual control + low voltage disconnect +timer |
| Low Voltage Load Disconnect | 11.2V / 22.4V |
| Operating temperature range | -31°F to 140°F (-35 to 60°C) |
| Maximum humidity (non-condensing) | 95 % |
| Low Voltage Load Reconnect | 12.6V / 25.2V |
| Charge voltage float | 13.7V / 27.4V |
| Automatic Load Disconnect | Yes |
| Charge voltage absorption | 14.4V / 28.8V |
| Grounding | Common positive |
| PV array 48V | Four solar panels with 36 cells in series,Two solar panels with 72 cells in series |
| PV array 24V | Solar panel with 72 cells,Two solar panels with 36 cells in series |
| USB current per port | 2 A |
| USB Voltage | 5 V |
| Temperature Compensation | No |
| Self-consumption | 10 mA |
| Remote panel | No |
| Overload Protection at 130% load | Shutdown after 60 seconds |
| Temperature Sensor | No |
| Number Of USB Ports | 2 |
| Maximum Solar voltage | 28V / 55V |
| PV array 12V | Solar panel with 36 cells |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Excessive temperature |
| Overload Protection Short Circuit | Immediate shutdown |
| Overload Protection at 160% load | Shutdown after 5 seconds |
| Battery connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Load connection terminal type | Screw terminals 6 mm² (10 AWG) |
| PV connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Colour | Blue (RAL 5012) |
| Warranty | 5 years (Victron) |
| Victron part number | SCC010005050 |
| UPC / EAN | 8719076046172 |
| Country of origin | China |
Documents
- BlueSolar Charge Controllers 12-24V LCD&USB (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
BlueSolar PWM-LCD&USB
- Liquid Crystal Display
- Two 5 Volt USB outputs
- Lighting control function, fully programmable
- Three stage battery charging (bulk, absorption, float), fully programmable
- Load output with low voltage and manual disconnect (programmable)
- Load output protected against over load and short circuit
- Protected against reverse polarity connection of the solar panels and/or battery
BlueSolar PWM DUO-LCD&USB
All the above-mentioned functions, plus:
- Charges two separate batteries
- Programmable charge current ratio
- External Temperature sensor
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
