Victron BlueSolar MPPT 150/70-MC4 [SCC010070300]
Victron BlueSolar MPPT 150/70-MC4 [SCC010070300] is backordered and will ship as soon as it is back in stock.
Description
Description

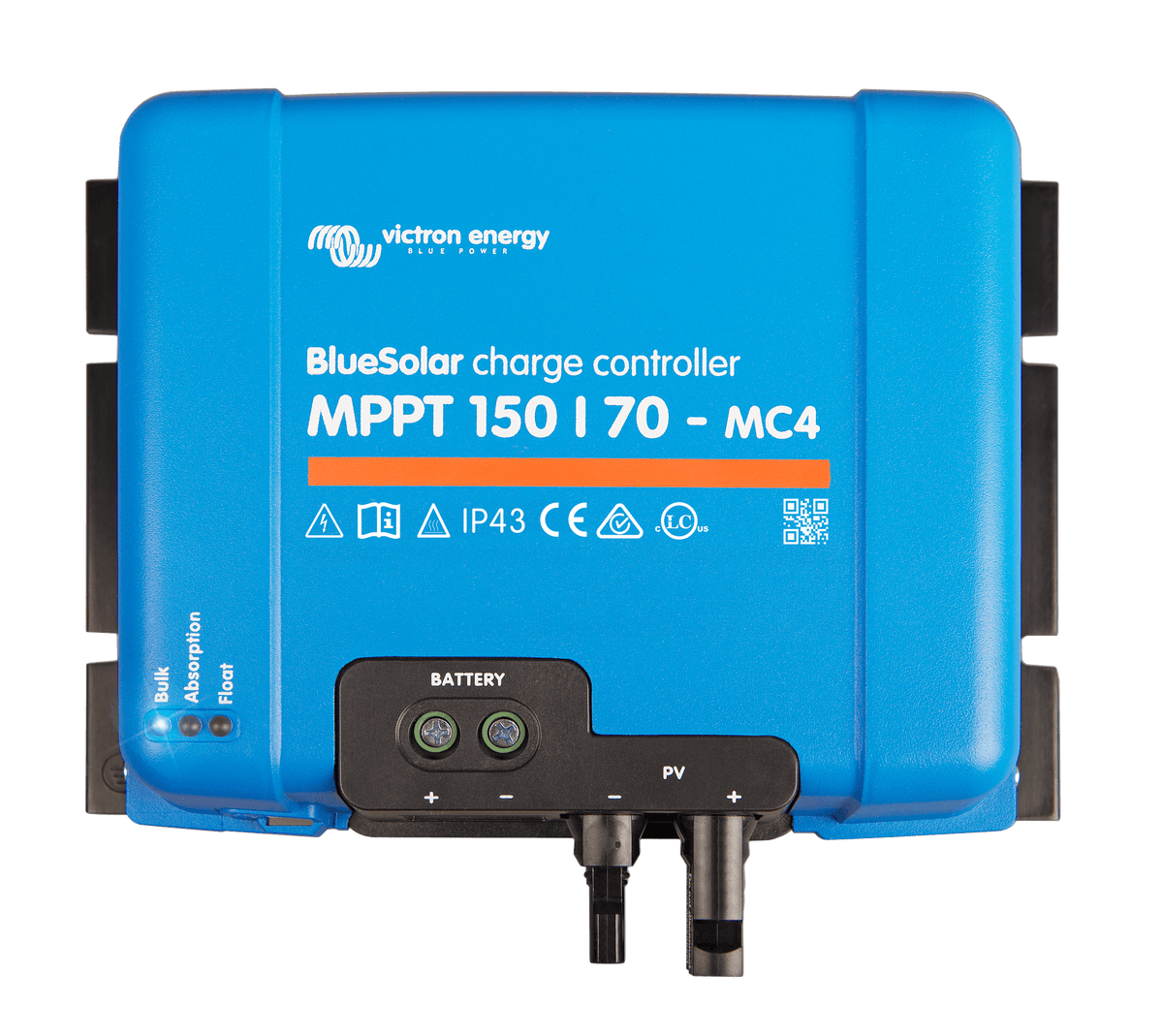

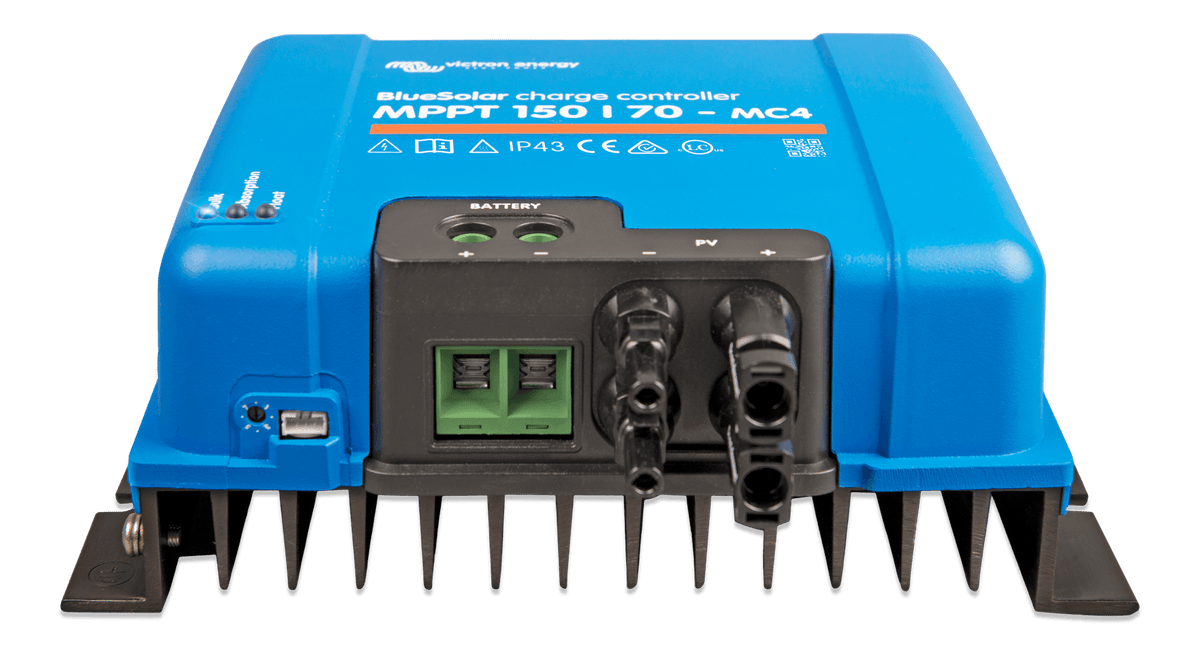

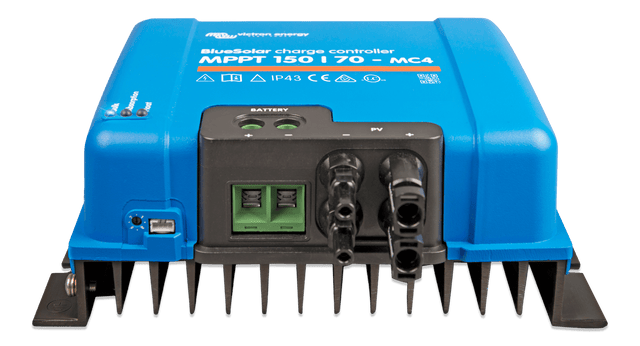

Victron BlueSolar MPPT 150/70-MC4
Victron BlueSolar MPPT solar charge controllers track the maximum power point of your panels to harvest more energy, especially in hazy or changing light, with adaptive multi-stage charging for long battery life.
Specifications (from Victron)
| Rated Charge Current | 70 A |
| Battery voltage | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Maximum PV short circuit current per tracker | 50 A |
| Maximum PV Open Circuit Voltage | 150 V |
| Maximum PV current per MC4 connection | 30 A |
| Maximum efficiency | 98 % |
| Data Communication | VE.Direct |
| Nominal PV power at 12 V | 1,000 W |
| Maximum humidity (non-condensing) | 95 % |
| Low Voltage Load Reconnect | 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm |
| Low Voltage Load Disconnect | 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm |
| Nominal PV power at 24 V | 2,000 W |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Sensor | Internal |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 12V | -16 mV/°C |
| Self-consumption | 10mA |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Programable relay | DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Operating temperature range | -22°F to 140°F (-30 to 60°C) |
| Number of trackers | 1 |
| Nominal PV power at 48 V | 4,000 W |
| PV connection terminal type | MC4 connectors (two pairs) |
| Battery connection terminal type | Screw terminals 35 mm² (2 AWG) |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Warranty | 5 years (Victron) |
| Victron part number | SCC010070300 |
| UPC / EAN | 8719076025528 |
| Country of origin | India |
Documents
- BlueSolar charge controller MPPT 150/60 & 150/70 (datasheet)
- BlueSolar and SmartSolar Charge Controller MPPT - Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
