Victron BlueSolar MPPT 150/45 [SCC115045222]
Victron BlueSolar MPPT 150/45 [SCC115045222] is backordered and will ship as soon as it is back in stock.
Description
Description

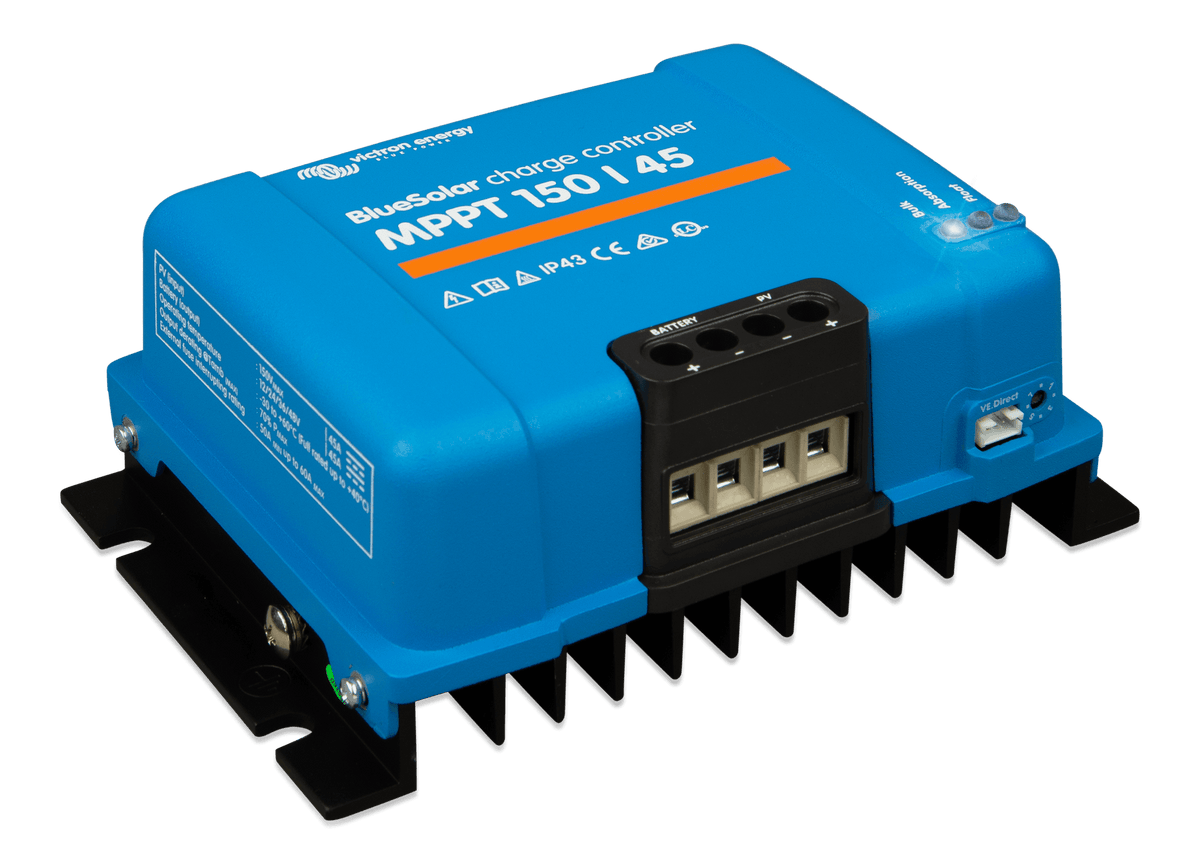

Victron BlueSolar MPPT 150/45
Victron BlueSolar MPPT solar charge controllers track the maximum power point of your panels to harvest more energy, especially in hazy or changing light, with adaptive multi-stage charging for long battery life.
Specifications (from Victron)
| Rated Charge Current | 45 A |
| Battery voltage | 12V / 24V / 48V (Auto Select) |
| Maximum PV short circuit current per tracker | 50 A |
| Maximum PV Open Circuit Voltage | 150 V |
| Maximum efficiency | 98 % |
| Data Communication | VE.Direct |
| Self-consumption | 12V: 20mA, 24V: 15mA, 48V: 10mA |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 12V | -16 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Sensor | Internal |
| Protections | PV reverse polarity,Output short-circuit,Excessive temperature |
| Operating temperature range | -22°F to 140°F (-30 to 60°C) |
| Number of trackers | 1 |
| Nominal PV power at 48 V | 2,600 W |
| Nominal PV power at 36V | 1,950 W |
| Nominal PV power at 24 V | 1,300 W |
| Nominal PV power at 12 V | 650 W |
| Maximum humidity (non-condensing) | 95 % |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 (connection area),IP43 (electronic components) |
| Safety | CSA C22.2,EN-IEC 62109-1,UL 1741 |
| Dimensions (H x W x D) | 5.1 x 7.3 x 2.8 in (130 x 186 x 70 mm) |
| Weight | 2.8 lb (1.25 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | SCC115045222 |
| UPC / EAN | 8719076053033 |
| Country of origin | India |
Documents
- BlueSolar MPPT Charge Controller 150/35 (datasheet)
- BlueSolar and SmartSolar Charge Controller MPPT - Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
