Victron Battery Monitor BMV-700H [BAM010700100]
Victron Battery Monitor BMV-700H [BAM010700100] is backordered and will ship as soon as it is back in stock.
Description
Description

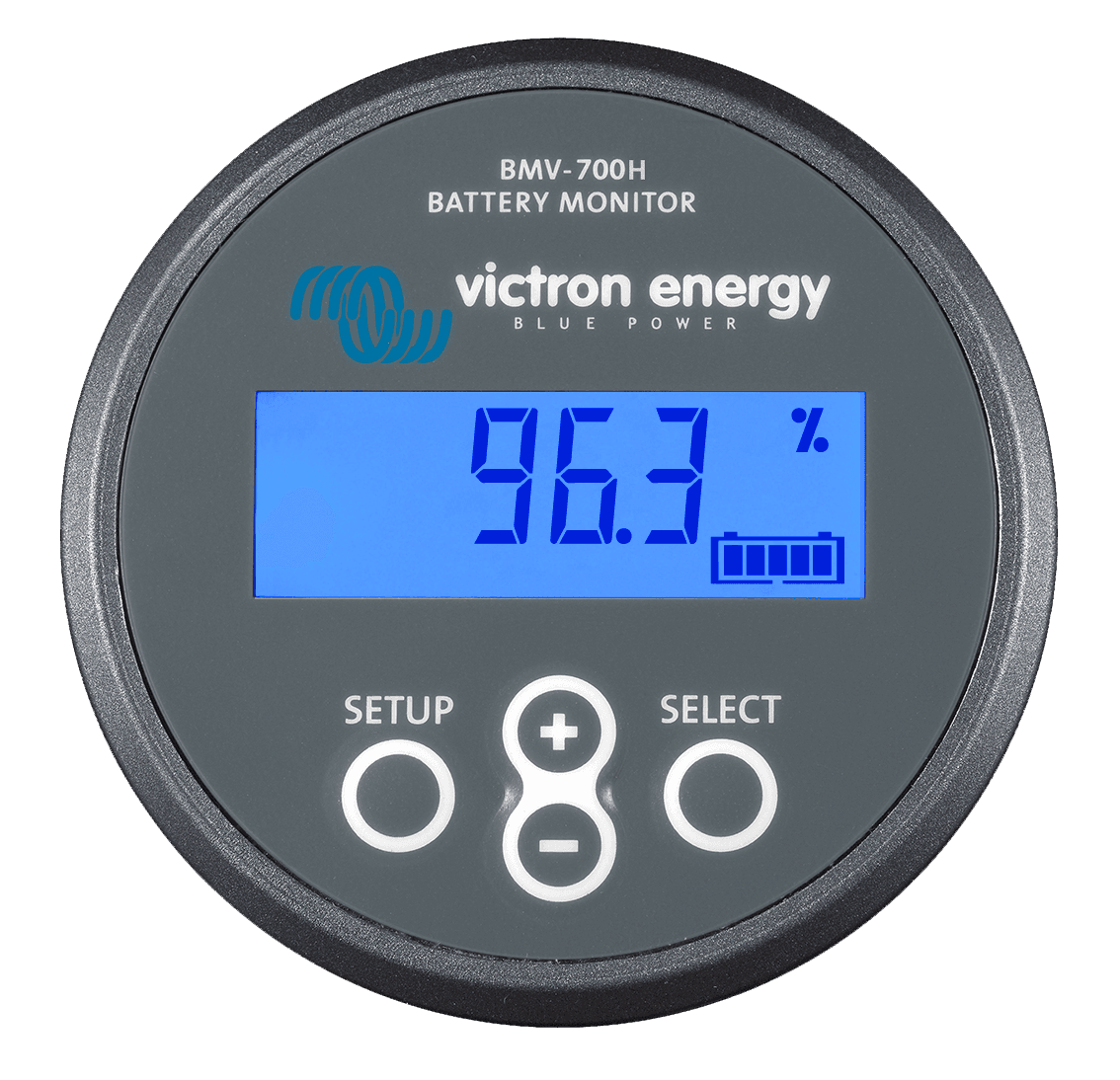

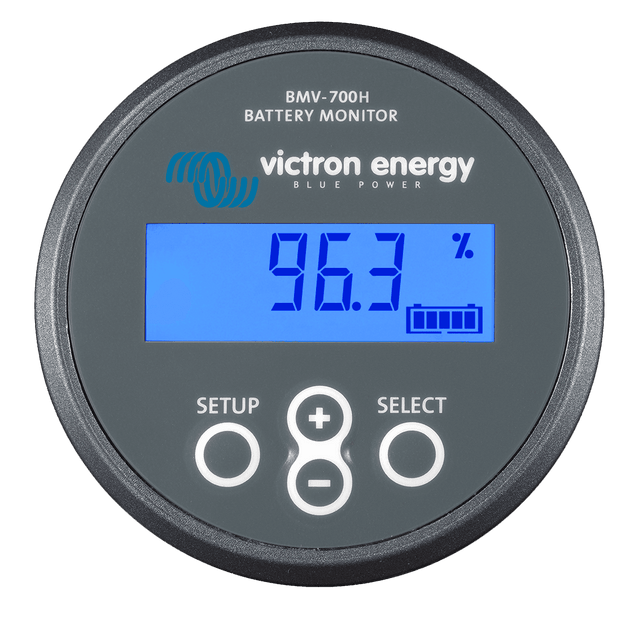

Victron Battery Monitor BMV-700H
Victron battery monitors show state of charge, voltage, current and time remaining, so you always know exactly how much energy is left in your bank.
Specifications (from Victron)
| Communication Port | VE.Direct |
| Audible alarm on device | Yes |
| Visual alarm on device | Yes |
| Battery capacity measurement range | 1–9,999 Ah |
| Supply voltage range | 60–385 VDC |
| Current draw | 4 mA |
| Programmable Relay | Normally open 60V / 1A |
| Operating temperature range | -40°F to 122°F (-40 to 50°C) |
| Current rating | 500 A |
| Display | Yes |
| Display to shunt cable | 1.5m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device |
| Positive Cable | 1.5m cable with 1A fuse |
| Shunt connection terminals | M10 bolts |
| Colour | Grey |
| Front bezel | 69 x 69 mm |
| Front diameter | 2.5 in (63 mm) |
| Installation | Flush mount |
| Protection category | IP55 (not for outdoor use) |
| Shunt | 500A / 50mV (included) |
| Body Diameter | 2 in (52 mm) |
| Body depth | 1.2 in (31 mm) |
| Voltage measurement resolution | 0.01 V |
| State of charge measurement resolution | 0.1 % |
| Measurement Accuracy | 0.4 % |
| Temperature Resolution (in the 0 to 50°C range) | 34°F (1°C) |
| Time to go measurement resolution | 1 min |
| Voltage measurement accuracy | 0.3 % |
| Current measurement resolution | 0.01 A |
| Current measurement accuracy | 0.4 % |
| Capacity measurement resolution | 0.1 Ah |
| Warranty | 5 years (Victron) |
| Victron part number | BAM010700100 |
| UPC / EAN | 8719076020080 |
| Country of origin | Malaysia |
Documents
From Victron
The BMV-700H and the BMV-710H Smart are high precision battery monitors that have been specially designed for systems with a high battery voltage ranging from 60 to 385 Volts.
These battery monitors calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.
They both come with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable and a 500A/50mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.
The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
To read more about the full BMV range & accessories, see this blog.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
