Victron 25A Buck-Boost DC/DC converter [ORI303025000]
Victron 25A Buck-Boost DC/DC converter [ORI303025000] is backordered and will ship as soon as it is back in stock.
Description
Description

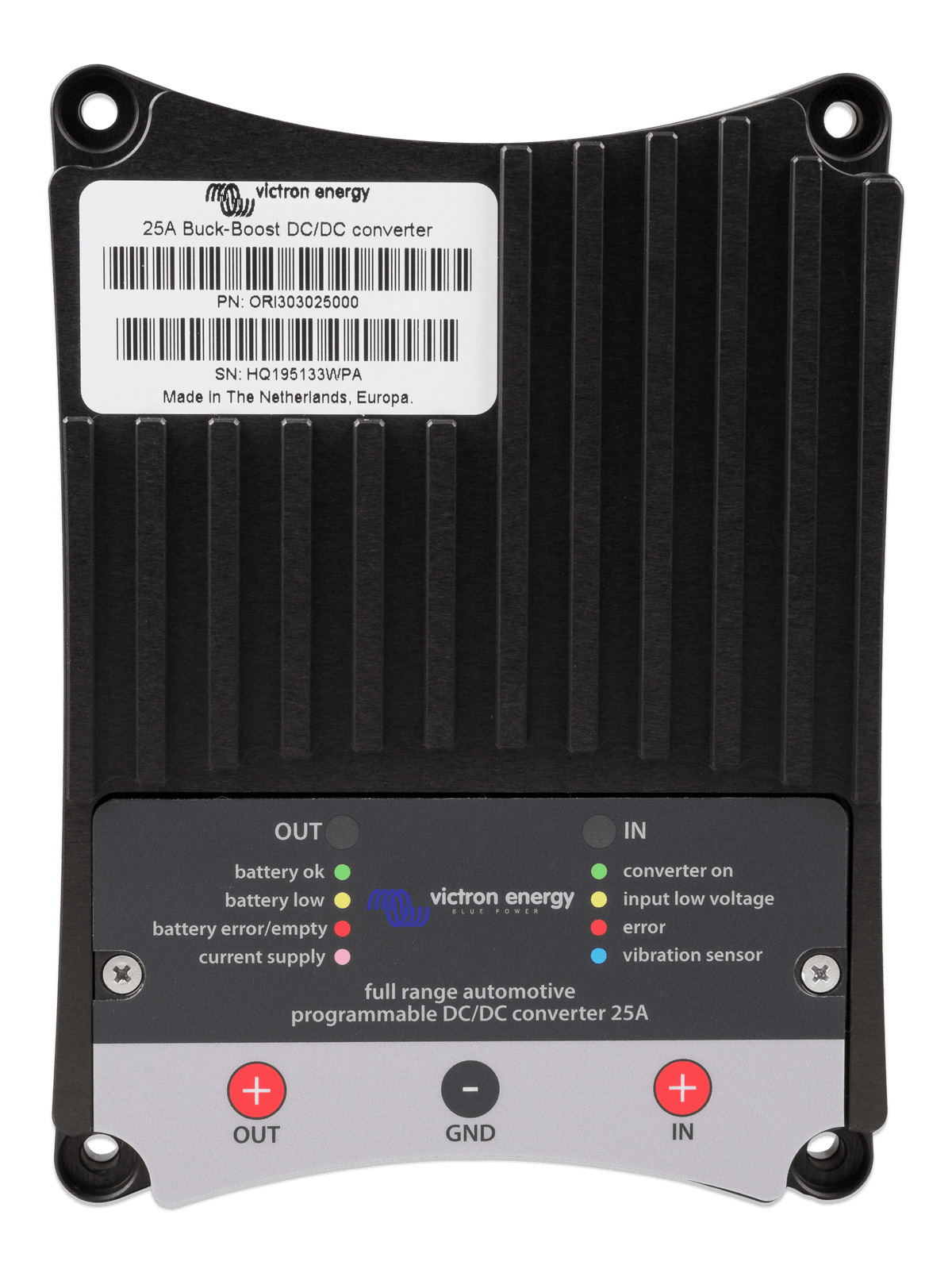

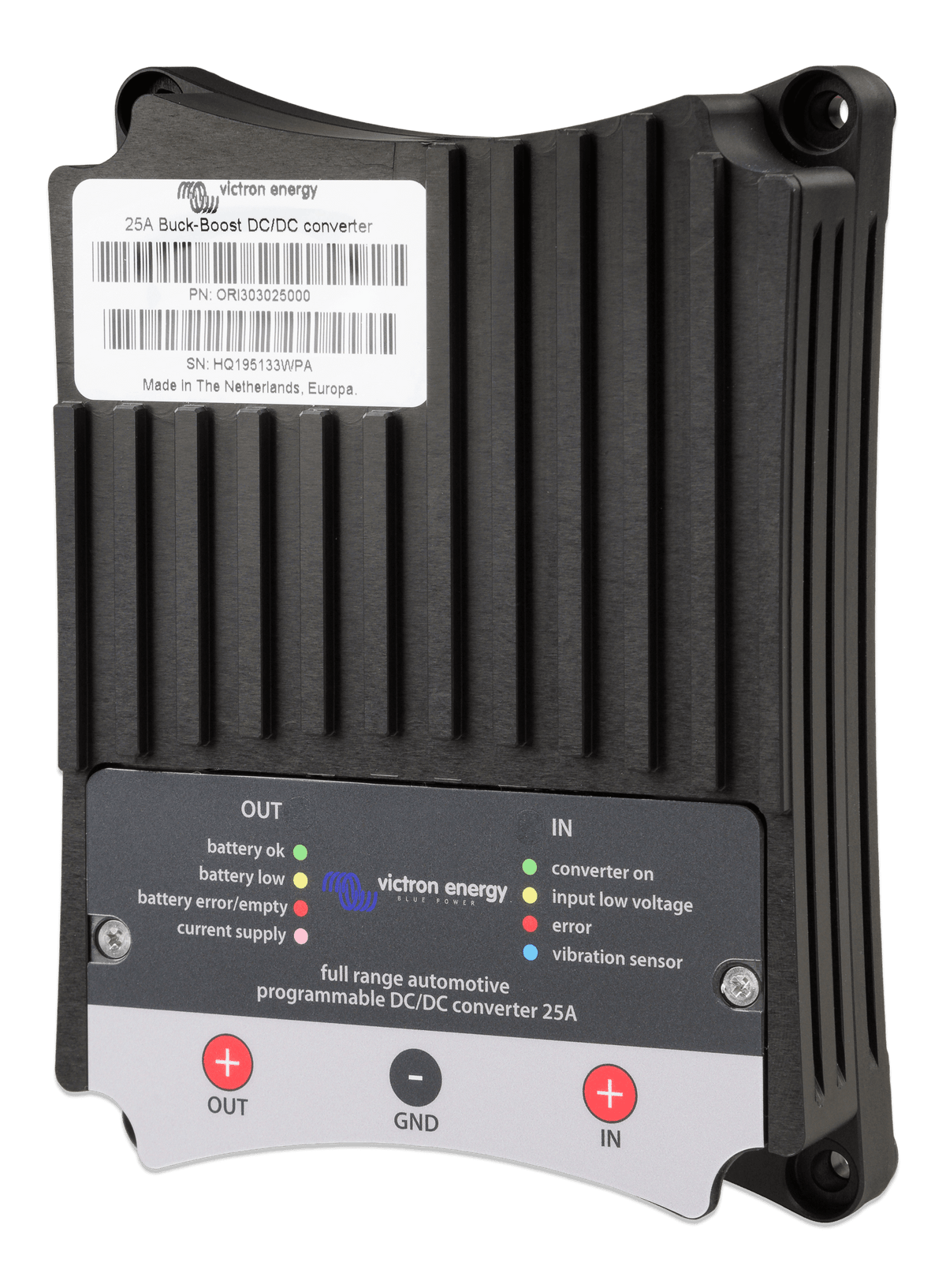

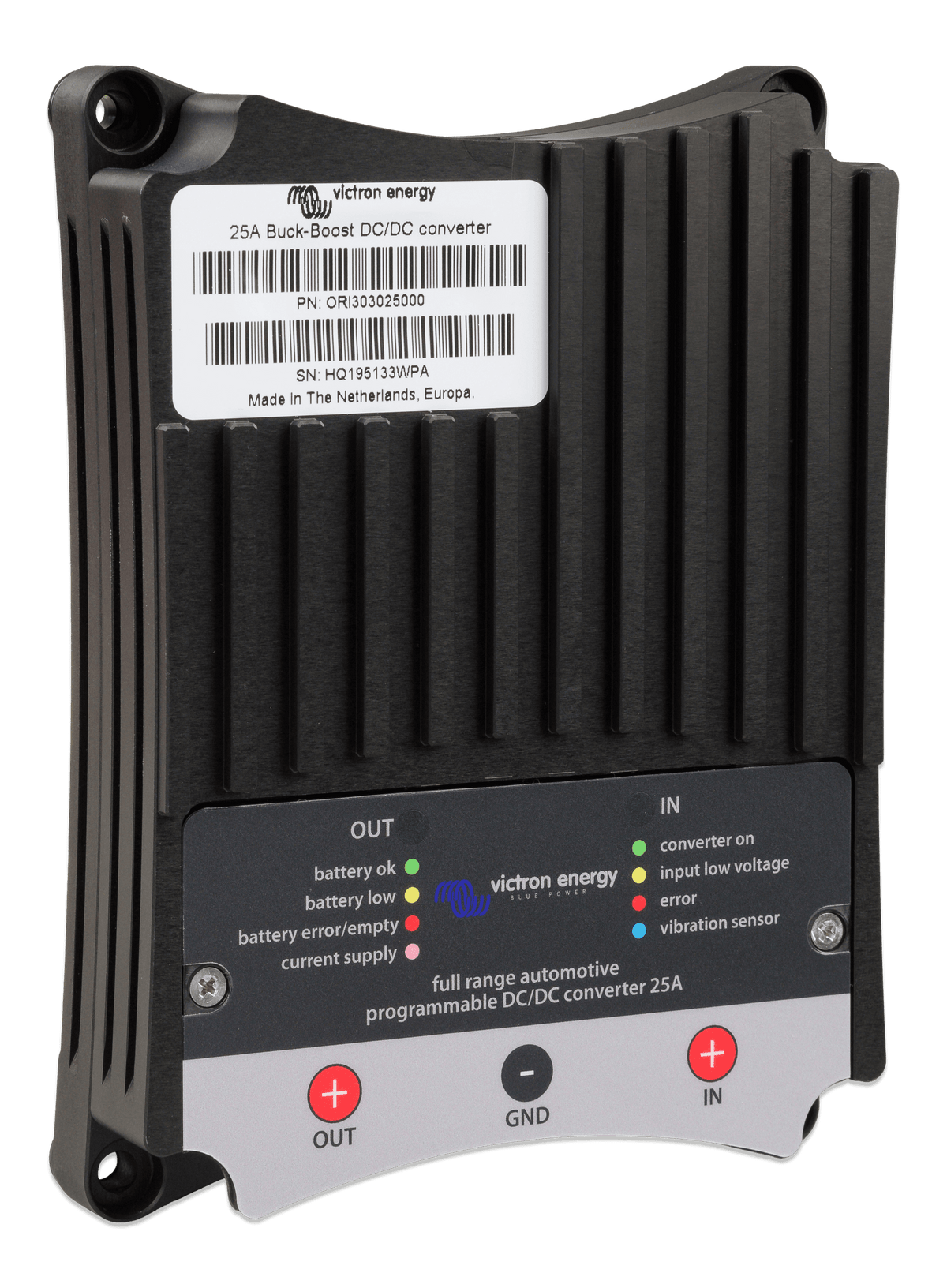

Victron 25A Buck-Boost DC/DC converter
A Victron Buck-Boost DC-DC converter for charging a 12/24V service battery in vehicles with a smart (Euro 6) alternator.
Specifications (from Victron)
| Continuous output current | 25 A |
| Output current fully rated up to | 140°F (60°C) |
| Maximum Output Current 12V | 25 A |
| Maximum Output Current 24V | 15 A |
| Input voltage range | 10–30 V |
| Output voltage range | 10–30 V |
| Under voltage shutdown | 10 V |
| Engine Running Detection | Yes |
| Operating temperature range | -13°F to 140°F (-25 to 60°C) |
| Programmable | Yes |
| Remote on/off terminal | Yes |
| Standby current Consumption | 7 mA |
| Temperature Sensor | Optional (ASS000200100 - CAN-bus Temp. Sensor) |
| DC connection terminal type | M8 bolts |
| Relay Terminal Connection | Screw terminal two pole |
| Material | Aluminium |
| Dimensions (H x W x D) | 6.5 x 4.7 x 1.2 in (165 x 120 x 30 mm) |
| Weight | 1.3 lb (0.6 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | ORI303025000 |
| UPC / EAN | 8719076035909 |
| Country of origin | Netherlands |
Documents
- Buck-Boost DC-DC Converter 25A / 50A / 100A (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.
The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.
