SSS/SSL Sender – SAE 5 Hole Pattern Mount

SSS/SSL Sender – SAE 5 Hole Pattern Mount

Inventory: 0

$67.58 Sale

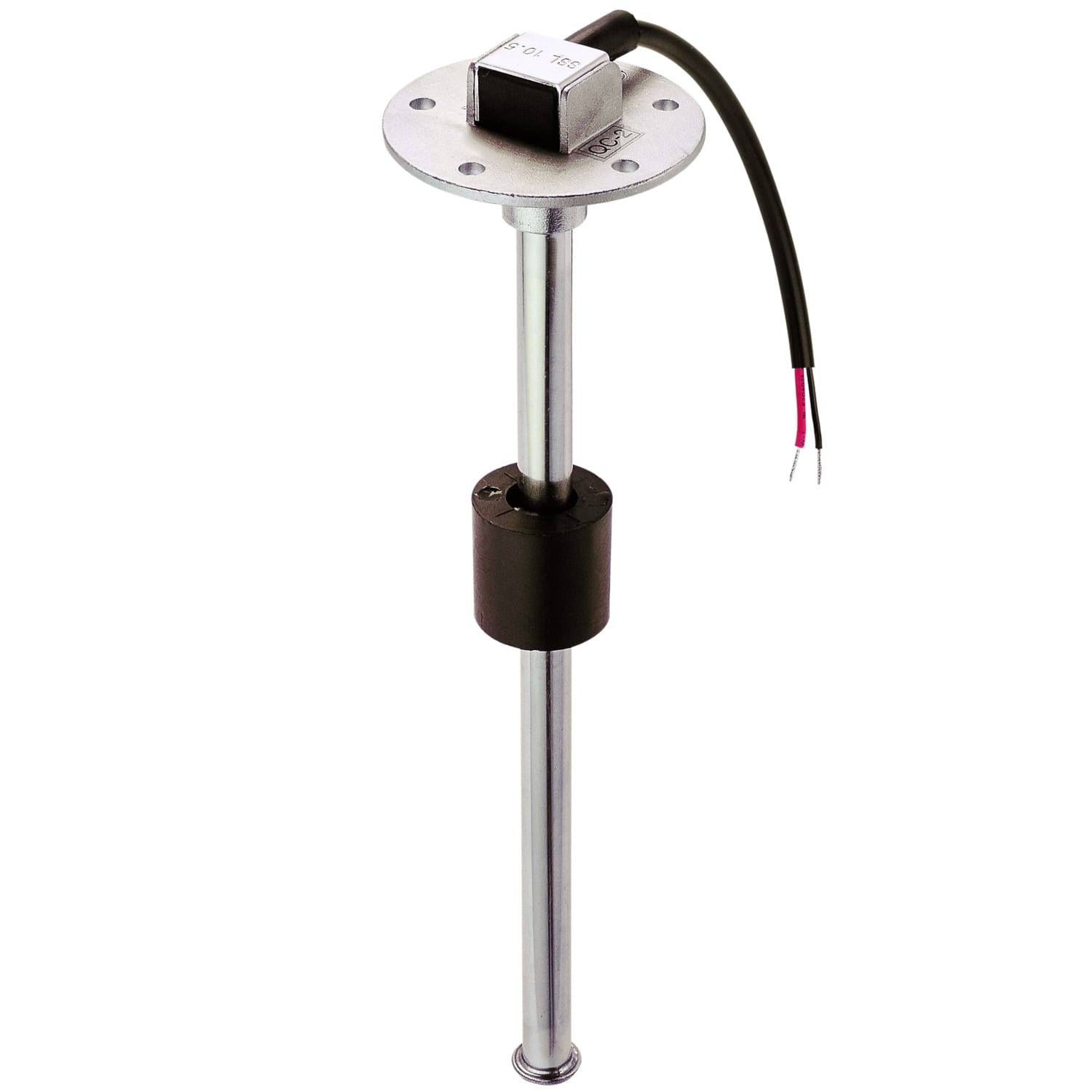

SSS/SSL Sender – SAE 5 Hole Pattern Mount

American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)


Liquid Level Sender with American standard output (240 ohms at empty, 33 ohms at full). It is based in ABYC standard, and are non-linear. For linear output, please contact for custom senders.

Range difference: + / – (R*1.5 % + 1 Ohm)

  • 33 ohm at 100%
  • 67.5 ohm at 75%
  • 105 ohm at 50%
  • 142.5 ohm at 25%
  • 240 ohm at 0%
