Scanstrut Cable Clam/Multi Deck Seal - DS-Multi

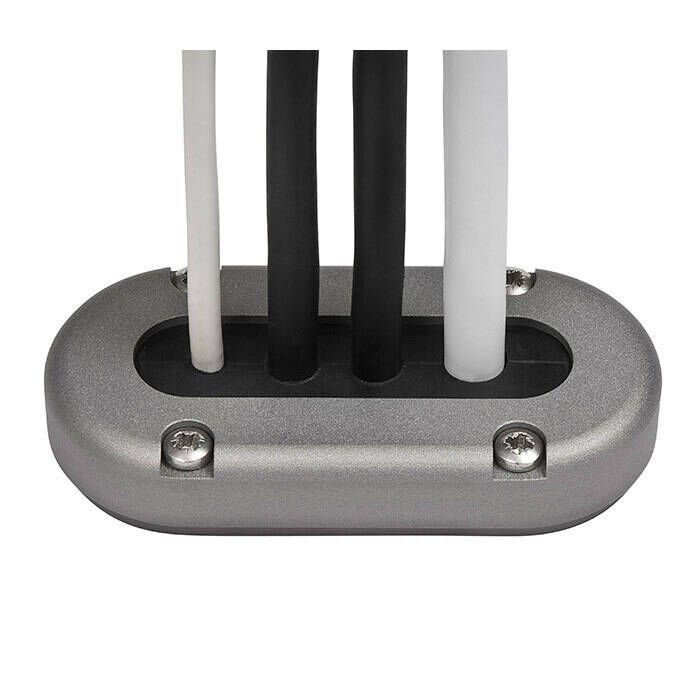

The Scanstrut Cable Clam / Deck Seal (DS-Multi) is an oval shaped, waterproof seal that has a vertical orientation. It fits cable diameters up to 0.59" (15 mm) and will accept connectors up to 1.57" (40mm). It has an aluminum housing that is strong and impact-resistant with captive nuts in the base to make it easy to assemble.

Features:

• Fits cable diameters up to 0.59" (15 mm)
• Will accommodate connectors up to 1.57" (40mm)
• Waterproof:
  • Tapered bung forms a watertight seal
  • Supplied with a closed-cell base seal
  • IPX6 / IPX7 tested and approved
• No need to remove cable connectors:
  • Split-seal option does not require connector removal during install
• Multi-functional shape:
  • Provides a stronger, impact-resistant design
  • Provides additional water shield
• Captive nuts make for easy assembly and allow reliable repeat installations
• Supplied with both pre-drilled and blank inner seals to make installation as easy as possible

Specifications:

• Fits Cable Diameters: Up to 0.59" (15 mm)
• Fits Connector Size: Up to 1.57" (40mm)
• Waterproof: IPX6 / IPX7
• Shape: Oval
• Finish: Anodized
• Orientation: Vertical
• Material: Aluminum
