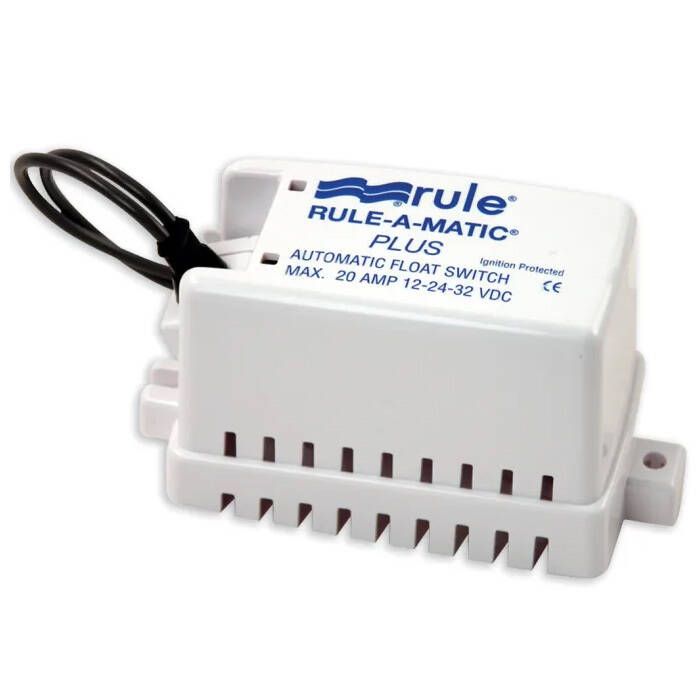

Rule-A-Matic Plus Float Switch

Rule-A-Matic Plus Float Switch

Regular price $55.99 Sale

  • Strong, fully integrated impact-resistant cover protects against debris and jamming
  • Switch turns bilge pump on when water level reaches 2" – turns pump off when water level reaches 3/4"
  • Detachable mounting base makes switch easier to install and remove for cleaning
  • Environmentally friendly mercury-free design
  • Patent-pending snap switch tested to over 1,000,000 cycles @ 12V DC
  • Highly abrasion-resistant marine-grade blocked wire
  • Exclusive moisture-tight seals
  • Can also be used to operate high water alarm systems
  • Simple manual test feature to check for obstructions
  • Ignition protected

Specifications:

  • Nominal Voltage: 12/24/32V DC
  • Current Draw: 20A
    • 12V: 20A
    • 24V: 10A
    • 32V: 6.5A
  • Wire Size: 14 AWG
  • Wire Length: 28"
  • Dimensions: 2-7/8" H x 2-1/2"W x 5-1/4" L

Data Sheet
