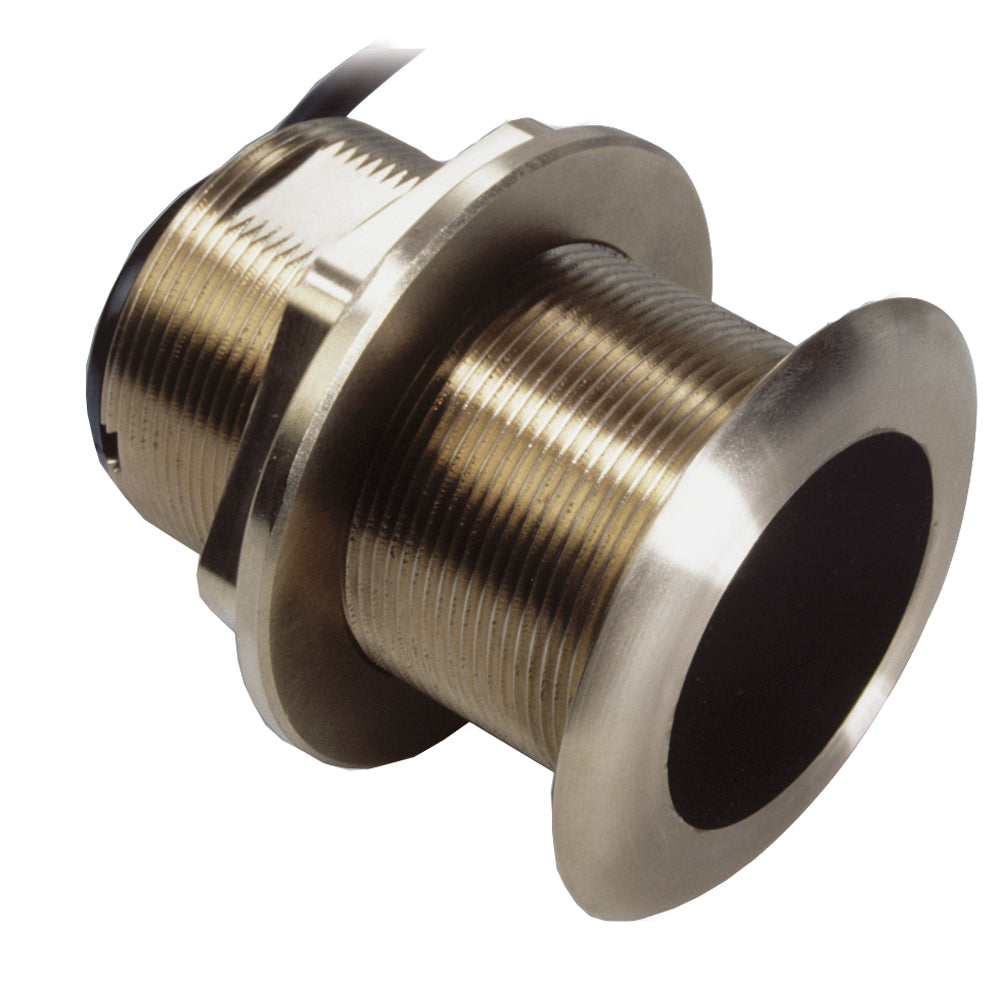

Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 [E66085]
FULFILLMENT OPTIONS
Shipping available
Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 [E66085] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DS...
Raymarine B60-20, 20 Degree Tilted Element Transducer f/DSM300 / DSM300G / DSM250 / DSM30 [E66085] is backordered and will ship as soon as it is back in stock.
Description
Description
B60 Tilted Element 20°
20° titled version is designed for 16° - 24° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Specifications:
- Chirp: No
- Cable Length (Feet): 33'
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Box Dimensions: 2"H x 8"W x 8"L WT: 4.29 lbs
Owner's Manual (pdf)
Brochure (pdf)
