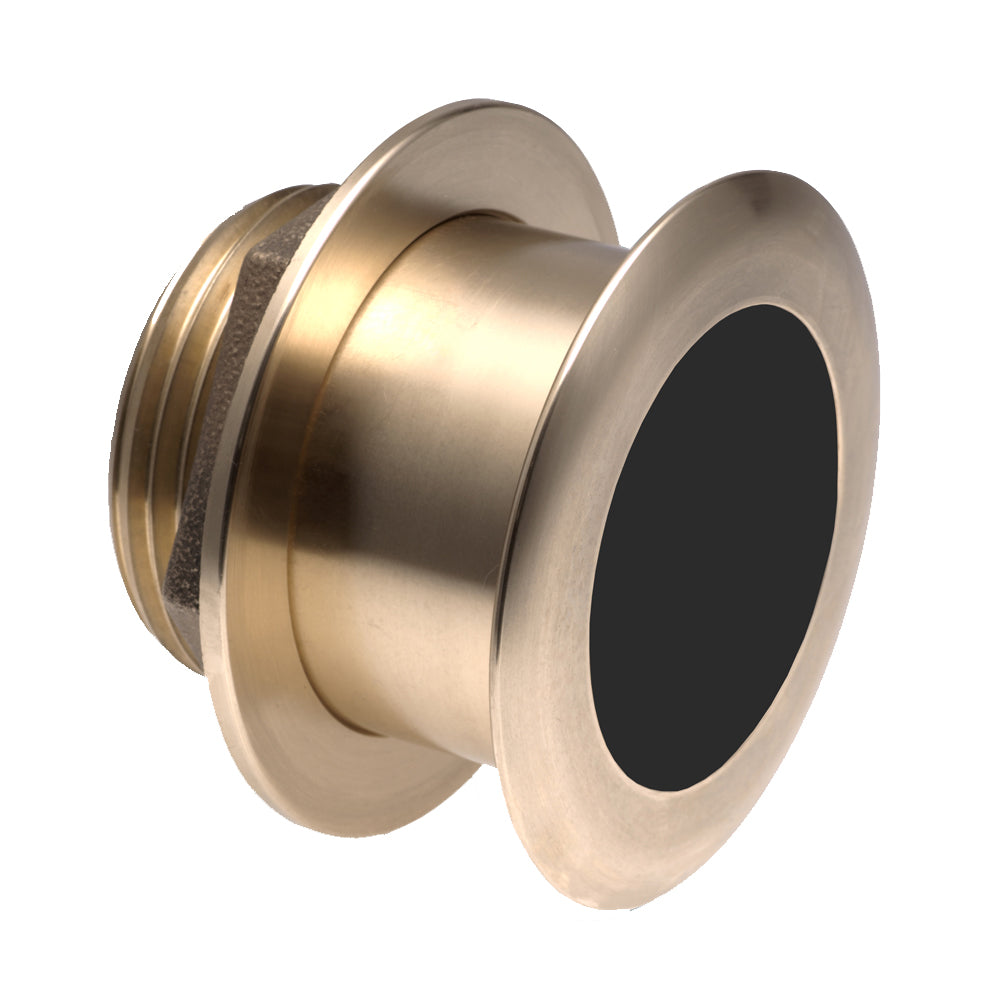

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
FULFILLMENT OPTIONS
Shipping available
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1...
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321] is backordered and will ship as soon as it is back in stock.
Description
Description
B175H-W 1KW Bronze Thru Hull 20° Tilted Element
Installation: Thru Hull
Material: Urethane
Power (RMS): 1kW
Max Depth(ft): 800
Frequency (KHz): 150-250
Records: Depth and Temperature
Approved Hull Material: Fiberglass / Wood
Cable Length (ft/M): 6ft/2m
Supported deadrise: 16-24° Deadrise
ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: High Wide
- Cable Length (Feet): 6'
- Box Dimensions: 9"H x 10"W x 12"L WT: 9.8 lbs
- UPC: 723193796276
