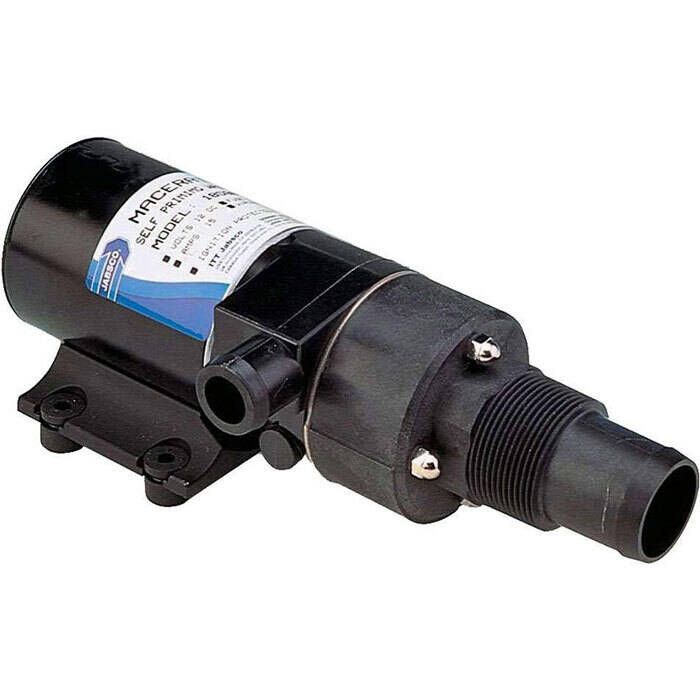

Jabsco 18590 Sealed Macerator Pump with Run-Dry Protection

• The Jabsco 18590 Series DC macerator pump unit is the ideal solution for emptying marine holding tanks when not in a discharge restricted area
• Self priming to 5 feet this pump will empty a typical 30 gallon (115 Liter) holding tank in less than 3 minutes
• Duty cycle of the pump is 15 minutes continuous which means a 180 gallon (680 liter) can be emptied in a single operation
• It is recommended that holding tanks be flushed with several gallons of water after each pump out
• This will reduce the possibility of a continued build up of sediment in the tank which could cause a potential blockage
• The Jabsco Macerator Pump is the ideal pump for the emptying of fish box and livewell receptacles
• Very often the livewell tank will be above the waterline of the boat, when this is the case gravity can be used to empty the livewell tank
• If not installed in this format then it is beneficial to use the Jabsco macerator pump for evacuation due to its self-priming capabilities and also it's grinding properties
• Fish boxes are typically mounted into the floor of the vessel and are very often below the waterline or only partially above the waterline
• Again the Jabsco Macerator pump has the characteristics that lend themselves to this application
• The bait residue particles of ice, fish scales and anything else that could potentially be found in the Fish-Box will be easily passed by the Jabsco Macerator Pump, and the self priming capabilities are perfect for fish box installations common to many of today's sports fishing boats

Specifications:

• Flow Rate: 12 GPM
• Port Size: 1-1/2" inlet ( NPT and Hose Barb options) with 1" Hose Barb Outlet
• Stainless steel 4-blade cutter reduces particle size to 1/8" max
• New Nitrile compound flexible impeller
• Lip-type seal
• Self-priming pump with stainless steel wear plate
• Fully enclosed, permanent magnet-type motor
• Can run dry without damage
• Meets ISO 8846 MARINE ignition protection standards
• Dimensions: 11-9/16" L x 3-1/4" H x 4-11/16" W
• Nominal Voltage: 12V DC
  • Max. Current Draw: 16A
  • Recommended Fuse: 20A
• Nominal Voltage: 24V DC
  • Max. Current Draw: 8A
  • Recommended Fuse: 15A
