FLIR M232 Pan/Tilt Marine Thermal Night Vision Camera - 9Hz (E70354)
FLIR M232 Pan/Tilt Marine Thermal Night Vision Camera - 9Hz (E70354) is backordered and will ship as soon as it is back in stock.
Description
Description

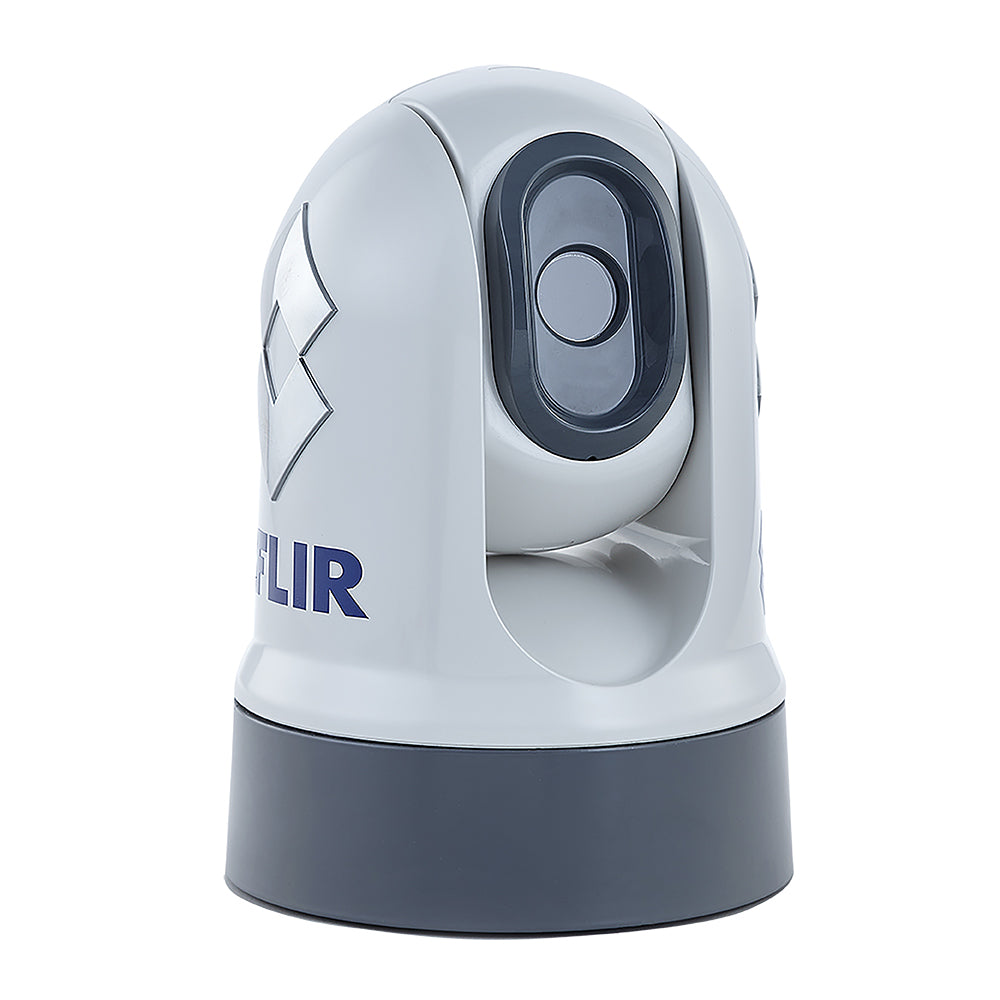

The FLIR M232 lets you see in total darkness. It turns heat into a clear picture on your chartplotter, so you can pick out unlit buoys, crab pots, docks, other boats and a person in the water. It is FLIR's smallest and most affordable pan and tilt marine thermal camera.
Why boaters add an M232
- Safer night runs. See bridges, markers, debris and boats running without lights.
- Man overboard. Thermal finds people in the water faster than spotlights or radar alone.
- Look where you want. 360° continuous pan and +110° / -90° tilt, with 4x digital zoom.
- Simple install. One network cable carries the video (IP), so there are no extra video cables. Runs on 12 or 24 V.
- ClearCruise alerts with a Raymarine Axiom display warn you when a boat or obstacle shows up ahead.
Specifications
| Part number | E70354 |
| Thermal sensor | 320 x 240 VOx microbolometer (FLIR Boson core) |
| Frame rate | 9 Hz |
| Field of view | 24° x 18° |
| Zoom | 4x continuous digital |
| Pan / tilt | 360° continuous / +110°, -90° |
| Video output | H.264 IP stream (Ethernet) |
| Power | 12 or 24 VDC, 15 W typical, 18 W max |
In the box: camera, top-down riser kit, base seal, 32 ft (10 m) right-angle RayNet cable, RayNet to RJ45 adapter, 32 ft (10 m) power cable, stainless mounting hardware. The JCU3 joystick and IP to analog video decoder are sold separately.
Note: ClearCruise is not available when the camera is set to Ball Down or Mirror Image mounting.
