Faria Coral 2" Oil Pressure Gauge, 0-80 PSI [F13002]

Faria's Coral series 2" oil pressure gauge reads 0–80 PSI so you can see at a glance that your engine is holding oil pressure. Low or dropping pressure is often the first warning of low oil, a failing oil pump or a clogged filter — catching it early can save an engine.

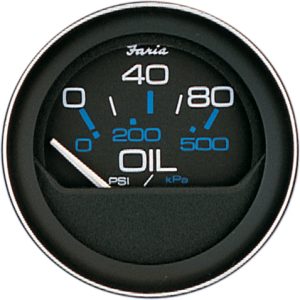

Coral gauges have a black dial with white and blue graphics, a contoured white pointer and a matte black raised aluminum bezel with a brushed silver edge. The dial is lit around the perimeter for night use and shows both imperial (PSI) and metric scales.

How it works

The gauge works with a variable-resistance oil pressure sending unit on the engine. As oil pressure changes, the sender's resistance changes, which changes the current through the gauge and moves the pointer. A sender is required and is not included — use a sender that matches this gauge's range.

Specifications

• Brand: Faria Instruments
• Series: Coral
• Part number: 13002 (factory P/N GP9527)
• Range: 0–80 PSI, dual scale (PSI and metric)
• Gauge size: 2"
• Mounting hole: 2-1/16" (53 mm)
• Lens: Scratch resistant, anti-fog
• Bezel: Black aluminum
• Lighting: Perimeter backlit dial
• UPC: 759266130029

Good to know

• Sold individually. Sender and gauge cover not included.
• Matches the Faria Coral 2" voltmeter (F13010) and 4" Coral tachometer (F33004).
• Fits the standard 2-1/16" hole used by most 2" marine gauges, so it typically replaces an existing gauge without cutting.
