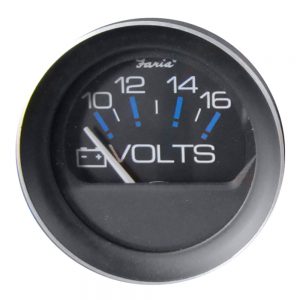

Faria Coral 2" Voltmeter, 10-16 VDC [F13010]

Faria's Coral series 2" voltmeter shows your battery voltage and the general health of your charging system on a 10–16 volt scale. It needs no warm-up and responds to voltage changes instantly, so you can see right away whether your alternator or charger is doing its job — or whether your batteries are running down.

Coral gauges have a black dial with white and blue graphics, a contoured white pointer and a matte black raised aluminum bezel with a brushed silver edge. The dial is lit around the perimeter for night use.

Specifications

• Brand: Faria Instruments
• Series: Coral
• Part number: 13010 (factory P/N VP9106)
• Range: 10–16 VDC (for 12-volt systems)
• Gauge size: 2"
• Mounting hole: 2-1/16" (53 mm)
• Lens: Scratch resistant, anti-fog
• Bezel: Black aluminum
• Lighting: Perimeter backlit dial
• No sender required
• UPC: 759266130104

Reading the gauge

• About 12.6–12.8 V with the engine off means a fully charged 12V battery.
• About 13.5–14.5 V with the engine running means the alternator is charging.
• Readings below about 12 V at rest, or no rise when the engine starts, point to a weak battery or a charging problem.

Good to know

• Sold individually. Gauge cover not included.
• Matches the Faria Coral 2" oil pressure gauge (F13002) and 4" Coral tachometer (F33004).
• Fits the standard 2-1/16" hole used by most 2" marine gauges.
