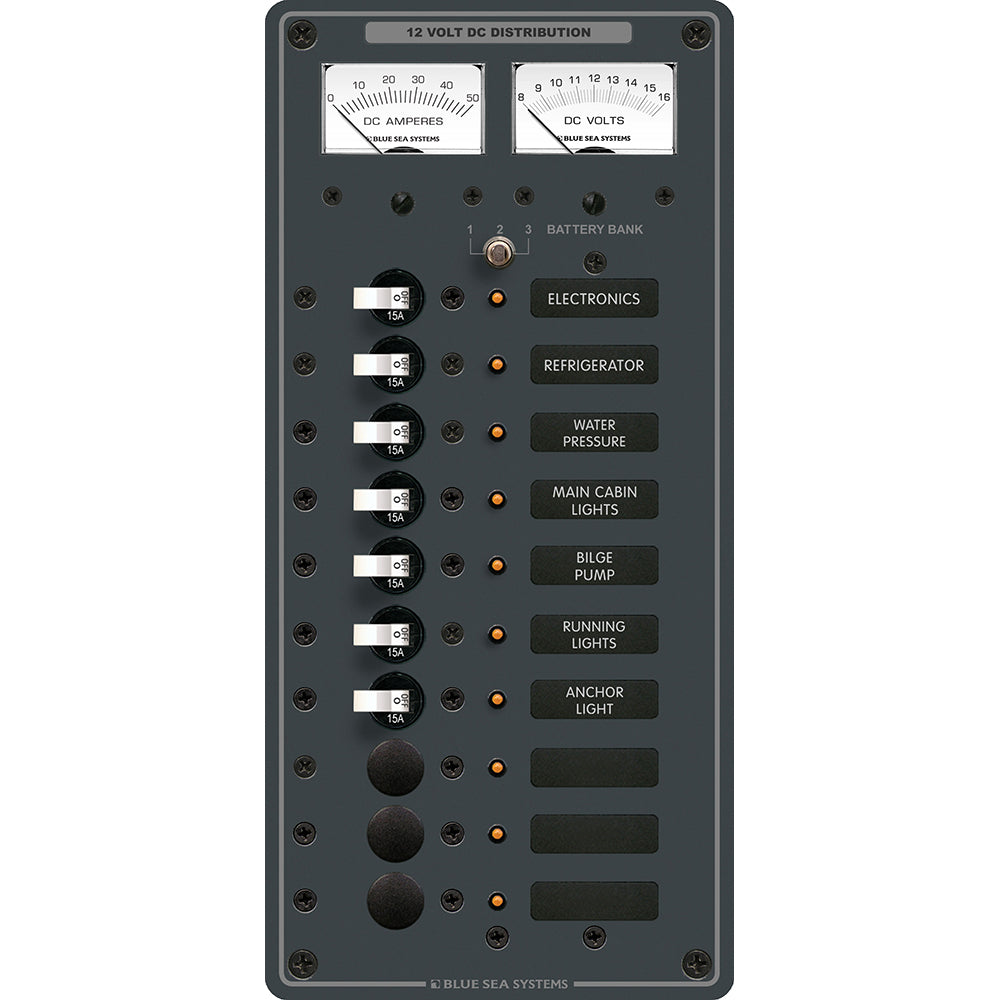

Blue Sea 8082 DC 10 Position Toggle Branch Circuit Breaker Panel [8082]
FULFILLMENT OPTIONS
Ships from warehouse
Blue Sea 8082 DC 10 Position Toggle Branch Circuit Breaker Panel [8082] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Blue Sea 8082 DC 10 Position Toggle Branch Circuit Breaker Panel [8...
Blue Sea 8082 DC 10 Position Toggle Branch Circuit Breaker Panel [8082] is backordered and will ship as soon as it is back in stock.
Description
Description
8082 DC 10 Position Toggle Branch Circuit Breaker Panel
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Includes set of 30 common DC labels
- Label backlighting pre-installed
- All LEDs installed
- Detailed installation instructions and cutout template
- 8028, 8-16 Volt DC Micro Voltmeter
- 8041, 0-50 Amp DC Micro Ammeter
- Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
- 7 15A Single Pole circuit Breakers
Specifications:
- Positions: 10
- Nominal Voltage: 12v DC
- Maximum Amperage: 50A
- Height: 11.25"
- Width: 5.25"
- Depth: 2.5"
- Weight: 3.35 lbs
Included:
- (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
- (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 10
- AC/DC: DC
- Voltage: 12v
- Box Dimensions: 5"H x 10"W x 13"L WT: 3.3 lbs
- UPC: 632085080822
Quick Guide (pdf)
Owner's Manual (pdf)
