Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black [6011200]
FULFILLMENT OPTIONS
Shipping available
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black [6011200] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black ...
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black [6011200] is backordered and will ship as soon as it is back in stock.
Description
Description

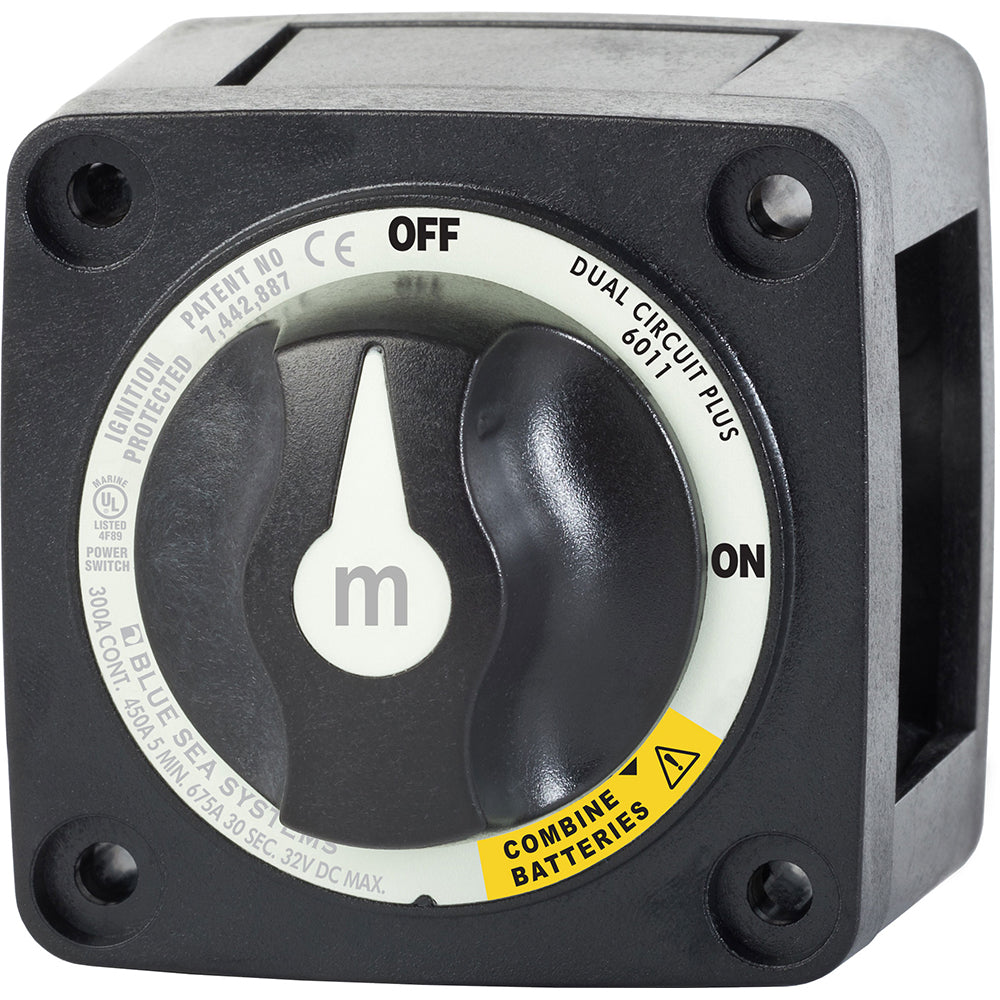

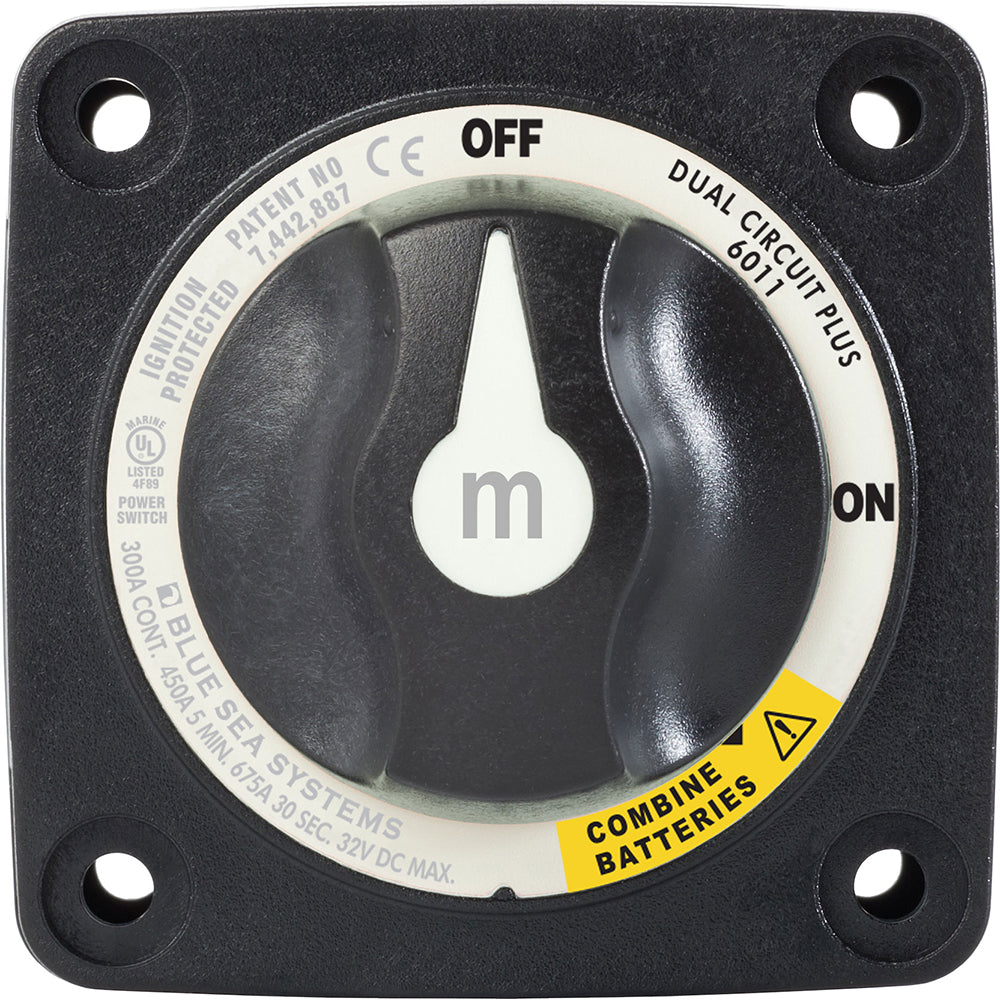

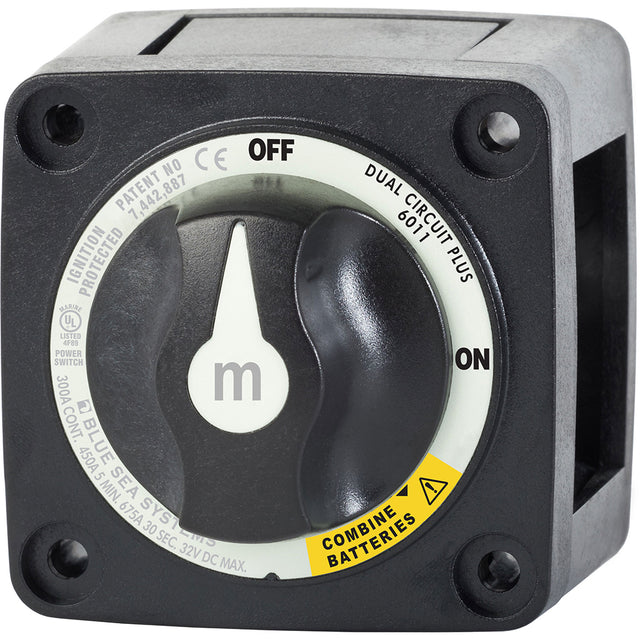

m-Series Mini Dual Circuit Plus Battery Switch - Black
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus
Color: Black
Switch Positions: 3
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A

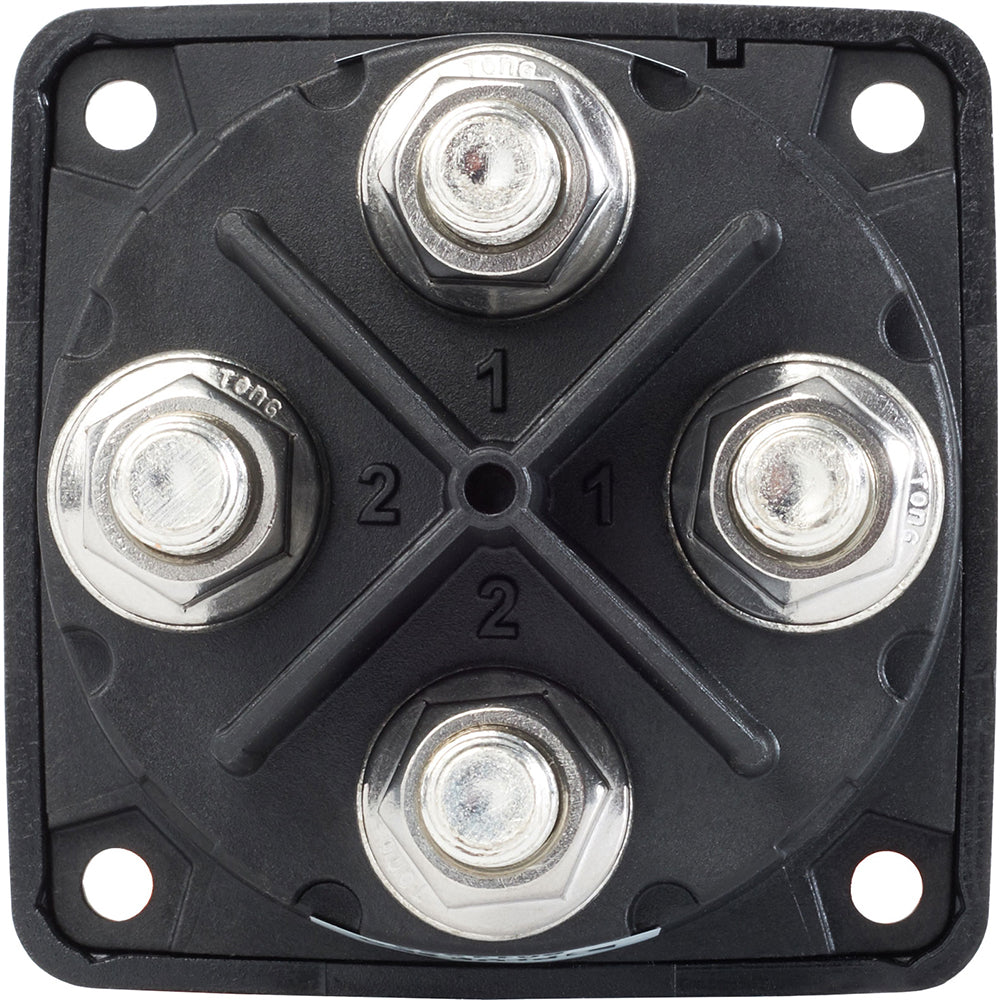

Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AFD: No
- Positions: 3
- Continuous Amperage: 300a
- Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
- UPC: 632085601126
Owner's Manual (pdf)
