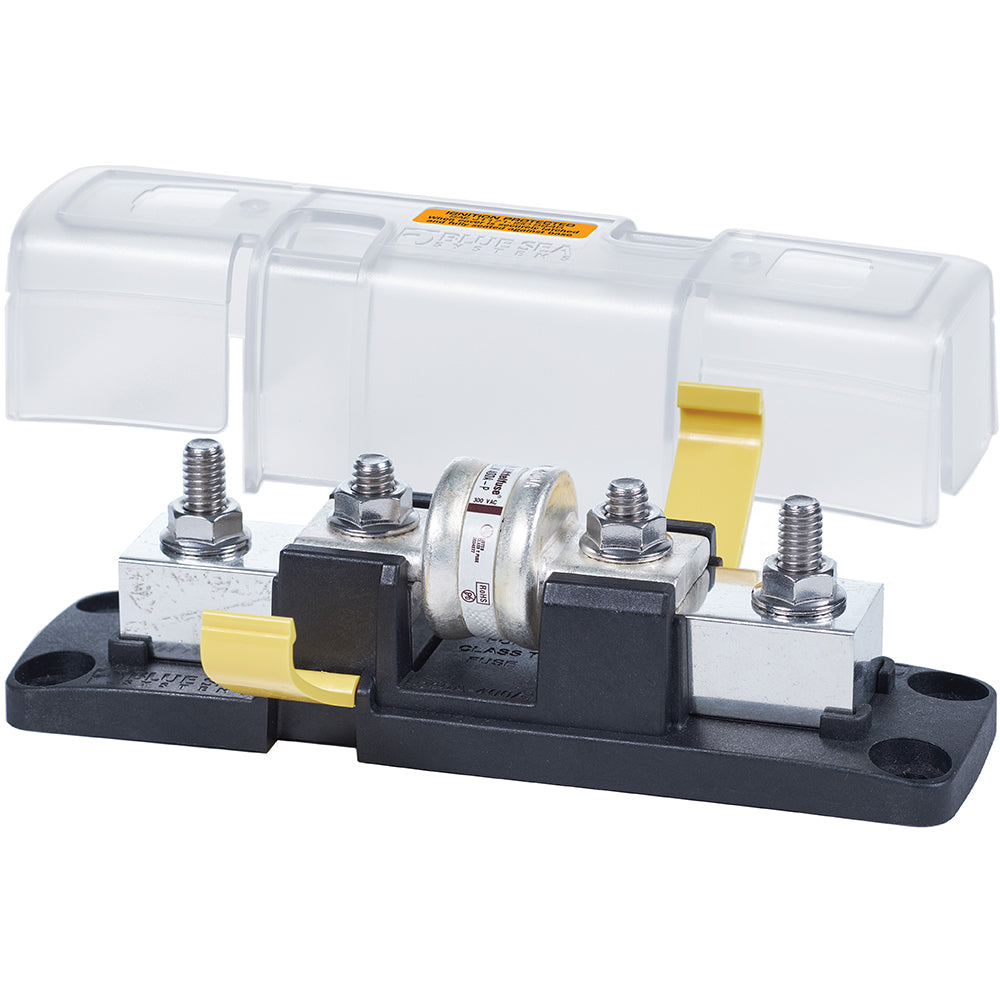

Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A [5502100]
FULFILLMENT OPTIONS
Pickup and shipping available
Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A [5502100] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup available at Marathon Storefront
Usually ready in 24 hours
- Expert technical support
- Secure checkout
- Fast shipping
- Local pickup
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400...
Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A [5502100] is backordered and will ship as soon as it is back in stock.
Description
Description
Class T Fuse Block with Insulating Cover - 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Technical Specifications:
- Cable Size: Up to 4/0 AWG
- Ignition Protected: Yes
- Maximum Amperage: 320A
- Maximum Voltage: 160V DC
- Fuse Mounting Blocks: Tin-Plated Copper
- Terminal Stud Size: 5/16"-18 (M8)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Fuse Type: Class T
- Type: Fuse Blocks
- Box Dimensions: 3"H x 8"W x 8"L WT: 1.8 lbs
- UPC: 632085550219
