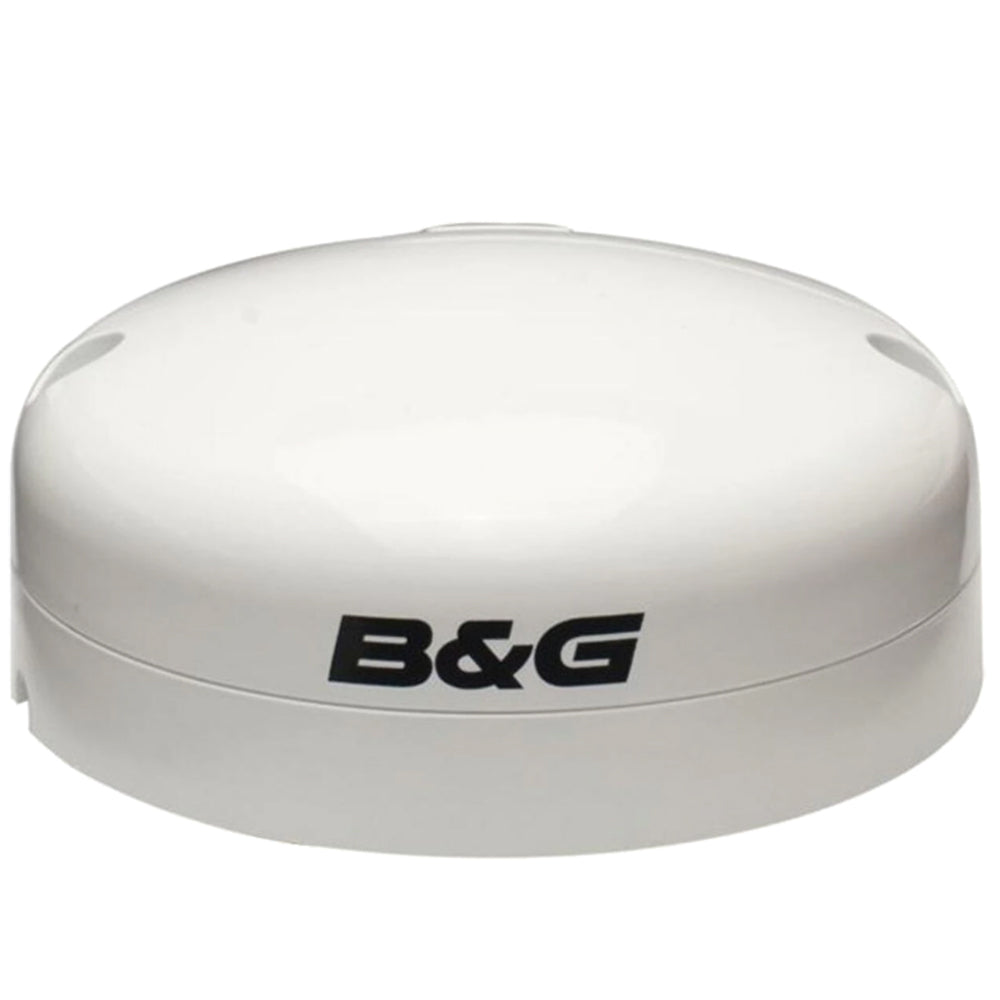

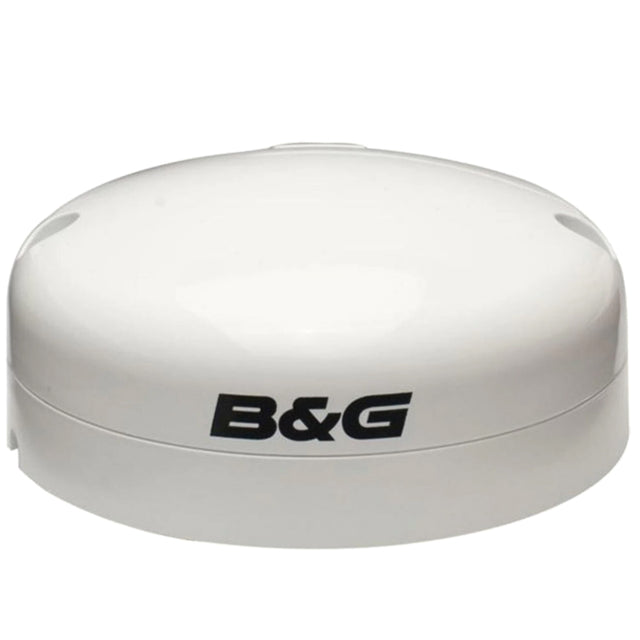

BG ZG100 GPS Antenna [000-11048-002]
FULFILLMENT OPTIONS
Shipping available
BG ZG100 GPS Antenna [000-11048-002] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
BG ZG100 GPS Antenna [000-11048-002]
BG ZG100 GPS Antenna [000-11048-002] is backordered and will ship as soon as it is back in stock.
Description
Description
ZG100 GPS Antenna
The B & G ZG100 GPS antenna provides precise and dependable position data making it the perfect partner for B & G chartplotters and instrument systems.
The highly accurate 10 Hz GPS gives a precise and smooth update of position information during acceleration and maneuvering, rapid signal acquisition, and consistent position accuracy augmented by secondary satellite systems like WAAS, EGNOS, MSAS, and Galileo. It is also QZSS-ready.
Features:
- Highly accurate position
- 10Hz update rate
- Sail Specific COG/SOG filtering for optimum performance
- GPS/Galileo support
- Augmented with WAAS, EGNOS, and more
- Integrated heading sensor
- Heel & Trim sensors
- Compact, waterproof (IP67) design
- NMEA 2000®
What's in the Box?
- N2K-T-RD Network T-Connector
- NMEA 2000 6ft Network Extension Cable
Specifications:
- Waterproof rating: IPX-7
- Dimensions: Diameter3.54" (90mm)
- Weight: 0.30 lbs (0.14 kg)
- Operating Temperature Range: -13°F to 149°F (-25°C to 65°C)
- Compass Safe: 21.00" (518mm)
- Storage Temperature Range: -22°F to 158°F (-30°C to 70°C)
- Dimensions: W x H x D3.54" (90mm) x 1.50" (38mm)
- Warranty Period: 5 Years
- Supply Voltage: 9v-18v
- NMEA 0183 Sentences supported: no
- NMEA 2000 Connectivity: Yes
