Anchor Shackle Stainless
Anchor Shackle Stainless - 3/16 is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

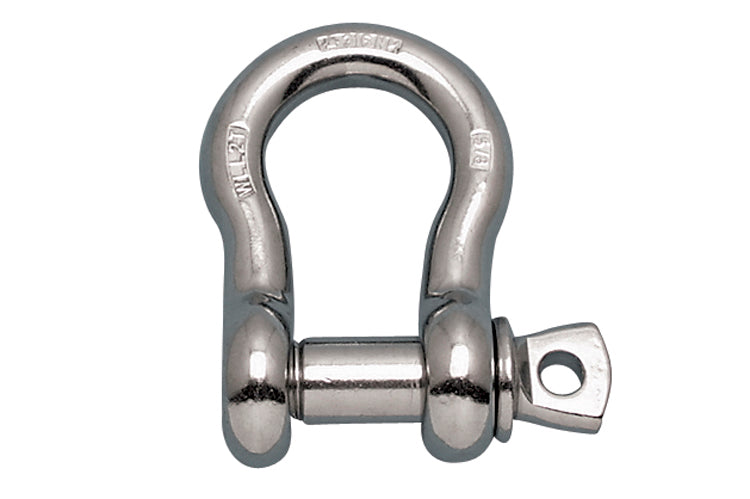

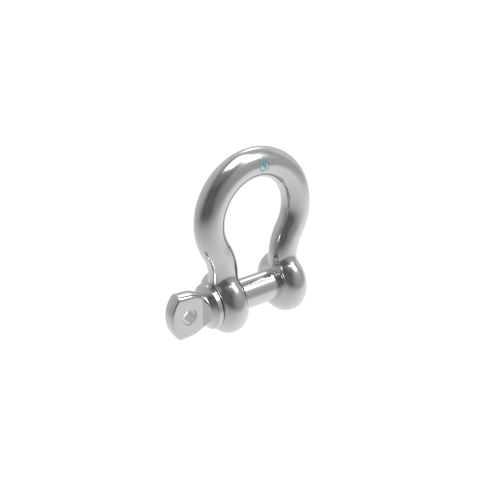

This Anchor Shackle is made from grade 316-NM stainless steel and features an oversize screw pin. The stainless steel Anchor Shackle is ideal for salt water applications. The Anchor Shackle is primarily used to connect the anchor to the chain.

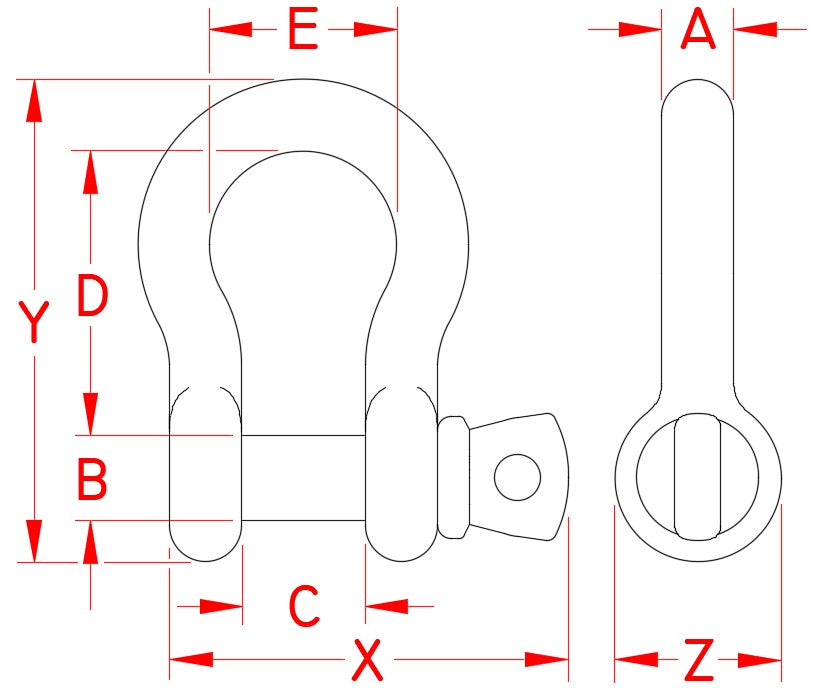

| ITEM | A (size) |
B | C | D | E | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| S0116-FS05* | 3/16″ | 0.26″ | 0.41″ | 0.83″ | 0.61″ | 1.25″ | 1.43″ | 0.53″ | 650 | 0.06 |
| S0116-FS07 | 1/4″ | 0.31″ | 0.47″ | 1.11″ | 0.75″ | 1.56″ | 1.80″ | 0.61″ | 1,000 | 0.10 |
| S0116-FS08 | 5/16″ | 0.38″ | 0.53″ | 1.20″ | 0.80″ | 1.84″ | 2.06″ | 0.73″ | 1,300 | 0.16 |
| S0116-FS10 | 3/8″ | 0.44″ | 0.66″ | 1.41″ | 1.00″ | 2.26″ | 2.42″ | 0.92″ | 1,500 | 0.29 |
| S0116-FS12 | 7/16″ | 0.50″ | 0.72″ | 1.77″ | 1.10″ | 2.89″ | 2.50″ | 1.01″ | 2,000 | 0.42 |
| S0116-FS13 | 1/2″ | 0.63″ | 0.82″ | 1.83″ | 1.20″ | 2.90″ | 3.20″ | 1.17″ | 3,000 | 0.67 |
| S0116-FS16 | 5/8″ | 0.75″ | 1.02″ | 2.41″ | 1.60″ | 3.41″ | 4.18″ | 1.46″ | 4,000 | 1.27 |
| S0116-FS20 | 3/4″ | 0.88″ | 1.25″ | 2.84″ | 1.90″ | 4.90″ | 3.90″ | 1.74″ | 6,000 | 2.11 |
| S0116-FS22 | 7/8″ | 1.00″ | 1.48″ | 3.30″ | 2.20″ | 5.75″ | 4.78″ | 1.92″ | 8,000 | 3.23 |
| S0116-FS25 | 1″ | 1.13″ | 1.70″ | 3.80″ | 2.60″ | 5.35″ | 6.44″ | 2.20″ | 10,000 | 4.62 |
| S0116-FS32 | 1-1/4″ | 1.38″ | 2.03″ | 4.69″ | 3.20″ | 6.69″ | 7.85″ | 2.77″ | 14,000 | 9.58 |
*Meets the requirements of MIL-DTL-32655 (excluding S0116-FS05)
