70.4V (72V) 105ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
70.4V (72V) 105ah Golf Cart Battery Complete Kit - Lithium (LiFePO4) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Maximize your 72V golf cart's range and top speed with the Epoch 105Ah lithium conversion kit. Enjoy a drop-in install, zero maintenance, and fast charging.
Features
- 7.39kWh in one stainless steel case
- 250A continuous with 500A (15 s) and 1,000A (2 s) peaks
- Regenerative-braking charging up to 500A for 15 s
- Bluetooth gauge and Epoch Li-Ion app with over-the-air updates
- IP67 enclosure
- Advanced BMS with cell balancing
- 3,500+ cycle life
- 11-year limited warranty
Specifications
| Epoch part number | BB72105A-Kit |
| Electrical | |
|---|---|
| Capacity | 105Ah (7,392Wh) |
| Nominal voltage | 70.4V |
| Max charge voltage | 79.2V |
| Operating voltage range | 55.0V to 79.2V |
| Max continuous discharge | 250A |
| Peak discharge | 500A for up to 15 s; 1,000A for up to 2 s |
| Max continuous charge | 100A |
| Series / parallel | No series connection; up to 2 in parallel (210Ah) |
| Cells | Prismatic LiFePO4, 22S1P |
| Cycle life | 3,500+ cycles |
| Charger settings | |
| Bulk / absorption | 78.1V to 79.2V |
| Float | Disabled (preferred) or 73.3V to 74.8V |
| Equalization | Disabled |
| Temperature | |
| Charging | 32°F to 131°F (0°C to 55°C) |
| Discharging | 14°F to 131°F (-10°C to 55°C) |
| Storage | 32°F to 95°F (0°C to 35°C) recommended, up to 12 months |
| Self-heating | No |
| Physical | |
| Weight | 132 lb (60 kg) |

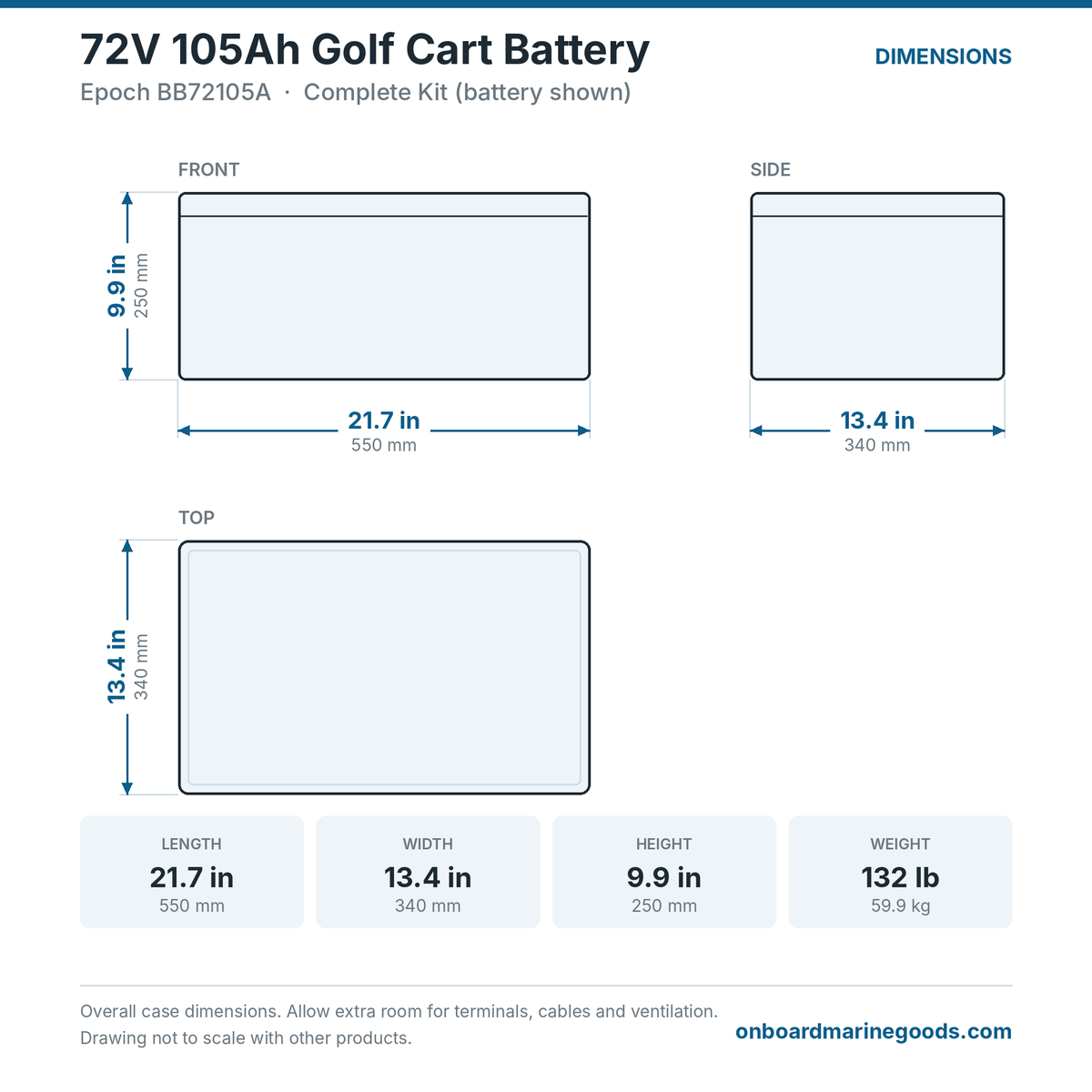

| Dimensions (L × W × H) | 21.7 × 13.4 × 9.9 in (550 × 340 × 250 mm) |
| Terminals | M8 female |
| Water resistance | IP67 (temporary immersion to 1 m for 30 min; do not pressure-wash) |
| Bluetooth | Yes (Epoch Li-Ion app, OTA updates) |
| Communications | Bluetooth; communication port on battery |
| Warranty | 11 years |
| Kit includes | |
| Battery | 72V 105Ah LiFePO4 battery |
| Charger | 72V 15A lithium charger, about 7 h from empty |
| Gauge | Battery gauge (charge, voltage, current, temperature, status) |
| 12V converter | DC-DC 12V converter (output rating not stated) |
| Not included | Mounting brackets, cables, main fuse or DC-rated breaker, terminal hardware |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
