48V 30Ah (1.54kWh) GC2 - Golf Cart LiFePO4 Lithium Battery
48V 30Ah (1.54kWh) GC2 - Golf Cart LiFePO4 Lithium Battery is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
48V 30Ah (1.54kWh) GC2 - Golf Cart LiFePO4 Lithium Battery is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Upgrade to the Epoch 48V 30Ah GC2 LiFePO4 battery. A true drop-in lithium replacement for your golf cart with smart BMS, Bluetooth, and 11-year warranty.
Features
- Drop-in GC2-footprint 48V module; up to 10 in parallel (300Ah)
- IP67 enclosure
- Bluetooth app monitoring (Epoch Pro app, per product page)
- CAN communications port
- BMS with overcharge, over-discharge, over-current, short-circuit and temperature protection
- 4,000+ cycles
- UL 2271 pack listing; 11-year warranty (product page)
Specifications
| Epoch part number | 48V-30AH-GC2 |
| Electrical | |
|---|---|
| Capacity | 30Ah (1,536Wh) at 0.2C |
| Nominal voltage | 51.2V |
| Max charge voltage | 57.6V |
| Operating voltage range | 40.0V to 57.6V (product page); load cut-off 40.0V to 44.5V (datasheet) |
| Max continuous discharge | 60A (30A recommended) |
| Peak discharge | Under 100A for 10 s (datasheet); product page also lists 200A for 3 s |
| Max continuous charge | 30A |
| Recommended charge current | 20A |
| Series / parallel | Up to 10 in parallel (300Ah); series not supported (product page) |
| Cells | LiFePO4, 16S (product page) |
| Cycle life | 4,000+ cycles at 90% DoD to 60% of initial capacity (datasheet) |
| Charger settings | |
| Bulk / absorption | 57.6V (datasheet); product page standard charge 55.2V to 57.6V |
| Float | 55.2V |
| Temperature | |
| Charging | 32°F to 131°F (0°C to 55°C) |
| Discharging | −4°F to 131°F (−20°C to 55°C) per product page; datasheet operating range 32°F to 131°F (0°C to 55°C) |
| Storage | 32°F to 86°F (0°C to 30°C) up to 6 months; 14°F to 113°F (−10°C to 45°C) up to 3 months |
| Physical | |
| Weight | 33 lb (approx. 15 kg) |

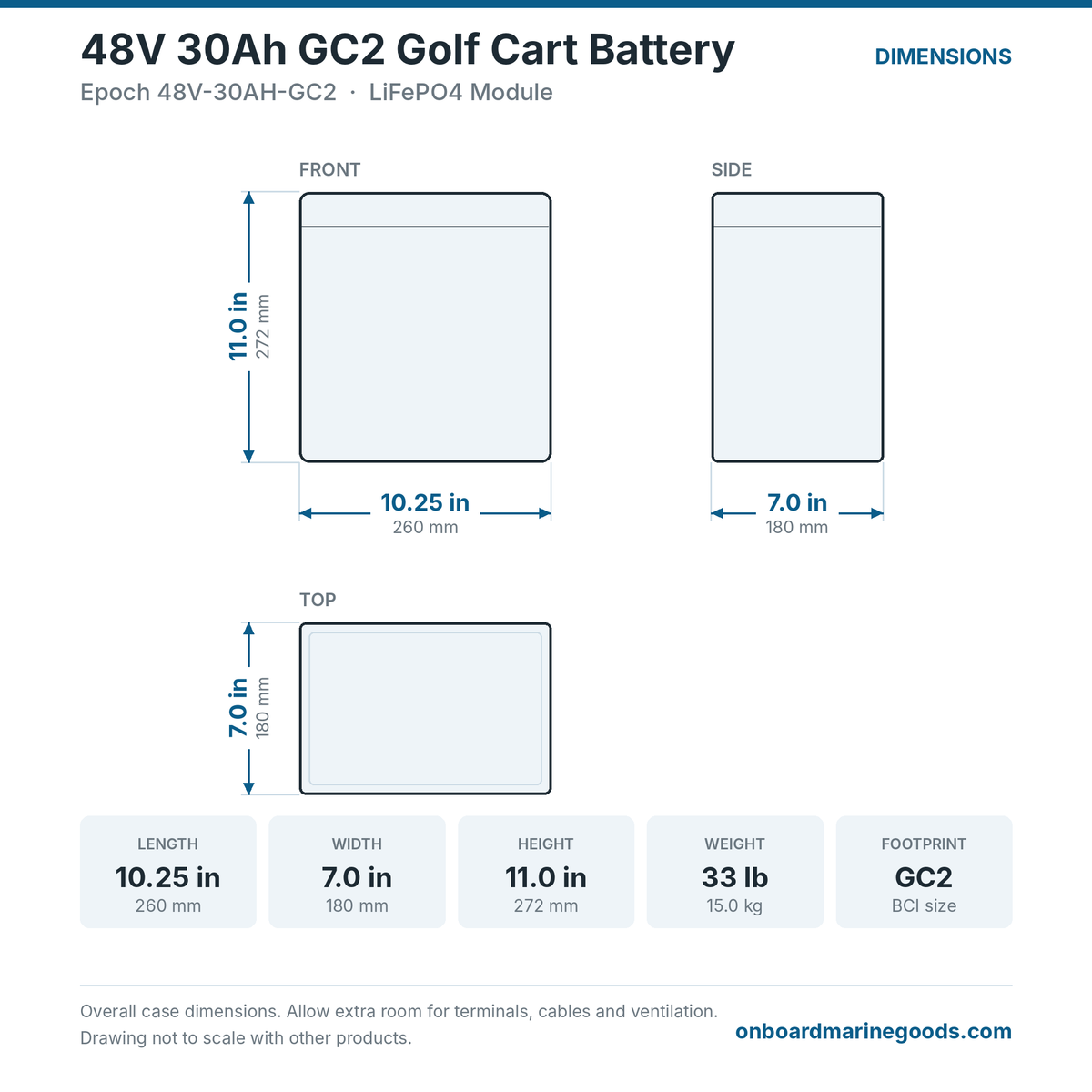

| Dimensions (L × W × H) | 10.25 × 7.0 × 11.0 in (260 × 180 × 272 mm) |
| BCI group / footprint | GC2 |
| Terminals | M8; torque 8–12 Nm (product page) |
| Water resistance | IP67 (dust-tight; temporary immersion to 1 m for 30 min; not rated for water jets or pressure washing) |
| Bluetooth | Bluetooth app (Epoch Pro app) per product page; datasheet lists 'Bluetooth/WIFI /' |
| Communications | CAN/RS485 port (datasheet); CANBus (product page) |
| Certifications | Pack: UL 2271, CE, UN 38.3; cells: UL 1642, UL 2580, UN 38.3 (product page) |
| Warranty | 11 years (product page) |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
