48V 230Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
48V 230Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Upgrade your range with the Epoch 48V 230Ah Lithium Golf Cart Battery Kit. This complete LiFePO4 bundle includes a 22A charger & 12V converter. Shop now!
Features
- Single-battery 48V conversion with onboard 22A charger, gauge, remote switch and 12V converter
- 300A continuous, 500A for 15 s and 1,000A for 2 s discharge; 500A regen peak
- Bluetooth gauge and Epoch Li-Ion app with over-the-air updates
- Fused, key-switched 25A 12V accessory converter
- IP67 stainless steel case
- BMS with cell balancing and low-charge buzzer/gauge warning below 20% SOC
- 4,000+ cycles
- 11-year limited warranty
Specifications
| Epoch part number | BB51230A-Kit-1 |
| Electrical | |
|---|---|
| Capacity | 230Ah (11,776Wh / 11.78kWh) |
| Nominal voltage | 51.2V (48V class) |
| Max charge voltage | 58.4V |
| Operating voltage range | 40V to 58.4V |
| Max continuous discharge | 300A (1.3C) |
| Peak discharge | 500A for up to 15 s; 1,000A for up to 2 s |
| Max continuous charge | 230A (1C) |
| Peak charge (regen) | 500A for up to 15 s |
| Series / parallel | Series not supported; up to 2 in parallel (460Ah) |
| Cells | Prismatic LiFePO4, 16S1P |
| Cycle life | 4,000+ cycles |
| Charger settings | |
| Absorption end | 11.5A tail current (C/20) |
| Recharge restart | Below about 95% SOC if still connected |
| Charge time | About 10.5 h from empty with the included 22A charger |
| Temperature | |
| Charging | 32°F to 131°F (0°C to 55°C) |
| Discharging | 14°F to 131°F (−10°C to 55°C) per datasheet (product page says −4°F to 140°F / −20°C to 60°C) |
| Storage | −4°F to 131°F (−20°C to 55°C) up to 1 month; 32°F to 95°F (0°C to 35°C) recommended, up to 12 months |
| Self-heating | No (no internal heater) |
| Physical | |
| Weight | 196 lb (89 kg) |

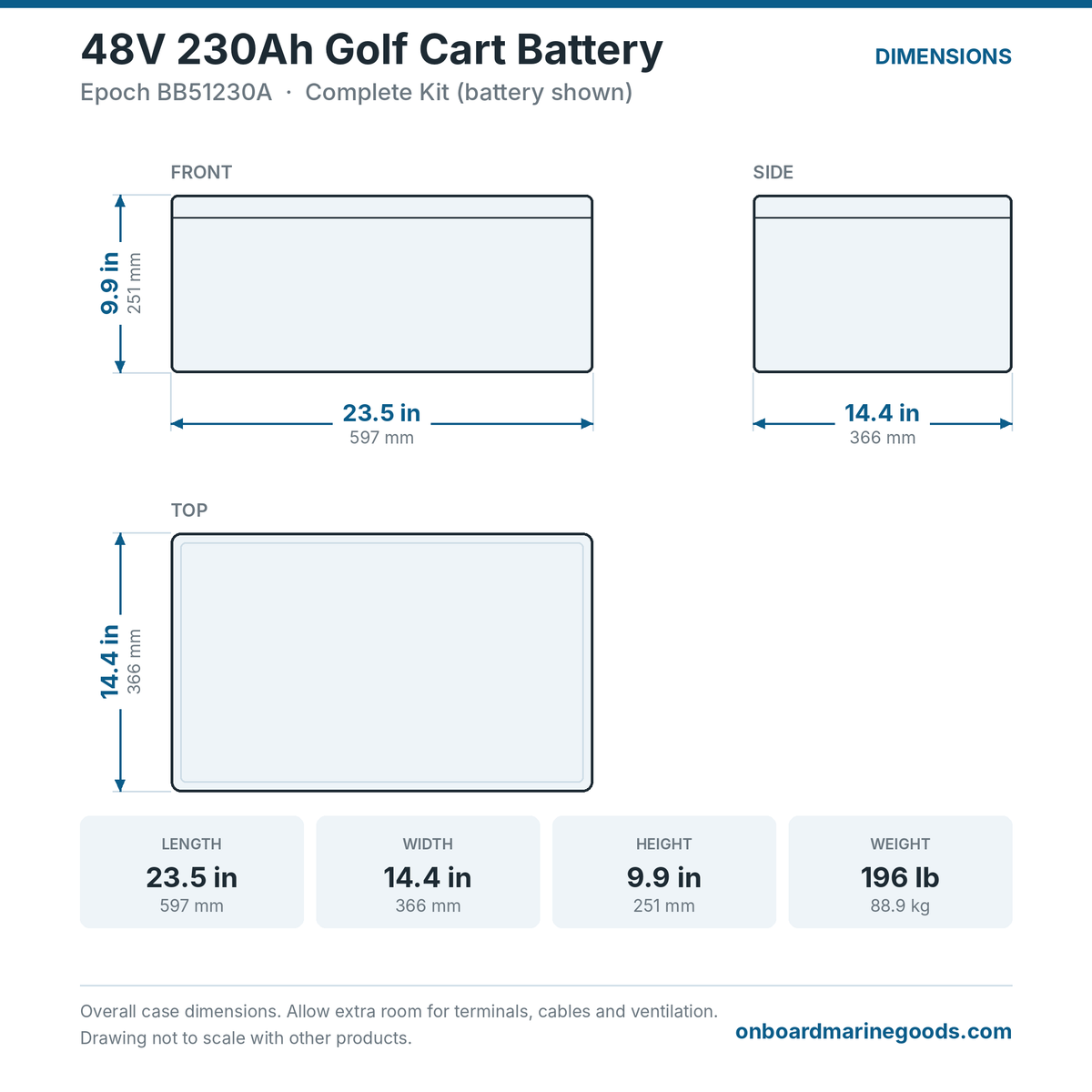

| Dimensions (L × W × H) | 23.5 × 14.4 × 9.9 in (597 × 366 × 251 mm) |
| Case | Stainless steel |
| Terminals | Positive and negative terminals on the battery lid (type and torque not stated) |
| Water resistance | IP67 (dust-tight; temporary immersion to 1 m for 30 min; not rated for water jets or pressure washing) |
| Bluetooth | Yes, Epoch Li-Ion app (iOS and Android) with over-the-air updates |
| Communications | Communication port; product page links a BMS-CAN protocol document |
| Warranty | 11-year limited |
| Kit includes | |
| Battery | 48V 230Ah LiFePO4 (BB51230A) |
| Charger | 48V 22A onboard lithium charger, powered through the cart's charge port from a 120V outlet |
| Extension cord | 10 ft heavy-duty (cart port to 120V outlet) |
| Battery gauge | Digital Bluetooth gauge (dash mount) |
| Remote switch | 6 ft remote on/off switch with wiring harness (13 ft harness sold separately) |
| 12V converter | Fused 48V to 12V DC-DC, 25A (input 40–90V, output 13.5V, key-on wire) |
| Charge port plug | Cart-specific, replaces the factory lead-acid receptacle |
| Not included | Mounting brackets / hold-down hardware (datasheet) |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
