48V 150Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
Pickup available at our Marathon storefront
Available for pickup or shipping
48V 150Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4) is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup available at Marathon Storefront
Usually ready in 24 hours
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
48V 150Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
48V 150Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
48V 150Ah Golf Cart Battery Kit supports longer operation, dependable power delivery, and simplified installation for compatible carts.
Features
- Complete conversion kit: battery, charger, extension cord, gauge, remote switch, DC converter, charge port plug and brackets
- One battery replaces a full 8V or 12V lead-acid bank
- 300A continuous, 1,000A for up to 2 seconds for acceleration and hills
- Supports regenerative-braking charging (500A for up to 15 seconds)
- Bluetooth gauge and Epoch Li-Ion app show charge, voltage, current, temperature and warnings, with over-the-air firmware updates
- Key-switched 48V-to-12V converter powers lights, radios and USB outlets
- IP67 stainless steel case
- BMS protection with cell balancing
Specifications
| Epoch part number | BB51150A-Kit-1 |
| Electrical | |
|---|---|
| Capacity | 150Ah (7,680Wh) |
| Nominal voltage | 51.2V (48V class) |
| Max charge voltage | 58.4V |
| Operating voltage range | 40V to 58.4V |
| Max continuous discharge | 300A (2C) |
| Peak discharge | 500A for up to 15 seconds; 1,000A for up to 2 seconds |
| Max continuous charge | 150A (1C); 500A for up to 15 seconds regen |
| Series / parallel | No series connection; up to 2 in parallel (300Ah) |
| Cells | Prismatic LiFePO4, 16S1P |
| Cycle life | 4,000+ cycles |
| Charger settings | |
| Included charger | 48V 22A onboard lithium charger, about 7 hours from empty |
| Temperature | |
| Charging | 32°F to 131°F (0°C to 55°C) |
| Discharging | 14°F to 131°F (-10°C to 55°C) |
| Storage | 32°F to 95°F (0°C to 35°C), recommended, up to 12 months; -4°F to 131°F (-20°C to 55°C) up to 1 month |
| Self-heating | No |
| Physical | |
| Weight | 135 lb (61 kg) |

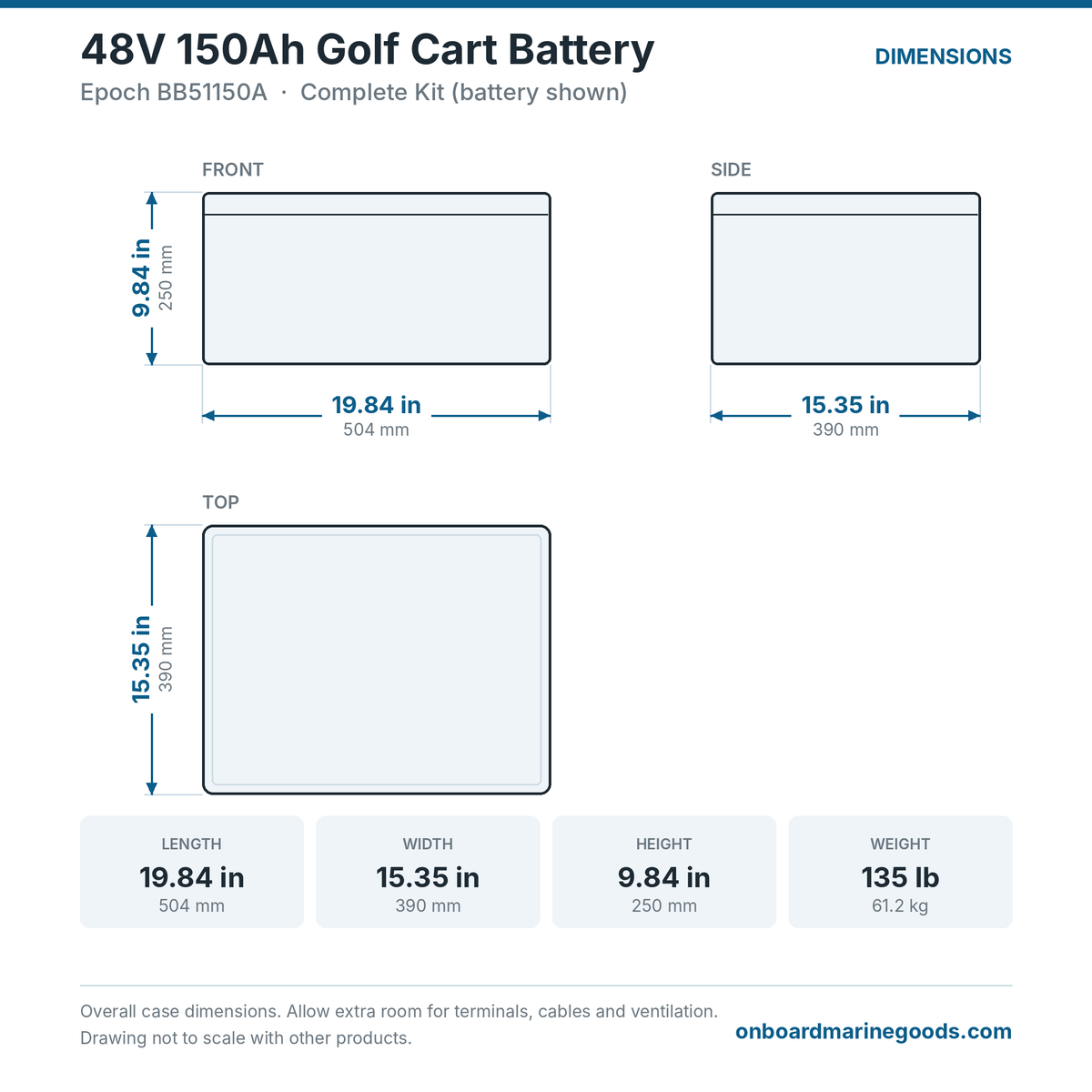

| Dimensions (L × W × H) | 19.84 × 15.35 × 9.84 in (504 × 390 × 250 mm) |
| Water resistance | IP67 (temporary immersion to 1 m for 30 minutes; not for water jets or pressure washing) |
| Bluetooth | Yes, Epoch Li-Ion app (iOS and Android) |
| Communications | Communication port, over-the-air firmware updates |
| Warranty | 11 years |
| Kit includes | |
| Battery | BB51150A 51.2V 150Ah LiFePO4, 135 lb |
| Charger | 48V 22A onboard lithium charger |
| Extension cord | 10 ft heavy-duty, cart charge port to 120V AC outlet |
| Charge port plug | Cart-specific; replaces the factory lead-acid receptacle |
| Battery gauge | Digital Bluetooth gauge, dash mount |
| Remote on/off switch | 6 ft, with wiring harness (13 ft harness sold separately) |
| DC converter | Fused 48V-to-12V, 25A max, 40–90V input, 13.5V regulated output, key-on enable wire |
| Mounting brackets | Cart-specific (EZGO TXT or Other) |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
