48V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
48V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Upgrade your cart with the Epoch 48V 105Ah lithium golf cart battery complete kit. Includes a drop-in LiFePO4 battery, 15A charger, gauge & 11-year warranty.
Features
- Single-battery 48V conversion with charger, gauge, converter and brackets
- 200A continuous, 300A for 15 s and 700A for 2 s discharge; 300A regen peak
- Bluetooth gauge and Epoch Li-Ion app with over-the-air updates
- 12V accessory output via 25A step-down converter
- IP67 stainless steel case
- BMS with cell balancing and low-charge buzzer/gauge warning below 20% SOC
- 3,500+ cycles
- 11-year limited warranty
Specifications
| Epoch part number | BB51105A-Kit |
| Electrical | |
|---|---|
| Capacity | 105Ah (5,376Wh / 5.38kWh) |
| Nominal voltage | 51.2V (48V class) |
| Max charge voltage | 58.4V |
| Operating voltage range | 40V to 58.4V |
| Max continuous discharge | 200A (1.9C) |
| Peak discharge | 300A for up to 15 s; 700A for up to 2 s |
| Max continuous charge | 100A (0.95C) |
| Peak charge (regen) | 300A for up to 15 s |
| Series / parallel | Series not supported; up to 2 in parallel (210Ah) |
| Cells | Prismatic LiFePO4, 16S1P |
| Cycle life | 3,500+ cycles |
| Charger settings | |
| Absorption end | 5.25A tail current (C/20) |
| Recharge restart | When lowest cell drops below 3.34V (about 95% SOC) |
| Charge time | About 7 h from empty with the included 15A charger |
| Temperature | |
| Charging | 32°F to 131°F (0°C to 55°C) |
| Discharging | 14°F to 131°F (−10°C to 55°C) |
| Storage | −4°F to 131°F (−20°C to 55°C) up to 1 month; 32°F to 95°F (0°C to 35°C) recommended, up to 12 months |
| Self-heating | No (no internal heater) |
| Physical | |
| Weight | 99 lb (45 kg) |
| Dimensions (L × W × H) | 18.1 × 13.4 × 9.8 in (460 × 340 × 250 mm) |
| Case | Stainless steel |
| Terminals | Positive and negative terminals on the front panel (type and torque not stated) |
| Water resistance | IP67 (dust-tight; temporary immersion to 1 m for 30 min) |
| Bluetooth | Yes, Epoch Li-Ion app (iOS and Android) with over-the-air updates |
| Communications | CAN connector on the harness (manufacturer/dealer service) |
| Warranty | 11-year limited |
| Kit includes | |
| Battery | 48V 105Ah LiFePO4 (BB51105A) |
| Charger | 48V 15A waterproof lithium charger, AC input 85–265V, 58.4V max |
| Extension cord | 10 ft heavy-duty (product page) |
| Battery gauge | Digital Bluetooth gauge (SOC, voltage, current, temperature, warnings) |
| Remote switch | 6 ft remote on/off power switch with wiring harness (product page) |
| 12V converter | 48V to 12V step-down, 25A (input 40–90V, output 13.5V, key-on input) |
| Charge port plug | Cart-specific, replaces factory receptacle (product page) |
| Mounting brackets | Cart-specific |
| Not included | Main fuse or DC-rated breaker |

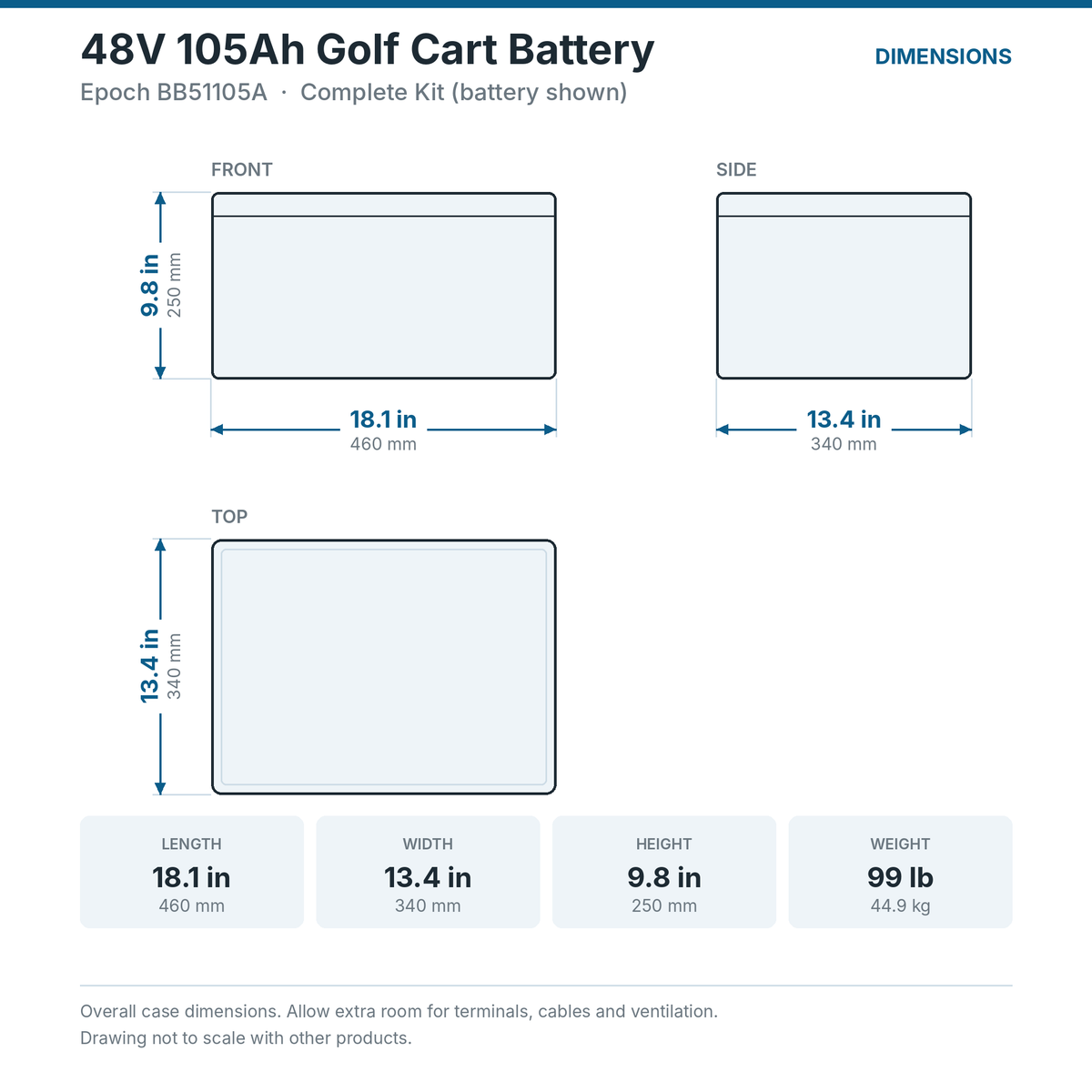

Dimensions
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
