48V 105Ah MINI Golf Cart Battery Complete Kit - Lithium (LiFePO4)
48V 105Ah MINI Golf Cart Battery Complete Kit - Lithium (LiFePO4) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Upgrade your cart with the Epoch 48V 105Ah Mini lithium battery kit. Includes a 15A charger, gauge, 12V converter, Bluetooth, and an 11-year warranty.
Features
- Mini footprint replaces six 8V lead-acid batteries
- 200A continuous with 300A (15 s) and 700A (2 s) peaks for hills, lifted carts and upgraded controllers
- Regenerative-braking charging up to 300A for 15 s
- Bluetooth gauge and Epoch Li-Ion app with over-the-air updates
- IP67 stainless steel case
- Advanced BMS with cell balancing
- 3,500+ cycle life
- 11-year limited warranty
Specifications
| Epoch part number | BB51105A_MINI-kit-1 |
| Electrical | |
|---|---|
| Capacity | 105Ah (5,376Wh) |
| Nominal voltage | 51.2V |
| Max charge voltage | 58.4V |
| Operating voltage range | 40V to 58.4V |
| Max continuous discharge | 200A |
| Peak discharge | 300A for up to 15 s; 700A for up to 2 s |
| Max continuous charge | 100A |
| Series / parallel | No series connection; up to 2 in parallel (210Ah) |
| Cells | Prismatic LiFePO4, 16S1P |
| Cycle life | 3,500+ cycles |
| Charger settings | |
| Bulk / absorption | 56.8V to 57.6V |
| Float | Disabled (preferred) or 53.3V to 54.4V |
| Equalization | Disabled |
| Temperature | |
| Charging | 32°F to 131°F (0°C to 55°C) |
| Discharging | 14°F to 131°F (-10°C to 55°C) |
| Storage | 32°F to 95°F (0°C to 35°C) recommended, up to 12 months |
| Self-heating | No |
| Physical | |
| Weight | 99 lb (45 kg) |

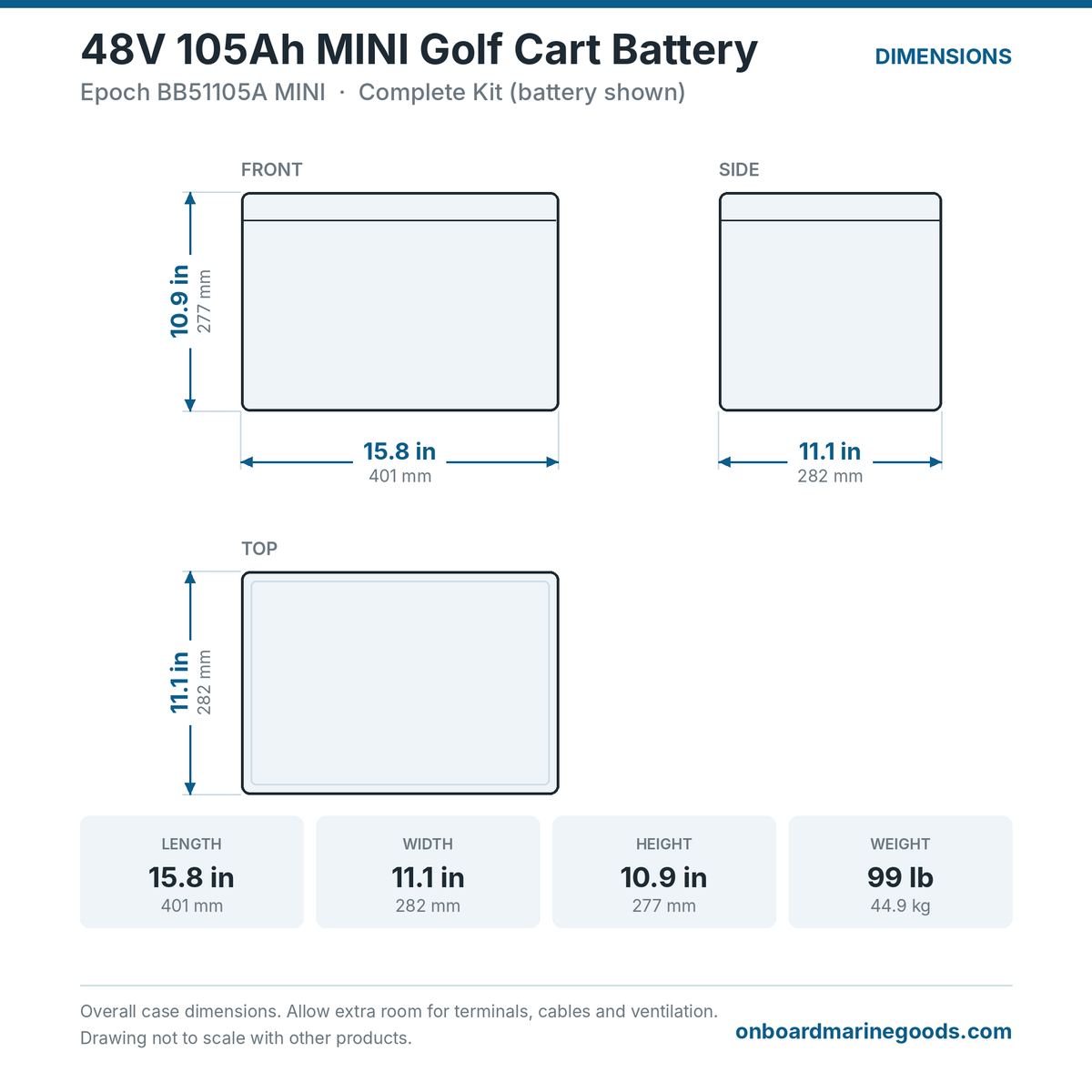

| Dimensions (L × W × H) | 15.8 × 11.1 × 10.9 in (401 × 282 × 277 mm) |
| Terminals | M8 female |
| Water resistance | IP67 (temporary immersion to 1 m for 30 min; do not pressure-wash) |
| Bluetooth | Yes (Epoch Li-Ion app, OTA updates) |
| Communications | Bluetooth; CAN on harness for service |
| Warranty | 11 years |
| Kit includes | |
| Battery | 48V 105Ah MINI LiFePO4 battery |
| Charger | 48V 15A waterproof lithium charger (85–265V AC input), about 7 h from empty, with 10 ft extension cord |
| Gauge | Digital Bluetooth battery gauge (state of charge, voltage, current, temperature) with wiring harness |
| Power switch | 6 ft remote on/off switch with harness |
| 12V converter | 48V to 12V step-down, 25A (40–90V in, 13.5V out) |
| Charge port | Cart-specific charge port plug |
| Brackets | Club Car DS mounting brackets |
| Not included | Main fuse or DC-rated breaker |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
