48V 100Ah V2-T Elite Series LiFePO4 Battery (5.12kWh)
48V 100Ah V2-T Elite Series LiFePO4 Battery (5.12kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Shop the Epoch 48V 100Ah (5.12kWh) V2-T Elite LiFePO4 battery. Features an internal 250A Class-T fuse, native Victron comms, heating & 11-year warranty.
Features
- User-serviceable 250A Eaton Class T fuse behind a sealed top panel
- Native Victron CAN bus at 500 kbit/s with DVCC (Cerbo GX, Ekrano GX, Cerbo GX Mk2)
- Bluetooth monitoring through the included battery gauge and the Epoch Cloud app
- Internal heating for cold-weather charging
- IP67 case: temporary immersion to 1 m for 30 minutes
- Up to 16 batteries in parallel
- 3,500+ cycles
- 11-year limited warranty
Specifications
| Epoch part number | C48100A-A |
| Electrical | |
|---|---|
| Capacity | 100Ah (5,120Wh) |
| Nominal voltage | 51.2V |
| Max charge voltage | 58.0V |
| Operating voltage range | 41.6V to 58.0V |
| Max continuous discharge | 150A (about 7,680W) |
| Peak discharge | 300A for 30 seconds |
| Max continuous charge | 100A, all sources combined (300A for 10 seconds) |
| Series / parallel | Series and series-parallel not supported. Parallel: up to 16 (1,600Ah, 81.92kWh) |
| Cells | LiFePO4, 16S1P |
| Internal fuse | 250A Eaton Class T, user-serviceable |
| Cycle life | 3,500+ cycles |
| Charger settings | |
| Bulk / absorption | 56.8V, at least 15 minutes per battery in the bank |
| Float | 54.0V |
| Equalization | Off |
| Temperature compensation | 0mV/°C (off) |
| Temperature | |
| Charging | 32°F to 131°F (0°C to 55°C) cell temperature; down to -22°F (-30°C) ambient with self-heating when charge current is available |
| Discharging | -4°F to 131°F (-20°C to 55°C) |
| Storage | -4°F to 113°F (-20°C to 45°C) up to 1 month; 32°F to 95°F (0°C to 35°C) up to 1 year |
| Self-heating | Yes. Incoming charge current warms the cells first, then normal charging resumes. |
| Physical | |
| Weight | 97 lb (about 44 kg) |

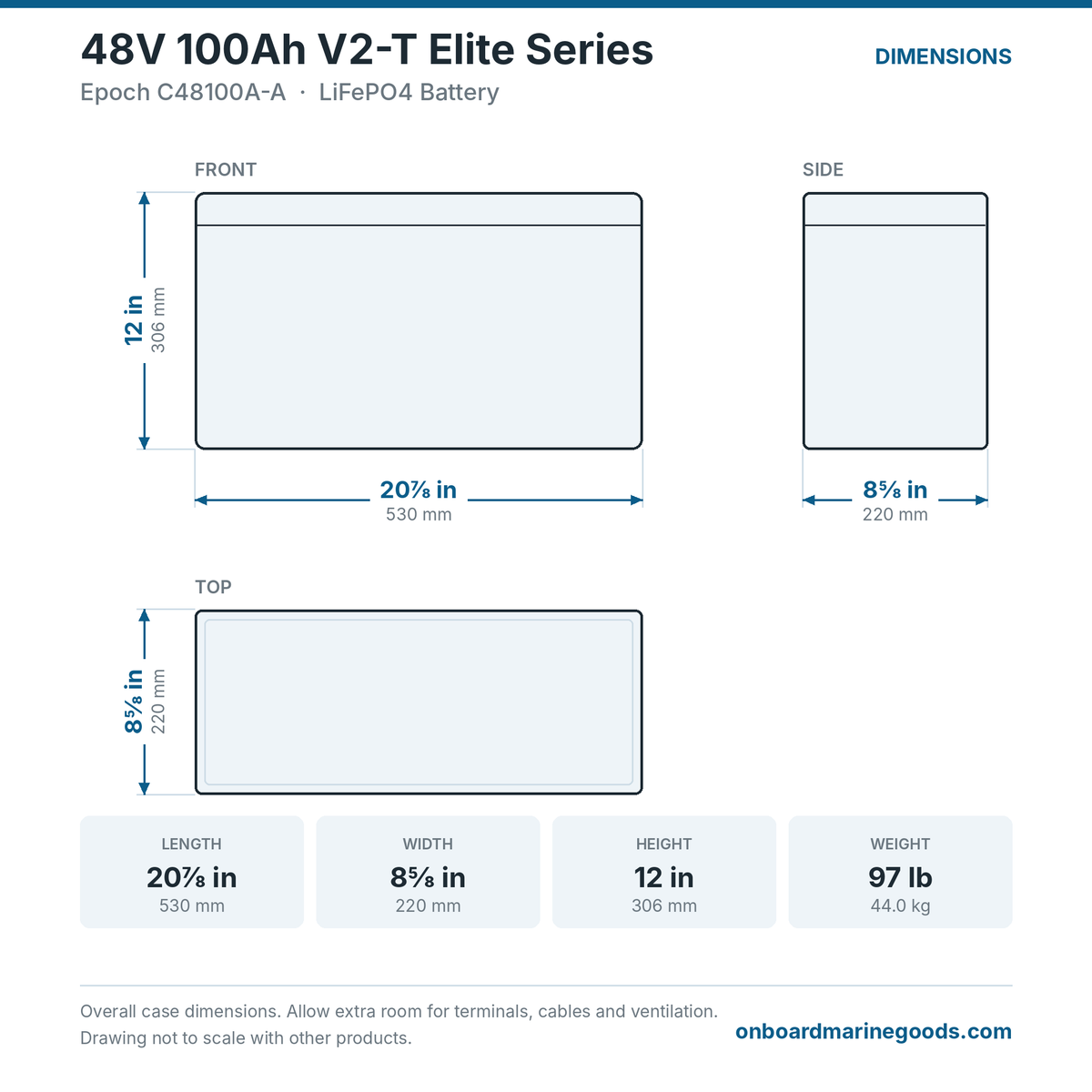

| Dimensions (L × W × H) | 20⅞ × 8⅝ × 12 in (530 × 220 × 306 mm), height including posts |
| BCI group / footprint | No BCI group stated (confirm fit before replacing a Group 8D battery) |
| Terminals | M8 bolts, 106 in-lb (12 N·m) |
| Case | PC + ABS, UL94 V-0 |
| Water resistance | IP67 (temporary immersion to 1 m for 30 minutes; not for water jets or continuous submersion) |
| Bluetooth | Yes, via included battery gauge (Epoch Cloud app) |
| Communications | Victron CAN bus, 500 kbit/s, daisy-chain |
| Certifications | Pack: UL 1973. Cells: UL 1642, UL 9540A, IEC 62619:2022. Fuse: UL 60691. UN 38.3 |
| Warranty | 11 years |
| In the box | |
| In the box | Battery, Bluetooth battery gauge, external power button, communication harness. 8D mounting bracket sold separately. |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
