48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)
48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Shop the Epoch 48V 100Ah V2 Elite lithium battery. Delivering 5.12kWh of power, native Victron CANbus comms, cold-weather heating, and IP67 waterproofing.
Features
- Native 48V, 5.12kWh in one case for lower current and smaller cables
- Native Victron CAN at 500 kbit/s; DVCC hands charge control to the battery
- 150A output (about 7,680W DC) for up to 20 minutes
- Self-heating charges from -22°F (-30°C) ambient
- IP67 enclosure
- Bluetooth battery gauge included; Epoch Li-Ion app shows state of charge, cell voltages, temperatures and alerts, with over-the-air firmware updates
- Up to 16 in parallel (1,600Ah, 81.92kWh)
- Smart BMS and internal fuse
Specifications
| Epoch part number | C48100A |
| Electrical | |
|---|---|
| Capacity | 100Ah (5,120Wh), at 0.5C, 25°C |
| Nominal voltage | 51.2V |
| Max charge voltage | 58.4V |
| Operating voltage range | 40.0V to 58.4V |
| Max continuous discharge | 150A for up to 20 minutes (not for cycling) |
| Peak discharge | 300A for 30 seconds |
| Max continuous charge | 100A (300A for 5 seconds) |
| Series / parallel | No series connection; up to 16 in parallel (1,600Ah) |
| Cells | Prismatic LiFePO4, 16S1P (100Ah cells) |
| Cycle life | 3,500+ cycles to 70% remaining capacity (25°C, 0.5C charge, 1C discharge) |
| Cold cranking amps | Not a cranking battery |
| Charger settings | |
| Bulk / absorption | 56.8V, at least 15 min per battery in the bank |
| Float | 54.0V |
| Re-bulk | 53.2V |
| Equalization | Disabled |
| Temperature compensation | Disabled (0 mV/°C) |
| Temperature | |
| Charging | -22°F to 131°F (-30°C to 55°C) ambient with self-heating; cells 32°F to 131°F (0°C to 55°C) |
| Discharging | -4°F to 131°F (-20°C to 55°C) |
| Storage | 32°F to 95°F (0°C to 35°C) up to 1 year; -4°F to 113°F (-20°C to 45°C) up to 1 month |
| Self-heating | Yes |
| Physical | |
| Weight | 97 lb (approx. 44 kg) |

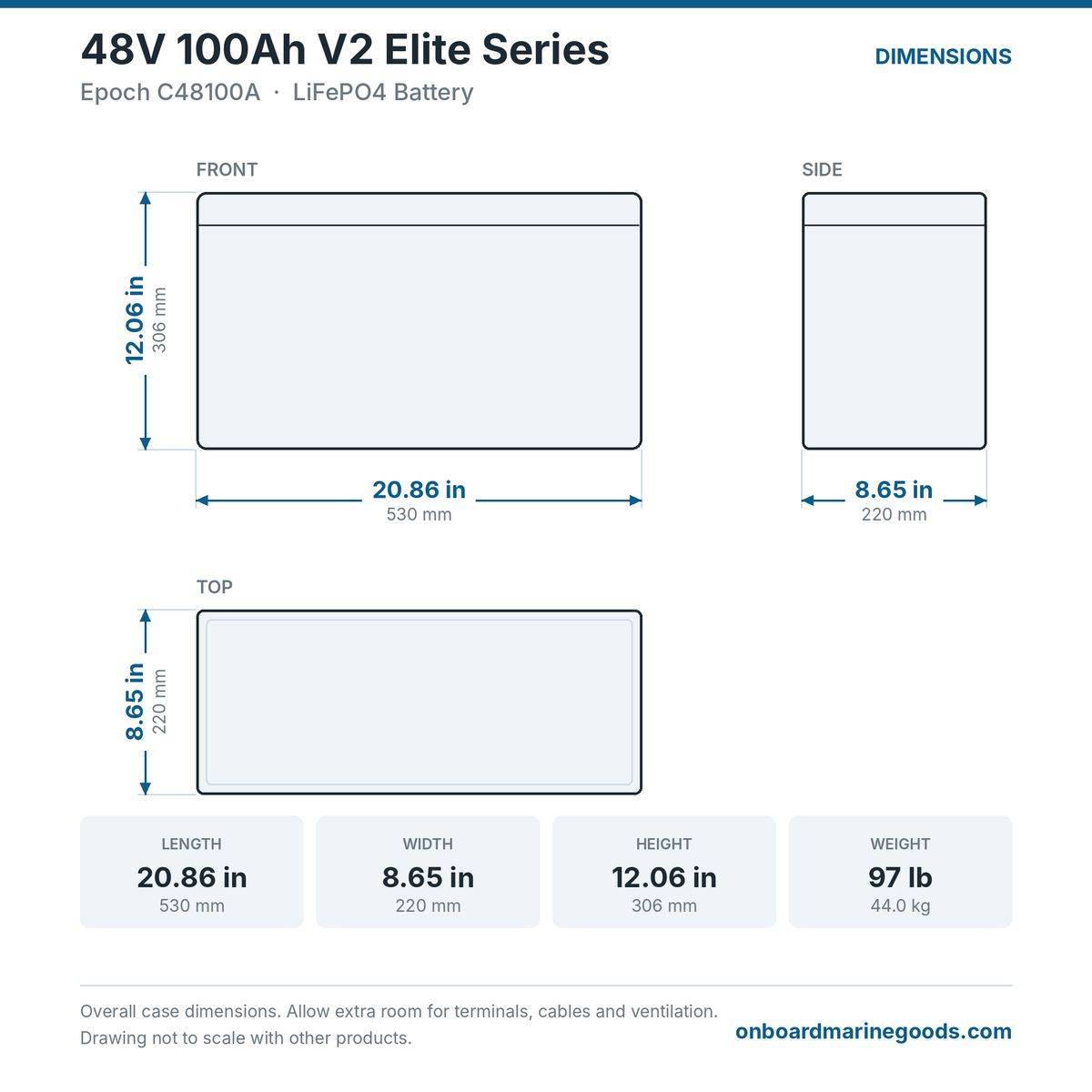

| Dimensions (L × W × H) | 20.86 × 8.65 × 12.06 in (529.8 × 219.8 × 306.3 mm), height includes terminal posts |
| BCI group / footprint | Can replace a Group 8D (fit check) |
| Terminals | M8 threaded, 8–12 N·m (71–106 lbf·in) |
| Water resistance | IP67 (temporary immersion to 1 m for 30 minutes) |
| Bluetooth | Yes, Bluetooth 4.0 via included battery gauge (Epoch Li-Ion app) |
| Communications | CAN bus 500 kbit/s, Victron GX BMS-CAN or VE.Can |
| Warranty | 11 years |
| Included | |
| In the box | Battery, Bluetooth battery gauge (S4855SW-H, mountable), gauge connection harness, mountable ON/OFF switch, battery and gauge manuals |
| Sold separately | V2 & V2-T Mounting Hardware (8D bracket) |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
