36V 100Ah LiFePO4 Lithium Battery (3.84kWh)
36V 100Ah LiFePO4 Lithium Battery (3.84kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Power your 36V trolling motor or golf cart with the Epoch 100Ah lithium battery. Enjoy 3.84kWh of heated, waterproof (IP67) power with built-in Bluetooth.
Features
- Native 36V: one battery can replace a three-battery 12V lead-acid trolling bank
- Internal heating warms the cells before charging in freezing weather
- Bluetooth monitoring in the Epoch Li-Ion app (state of charge, voltage, current, temperature, status)
- Included 10-segment battery meter shows charge in 10% steps and alarms at 10%
- IP67: dust-tight and temporarily immersible to 1 m for 30 minutes
- 120A continuous, 200A for up to 60 seconds
- BMS protection against overcharge, over-discharge, overcurrent, short circuit and temperature extremes
- 3,500+ cycle life
Specifications
| Epoch part number | B36100A-A |
| Electrical | |
|---|---|
| Capacity | 100Ah (3,840Wh) |
| Nominal voltage | 38.4V |
| Max charge voltage | 43.8V |
| Operating voltage range | 30.0V to 43.8V |
| Max continuous discharge | 120A (1.2C) |
| Peak discharge | 200A for up to 60 seconds |
| Max continuous charge | 100A (1C) |
| Recommended charge current | 50A (0.5C) |
| Series / parallel | No series connection; up to 4 in parallel (400Ah) |
| Cells | Prismatic LiFePO4, 12S |
| Cycle life | 3,500+ cycles |
| Cold cranking amps | Not designed for engine cranking |
| Charger settings | |
| Bulk / absorption | 42.6V to 43.2V; end at C/20 (5A) or 15 min |
| Float | Disabled (preferred) or 40.0V to 40.8V |
| Re-bulk | 39.6V |
| Equalization | Disabled |
| Temperature compensation | 0 mV/°C (off) |
| Temperature | |
| Charging | -4°F to 131°F (-20°C to 55°C) with heating; cells 32°F to 131°F (0°C to 55°C) |
| Discharging | -4°F to 140°F (-20°C to 60°C) |
| Storage | 32°F to 95°F (0°C to 35°C), recommended, max 12 months |
| Self-heating | Yes |
| Physical | |
| Weight | 75 lb (34.0 kg) |

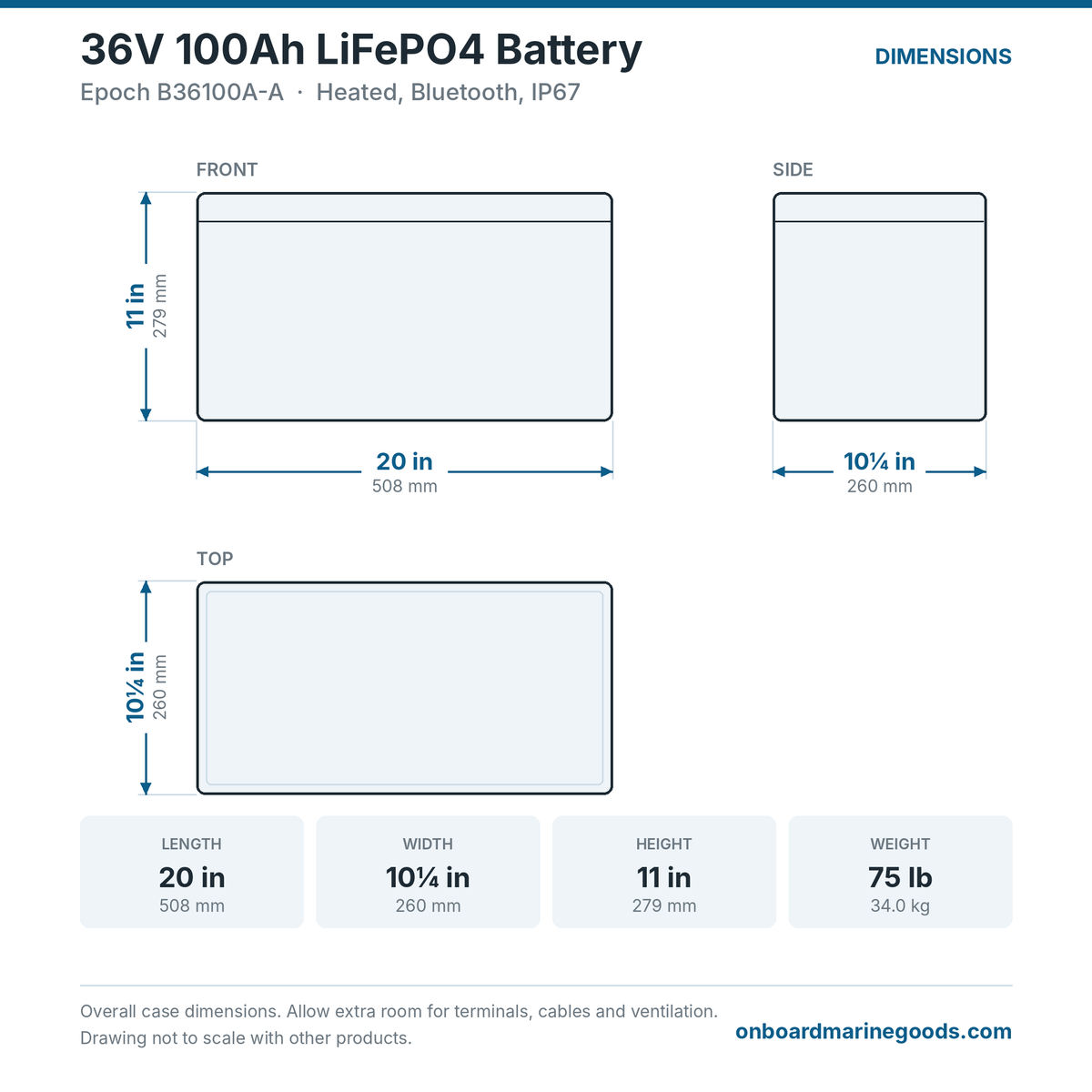

| Dimensions (L × W × H) | 20 × 10¼ × 11 in (508 × 260.4 × 279.4 mm) |
| Terminals | M8 female |
| Water resistance | IP67 (temporary immersion to 1 m for 30 minutes) |
| Bluetooth | Yes, Epoch Li-Ion app (iOS and Android) |
| Warranty | 11 years |
| Included | |
| In the box | 10-segment battery meter (no full packing list given) |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
