24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)
24V 60Ah Pro Series LiFePO4 Battery (1.54kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Shop the Epoch 24V 60Ah Pro Series LiFePO4 battery. Enjoy premium deep cycle power with a built-in smart BMS, Bluetooth tracking, and IP67 waterproof rating.
Features
- Self-heating film warms cells to 50°F (10°C) before charging
- Bluetooth with the Epoch Pro app and over-the-air updates
- CAN/RS485 Link in/out ports, Victron-compatible
- IP67 case with pressure-relief valve
- BCI Group 27 footprint
- Parallel expansion up to 16 batteries
- 6,000+ cycle life
- 11-year warranty
Specifications
| Epoch part number | DP2460H |
| Electrical | |
|---|---|
| Capacity | 60Ah (1,536Wh / 1.54kWh) |
| Nominal voltage | 25.6V |
| Max charge voltage | 29.2V |
| Operating voltage range | 20.0V to 29.2V |
| Max continuous discharge | 80A (30A recommended for daily use) |
| Peak discharge | 200A for up to 3 s (start-up surges only) |
| Max continuous charge | 60A (all sources combined) |
| Recommended charge current | 30A (0.5C) |
| Series / parallel | Series not approved; up to 16 in parallel (960Ah, 24.58kWh) |
| Cells | LiFePO4, 8S2P |
| Cycle life | 6,000+ cycles |
| Cold cranking amps | Not rated (not a cranking battery) |
| Charger settings | |
| Bulk / absorption | 28.4V to 28.8V |
| Absorption end | 3A (C/20) or 15 minutes |
| Float | 26.6V to 27.2V (off preferred where supported) |
| Re-bulk | 26.4V |
| Equalization | Disabled |
| Temperature compensation | Disabled (0 mV/°C) |
| Temperature | |
| Charging | −4°F to 131°F (−20°C to 55°C) with self-heating |
| Discharging | −4°F to 140°F (−20°C to 60°C) |
| Storage | 32°F to 95°F (0°C to 35°C), max 12 months |
| Self-heating | Yes (warms cells to 50°F / 10°C before charging) |
| Physical | |
| Weight | 30 lb (13.7 kg) |

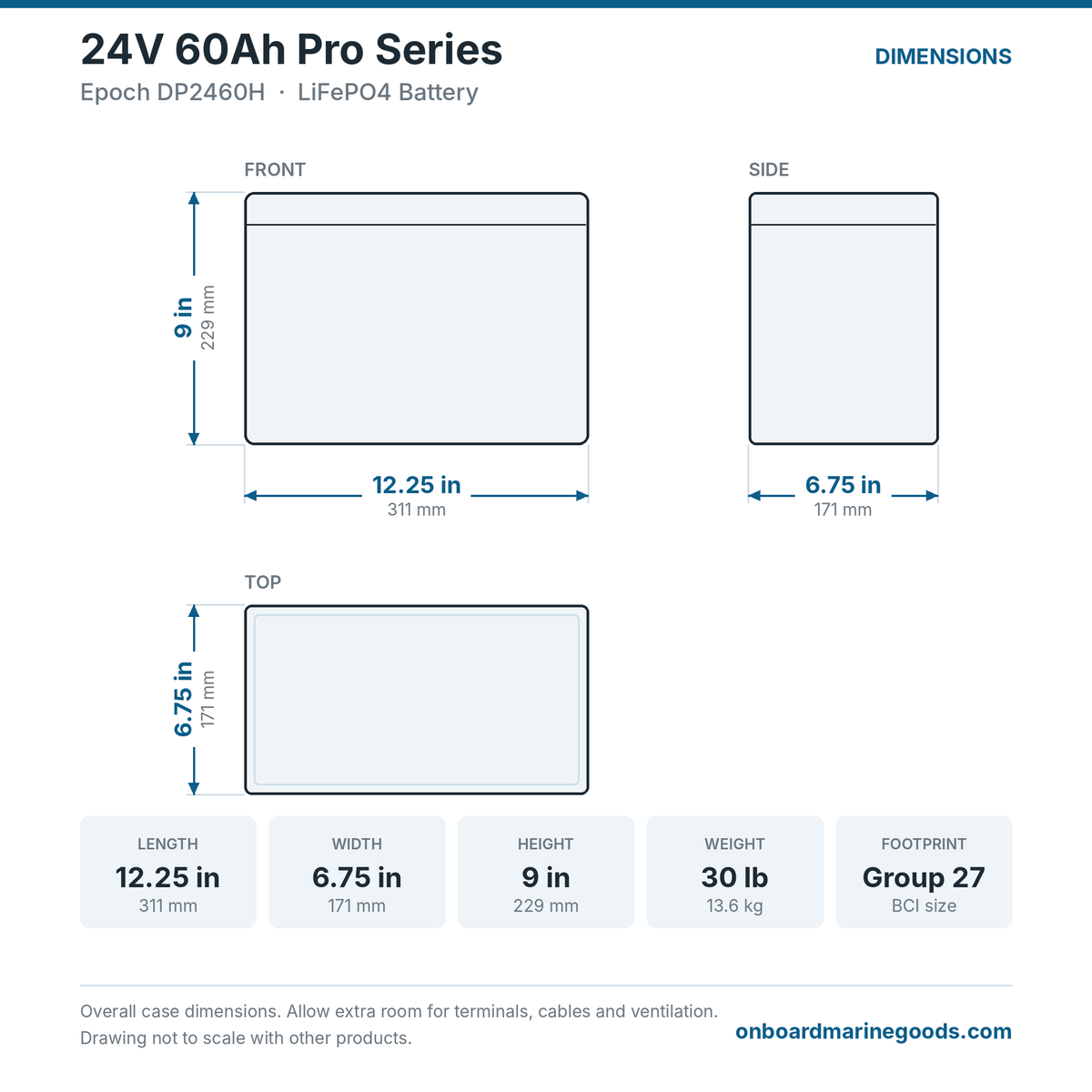

| Dimensions (L × W × H) | 12.25 × 6.75 × 9 in (311 × 171 × 229 mm) |
| BCI group / footprint | Group 27 |
| Terminals | M8 bolt; torque 8–10 Nm (71–89 in-lb) |
| Water resistance | IP67 (dust-tight; temporary immersion to 1 m for 30 min; not rated for water jets, pressure washing or continuous submersion) |
| Bluetooth | Yes, Epoch Pro app (iOS and Android) with over-the-air updates |
| Communications | CAN/RS485 Link in/out ports; Victron-compatible |
| Certifications | UL 1642 (cells), UL 9540A (cells), UL 1973 (pack, datasheet only), IEC 62619:2022, CE, RoHS, UN 38.3 |
| Warranty | 11 years (register within 90 days) |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
