24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)
24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Shop the Epoch 24V 230Ah V2 Elite LiFePO4 Battery (5.89kWh). Features internal heating, Victron CANBUS comms, Bluetooth monitoring & 11-year warranty.
Features
- 5.89kWh of 24V energy in one case with one BMS
- Native Victron CAN at 500 kbit/s (GX BMS-CAN or VE.Can); DVCC hands charge control to the battery
- Self-heating allows charging from -22°F (-30°C) ambient
- IP67: dust-tight and protected against temporary immersion to 1 m for 30 minutes
- Bluetooth battery gauge included; Epoch Li-Ion app shows state of charge, cell voltages, temperatures and alerts, with over-the-air firmware updates
- Up to 16 in parallel (3,680Ah, 94.21kWh) or 2 in series
- Smart BMS and internal fuse
- 3,500+ cycles to 70% remaining capacity
Specifications
| Epoch part number | C24230A |
| Electrical | |
|---|---|
| Capacity | 230Ah (5,888Wh) |
| Nominal voltage | 25.6V |
| Max charge voltage | 29.2V |
| Operating voltage range | 20.0V to 29.2V |
| Max continuous discharge | 110A |
| Peak discharge | 300A (short duration) |
| Max continuous charge | 110A (200A short duration) |
| Series / parallel | Up to 2 in series (51.2V), up to 16 in parallel (3,680Ah); series-parallel not covered by published settings |
| Cells | Prismatic LiFePO4, 8S1P (230Ah cells) |
| Cycle life | 3,500+ cycles to 70% remaining capacity |
| Cold cranking amps | Not a cranking battery |
| Charger settings | |
| Bulk / absorption | 28.4V, at least 15 min per battery in the bank |
| Float | 27.0V |
| Re-bulk | 26.6V |
| Equalization | Disabled |
| Temperature compensation | Disabled (0 mV/°C) |
| Temperature | |
| Charging | -22°F to 131°F (-30°C to 55°C) ambient with self-heating; cells 32°F to 131°F (0°C to 55°C) |
| Discharging | -4°F to 131°F (-20°C to 55°C) |
| Storage | 32°F to 95°F (0°C to 35°C) up to 1 year; -4°F to 113°F (-20°C to 45°C) up to 1 month |
| Self-heating | Yes |
| Physical | |
| Weight | 97 lb (approx. 44 kg) |

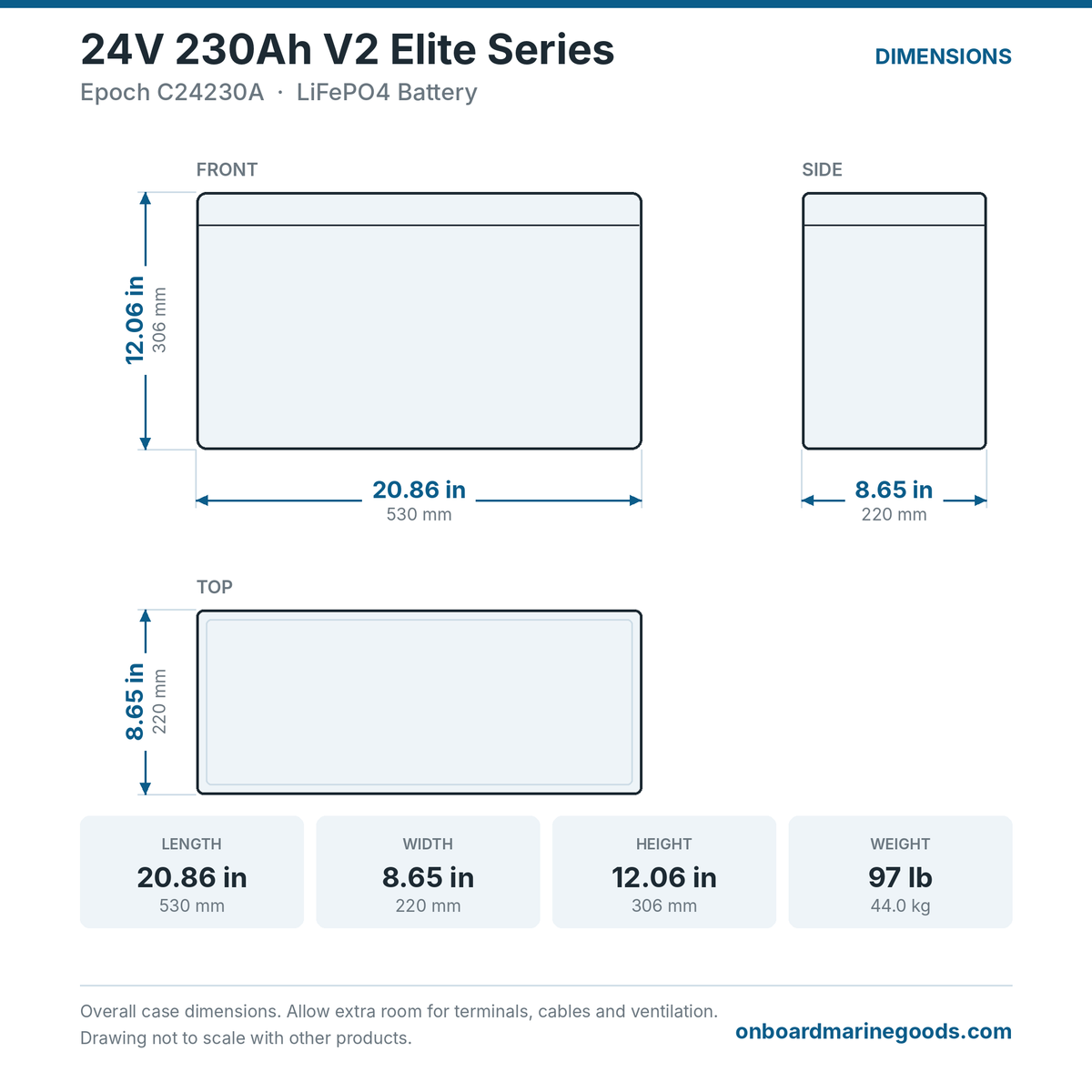

| Dimensions (L × W × H) | 20.86 × 8.65 × 12.06 in (529.8 × 219.8 × 306.3 mm), height includes terminal posts |
| BCI group / footprint | Can replace a Group 8D (confirm tray fit, hold-down and lid clearance) |
| Terminals | M8 threaded, 8–12 N·m (71–106 lbf·in) |
| Water resistance | IP67 (temporary immersion to 1 m for 30 minutes) |
| Bluetooth | Yes, via included battery gauge (Epoch Li-Ion app) |
| Communications | CAN bus 500 kbit/s, Victron GX BMS-CAN or VE.Can |
| Warranty | 11 years |
| Included | |
| In the box | Battery, communication harness, Bluetooth battery gauge (mountable), mountable ON/OFF switch |
| Sold separately | V2 & V2-T Mounting Hardware (8D bracket) |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
