24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)
24V 230Ah Essential Series LiFePO4 Battery (5.89kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Upgrade your boat or RV with the Epoch 24V 230Ah deep cycle lithium battery. Features cold-weather heating, 4000+ cycles, IP54, and an 11-year warranty.
Features
- Native 24V (25.6V) in one case
- Internal heating powered by the charger, for charging in cold weather
- Bluetooth monitoring with the Epoch Li-Ion app; shunt built into the BMS
- 200A continuous discharge, 300A peak for up to 10 seconds
- BMS protection against overcharge, over-discharge, overcurrent, short circuit and high/low temperature
- IP54 case: dust protected and splash resistant
- 4,000+ cycles, maintenance-free
- BCI Group 8D footprint
- 11-year limited warranty
Specifications
| Epoch part number | 24230A-H |
| Electrical | |
|---|---|
| Capacity | 230Ah (5,888Wh) |
| Nominal voltage | 25.6V |
| Max charge voltage | 29.2V |
| Operating voltage range | 20.0V to 29.2V |
| Max continuous discharge | 200A |
| Recommended discharge | 115A (0.5C) |
| Peak discharge | 300A for up to 10 seconds |
| Max continuous charge | 200A |
| Recommended charge current | 115A (0.5C) |
| Series / parallel | Series not approved. Parallel: up to 4 batteries (920Ah); confirm the maximum with Epoch |
| Cells | LiFePO4 prismatic, 8S1P |
| Cycle life | 4,000+ cycles |
| Cold cranking amps | Not cranking rated |
| Charger settings | |
| Bulk / absorption | 28.4V to 28.8V |
| Absorption end | Current at or below C/20 (11.5A), or 15 minutes, whichever comes first |
| Float | Off (preferred), or 26.6V to 27.2V |
| Re-bulk | 26.4V |
| Equalization | Off |
| Temperature compensation | 0mV/°C (off) |
| Temperature | |
| Charging | -4°F to 131°F (-20°C to 55°C) with heating; cells charge at 32°F (0°C) and above |
| Discharging | -4°F to 140°F (-20°C to 60°C) |
| Storage | 32°F to 95°F (0°C to 35°C) |
| Self-heating | Yes. The heater runs on incoming charge current (0.5A minimum). Charging stops at 32°F (0°C) and resumes at 41°F (5°C). |
| Physical | |
| Weight | 84 lb (38.1 kg) |

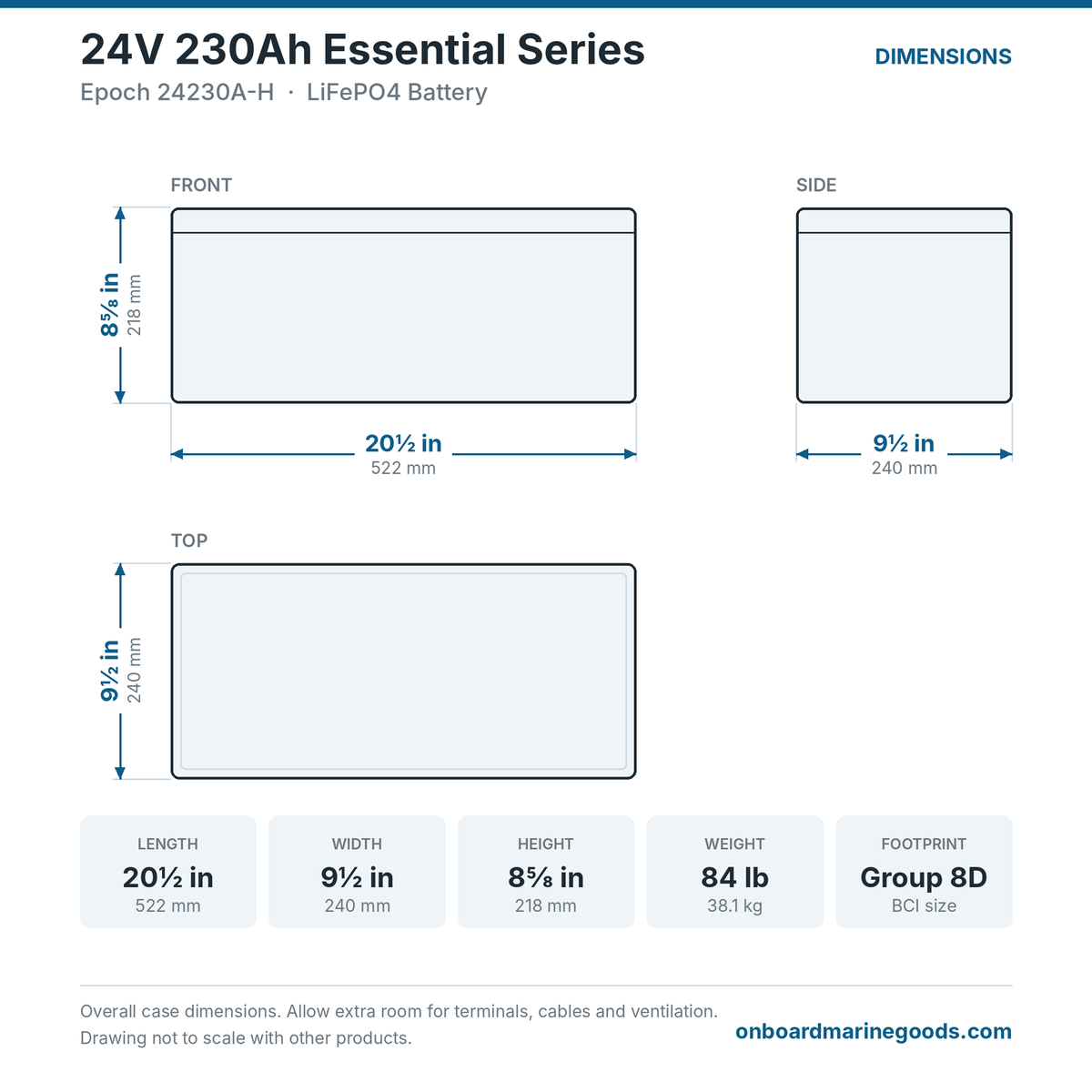

| Dimensions (L × W × H) | 20½ × 9½ × 8⅝ in (522 × 240 × 218 mm) |
| BCI group / footprint | Group 8D |
| Terminals | M8 female, 71 to 106 in-lb (8 to 12 N·m) |
| Case | Battery-grade ABS/PC |
| Water resistance | IP54 (splash resistant, not submersible) |
| Bluetooth | Yes (Epoch Li-Ion app) |
| Certifications | CE, RoHS, UN 38.3 |
| Warranty | 11 years |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
