12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)
12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Upgrade to the Epoch 12V 460Ah LiFePO4 battery. Features massive 5.89kWh capacity, native Victron CANBUS comms, internal heating, and Bluetooth monitoring.
Features
- Native Victron CAN bus at 500 kbit/s with DVCC charge control (Cerbo GX, Ekrano GX, Cerbo GX Mk2)
- Bluetooth 4.0 monitoring through the included battery gauge and the Epoch Li-Ion app, with over-the-air firmware updates
- Internal heater for cold-weather charging
- IP67 case: dust-tight, temporary immersion to 1 m for 30 minutes
- UL 60691 internal fuse (400A)
- Up to 16 in parallel or 4 in series
- 3,500+ cycles to 70% capacity
- 11-year limited warranty
Specifications
| Epoch part number | C12460A |
| Electrical | |
|---|---|
| Capacity | 460Ah (5,888Wh) |
| Nominal voltage | 12.8V |
| Max charge voltage | 14.6V |
| Operating voltage range | 10.0V to 14.6V |
| Max continuous discharge | 230A |
| Peak discharge | 500A for 30 seconds; 1,300A for 1 second |
| Max continuous charge | 230A (400A for 5 seconds) |
| Recommended charge current | 230A (0.5C) |
| Continuous power | About 2,944W DC |
| Series / parallel | Up to 4 in series (51.2V) or up to 16 in parallel (7,360Ah). Series-parallel banks: contact Epoch |
| Cells | LiFePO4 prismatic, 4S2P (230Ah cells) |
| Internal fuse | 400A rated, UL 60691 |
| Self-discharge | 3% per month or less |
| Cycle life | 3,500+ cycles to 70% capacity at 77°F (25°C) |
| Charger settings | |
| Bulk / absorption | 14.2V, 15 minutes per battery in the bank |
| Float | 13.5V |
| Re-bulk | 13.3V |
| Equalization | Off |
| Temperature compensation | 0mV/°C (off) |
| Temperature | |
| Charging | -22°F to 131°F (-30°C to 55°C) ambient with self-heating; cells charge at 32°F to 131°F (0°C to 55°C) |
| Discharging | -4°F to 131°F (-20°C to 55°C) |
| Storage | -4°F to 113°F (-20°C to 45°C) up to 1 month; 32°F to 95°F (0°C to 35°C) up to 1 year |
| Self-heating | Yes. Charging stops at 32°F (0°C) cell temperature and resumes at about 41°F (5°C). |
| Physical | |
| Weight | 97 lb (about 44 kg) |

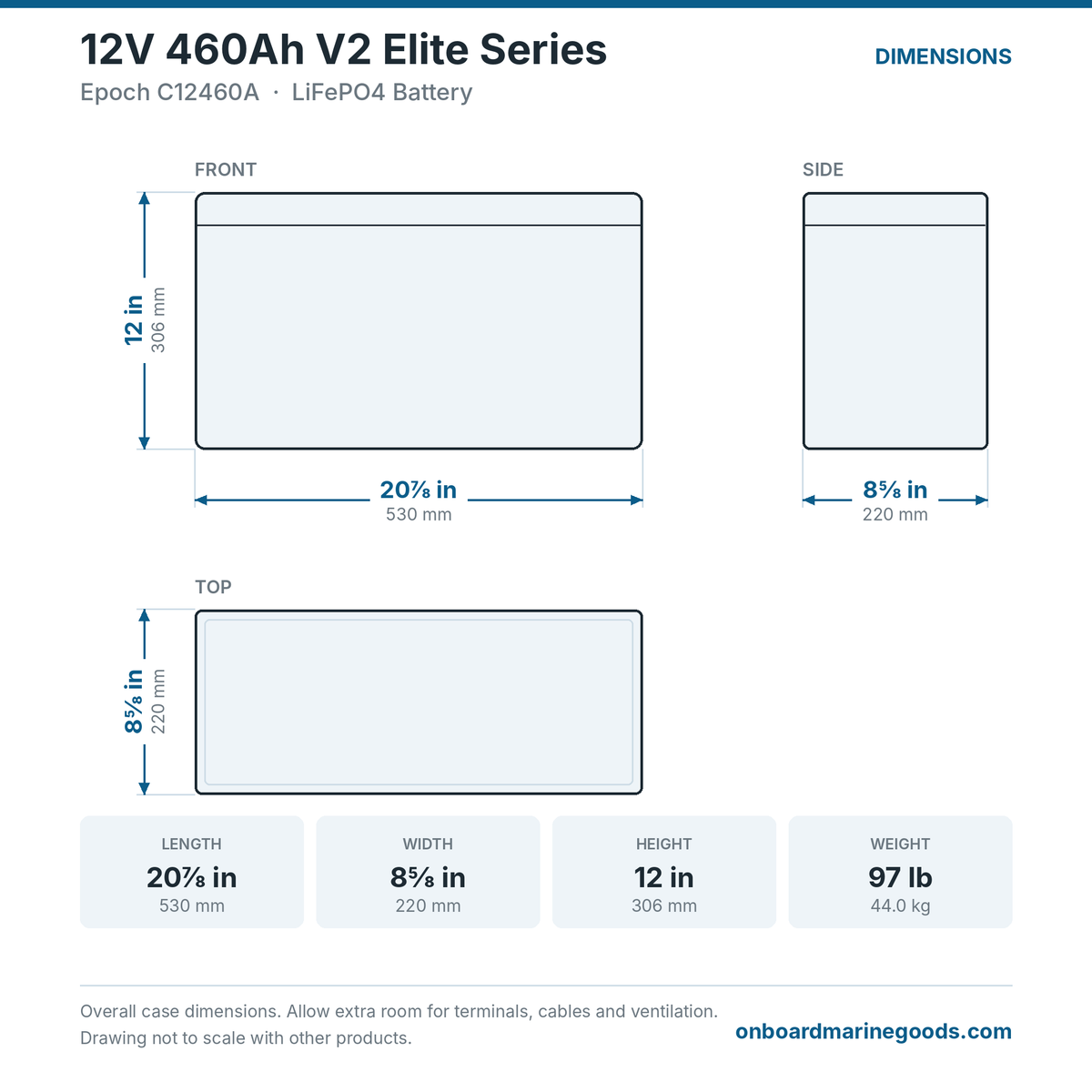

| Dimensions (L × W × H) | 20⅞ × 8⅝ × 12 in (530 × 220 × 306 mm), height including posts |
| BCI group / footprint | No BCI group stated (Group 8D mentioned only for replacement fit checks) |
| Terminals | M8 threaded, 71 to 106 in-lb (8 to 12 N·m), 18 in (457 mm) apart |
| Case | ABS/PC blend, UL94 V-0 |
| Water resistance | IP67 (dust-tight, temporary immersion to 1 m for 30 minutes; not for water jets or continuous submersion) |
| Bluetooth | Yes, Bluetooth 4.0 via included battery gauge (Epoch Li-Ion app) |
| Communications | Victron CAN bus, 500 kbit/s (BMS-CAN or VE.Can) |
| Certifications | Cells: UL 1642, UL 9540A, IEC 62619:2022. Pack: UL 1973. CE, RoHS, UN 3480 Class 9 |
| Warranty | 11 years |
| In the box | |
| In the box | Battery, communication and wiring harness, Bluetooth battery gauge, external power button, user manual. Mounting bracket sold separately. |
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
