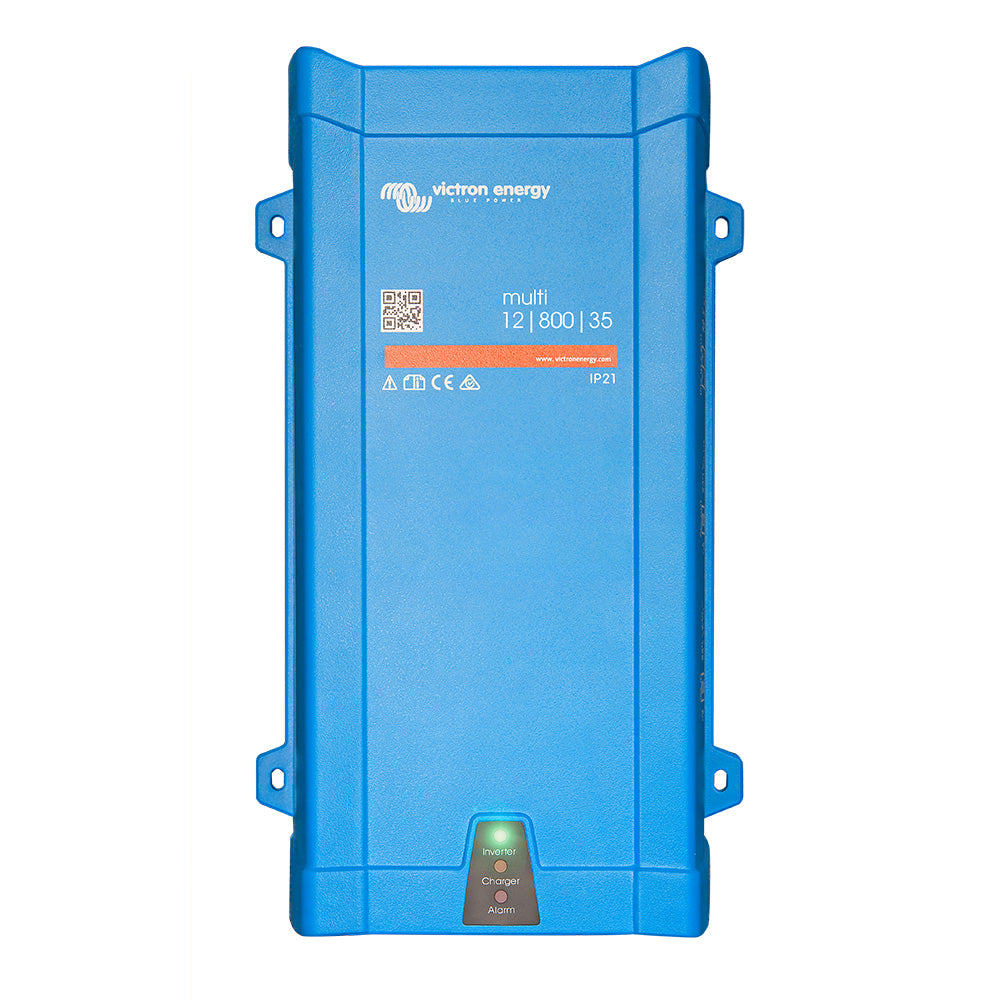

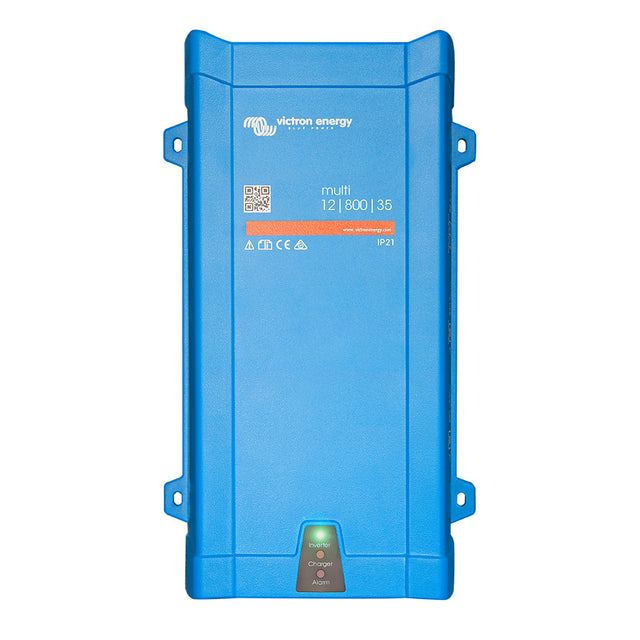

Victron MultiPlus 12/800/35 16 120V VE.Bus [PMP121800100]

Victron MultiPlus 12/800/35-16: 800VA = 700 watts continuous

A 12V inverter/charger from Victron Energy with 120V AC output: an inverter, a battery charger (up to 35 A) and an automatic transfer switch (16 A) in one box. On shore power or a generator it charges your batteries and passes AC through to the boat; when shore power drops, it switches to the batteries.

Why the VA number isn't the watts: Victron rates its inverters in VA (volt-amps). This one delivers 700W continuous at 77°F (25°C) and 1,600W peak for motor and compressor start-up. Size your loads around 700W, not 800W. Compare all Victron inverters →

What it will run on a boat

At 700W it handles electronics and entertainment gear, satellite internet, LED lighting and small appliances that stay under its rating. Add up everything you'll run at the same time and leave 20–25% headroom.

Battery draw and wiring

At full continuous output it pulls roughly 63 amps from a 12V battery bank (700W ÷ 12V ÷ 92% efficiency). Size the battery cables, DC fuse and battery bank for that current. The manual lists Victron's recommended cable and fuse sizes for this model.

Mounting it in a hot engine room?

Continuous output drops as the temperature rises: 650W at 104°F (40°C), 400W at 149°F (65°C). In the Keys an engine room or lazarette can easily run hotter than 104°F, so size for the hottest spot you'll mount it and give it airflow.

Idle draw at anchor

Switched on with nothing plugged in, it uses about 7W, roughly 14Ah per day from a 12V bank. Turn on 2 W in search mode to cut that down when you're off the dock.

On shore power

Set the AC input current limit to match your dock pedestal or generator. With PowerAssist, it cuts back battery charging and adds battery power during peaks so you don't trip the shore breaker. Charging is adaptive, 4-stage (default 14.4 VDC absorption / 13.8 VDC float), programmable for lithium, AGM or flooded banks.

Specifications (from Victron)

Documents

• Datasheet
• Manual

Note: Victron has released a newer version of this unit (part number PMP121800110). Call us if you want the current model.

Buying from OnBoard

We install Victron systems on boats in Marathon and the Florida Keys. Not sure which size you need? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you size it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
