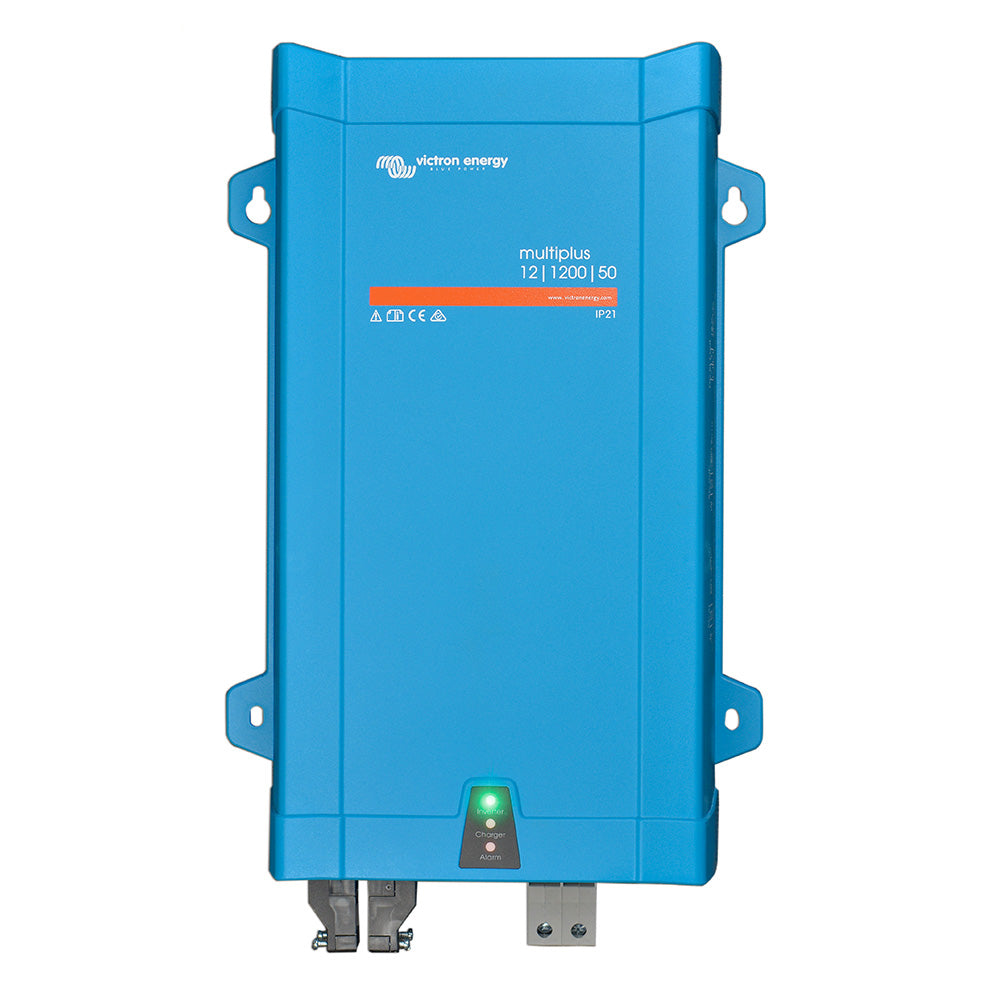

Victron MultiPlus 12/1200 - 50-16 - 120V - VE. Bus [PMP122120100]

Victron MultiPlus 12/1200/50-16: 1,200VA = 1,000 watts continuous

A 12V inverter/charger from Victron Energy with 120V AC output: an inverter, a battery charger (up to 50 A) and an automatic transfer switch (16 A) in one box. On shore power or a generator it charges your batteries and passes AC through to the boat; when shore power drops, it switches to the batteries.

Why the VA number isn't the watts: Victron rates its inverters in VA (volt-amps). This one delivers 1,000W continuous at 77°F (25°C) and 2,400W peak for motor and compressor start-up. Size your loads around 1,000W, not 1,200W. Compare all Victron inverters →

What it will run on a boat

At 1,000W it handles a coffee maker or a small microwave, plus electronics. Check the appliance's input watts: a "700W" microwave usually draws 1,000–1,200W from the outlet. Add up everything you'll run at the same time and leave 20–25% headroom.

Battery draw and wiring

At full continuous output it pulls roughly 90 amps from a 12V battery bank (1,000W ÷ 12V ÷ 93% efficiency). Size the battery cables, DC fuse and battery bank for that current. The manual lists Victron's recommended cable and fuse sizes for this model.

Mounting it in a hot engine room?

Continuous output drops as the temperature rises: 900W at 104°F (40°C), 600W at 149°F (65°C). In the Keys an engine room or lazarette can easily run hotter than 104°F, so size for the hottest spot you'll mount it and give it airflow.

Idle draw at anchor

Switched on with nothing plugged in, it uses about 13W, roughly 26Ah per day from a 12V bank. Turn on 4 W in search mode to cut that down when you're off the dock.

On shore power

Set the AC input current limit to match your dock pedestal or generator. With PowerAssist, it cuts back battery charging and adds battery power during peaks so you don't trip the shore breaker. Charging is adaptive, 4-stage (default 14.4 VDC absorption / 13.8 VDC float), programmable for lithium, AGM or flooded banks.

Specifications (from Victron)

Documents

• Datasheet
• Manual
• Example system wiring diagram 1
• Example system wiring diagram 2

Note: Victron has released a newer version of this unit (part number PMP122120110). Call us if you want the current model.

Buying from OnBoard

We install Victron systems on boats in Marathon and the Florida Keys. Not sure which size you need? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you size it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
