Victron Quattro 48/5000/70-100/100 120V (UL 1741) [QUA482501102]
Victron Quattro 48/5000/70-100/100 120V (UL 1741) [QUA482501102] is backordered and will ship as soon as it is back in stock.
Description
Description
Special Order: Estimated working time 5 business days. We order this unit from Victron Energy for you. Questions about fit or lead time? Contact us.

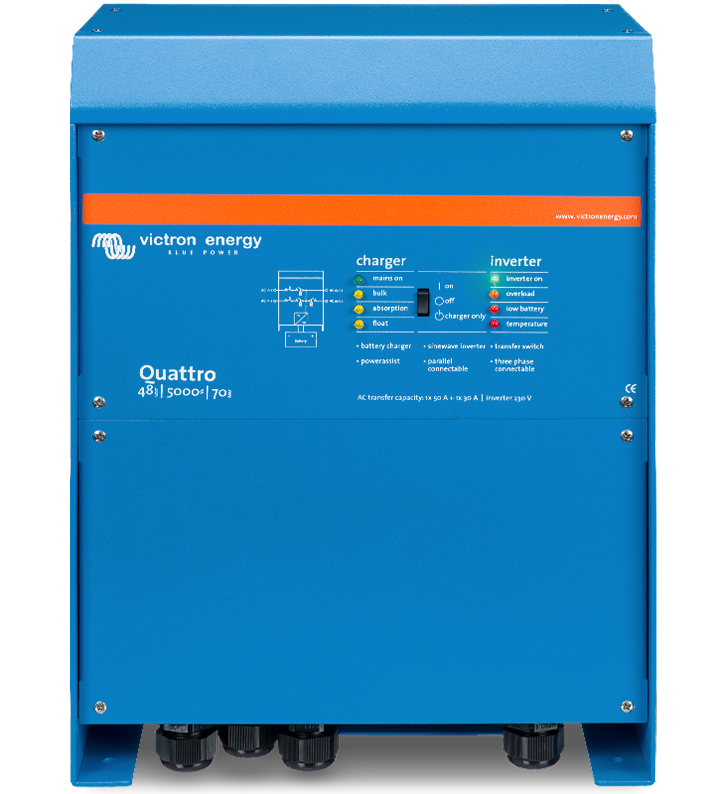

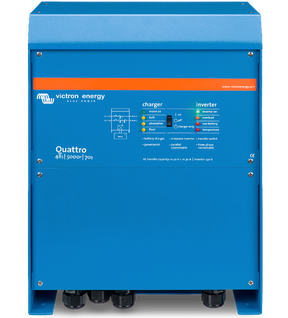

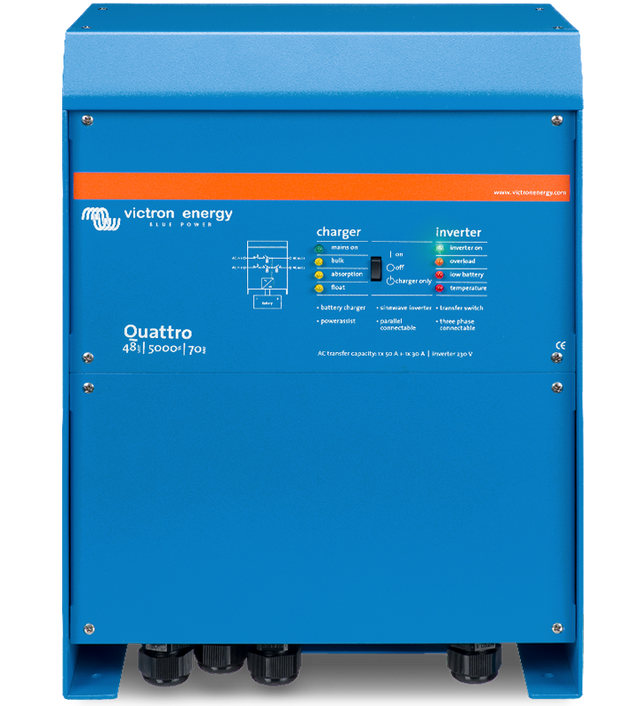

Victron Quattro 48/5000/70-100/100 120V (UL 1741)
An inverter/charger with two AC inputs and a built-in transfer switch, so shore power and a generator can both be wired in and it picks the one that's live. Two AC outputs, PowerControl and PowerAssist, and switch-over in milliseconds when shore power drops. Parallel and three-phase capable.
Specifications
- Continuous output at 77°F (25°C): 5,000 VA / 4,000 W
- Continuous output at 104°F (40°C): 3,700 W
- Continuous output at 149°F (65°C): 3,000 W
- Peak power: 10,000 W
- Battery voltage: 48 V DC (input range 38–66 VDC)
- AC output: 120 V, 60 Hz pure sine wave
- Max battery charge current: 70 A
- Transfer switch: 100A each
- AC inputs: 2
- Max efficiency: 95%
- Zero-load power: 35 W
- Communication: VE.Bus
- Protection: IP21
- Safety standard: UL 1741 (grid-interactive)
- Warranty: 5 years (Victron)
Dimensions & weight
- Size (H × W × D): 17.5 × 12.9 × 9.4 in (444 × 328 × 240 mm)
- Weight: 66.1 lb (30 kg)
