Garmin B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-Pin [010-12379-20]
FULFILLMENT OPTIONS
Shipping available
Garmin B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-Pin [010-12379-20] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Garmin B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp ...
Garmin B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-Pin [010-12379-20] is backordered and will ship as soon as it is back in stock.
Description
Description

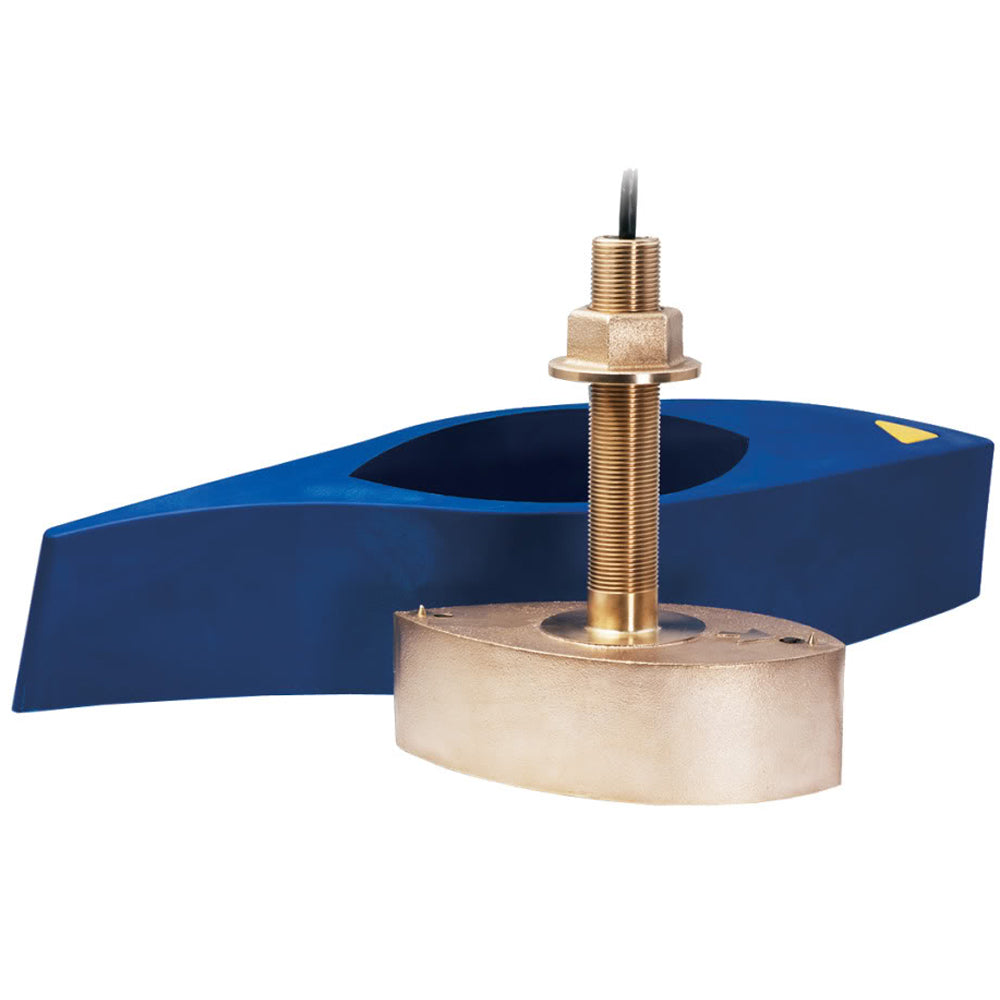

B265LH Bronze Thru-Hull Mount Transducer w/Depth & Temp - 12-Pin
Garmin's best performing 1 kW thru-hull transducer, this mount performs well in deep water and has exceptional bottom and water column detail.
This transducer has a depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees; and a 0 to 20 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Devices:
- GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv
- GSD™ 25 Premium Sonar Module
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Mounting Style: Thru-Hull
- Temperature: Yes
- Speed Included: No
- Imaging: Standard
- Chirp: Low/High
- Cable Length (Feet): 39'
- Pins: 12
- Box Dimensions: 7"H x 19"W x 26"L WT: 24.2 lbs
- UPC: 753759142414
