Mantus Anchor Swivel
Mantus Anchor Swivel - S1 is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

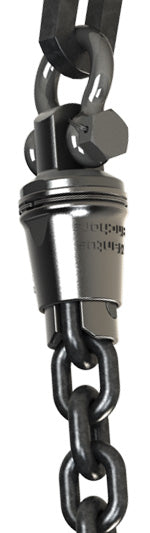

The Strongest Link in Your Chain
The strongest link – Mantus swivel is stronger than its corresponding Grade 40 chain. (WLL is 1/5 UBS)
Integrated shackle design completely eliminates side loading making this the safest swivel on the market.
The pin on the chain side of the swivel is the strength limiting part since the geometry of the chain determines the pin size. Mantus swivel is the first to feature an oblong pin to maximizes the pin strength, with the aid of computer modeling and physical testing we truly created a swivel that is the strongest link.
Note the innovative shackle bolt design – no shackle dog! This slim hex head design (with holes for safety wire) offers a slimmer profile making it easier for translating through your bow roller.
- 316 L Stainless Steel, Precision Cast and Electro-Polished Body
- Pin made from Duplex Stainless Steel and is mechanically polished and electro-polished.
SWIVELS ARE AVAILABLE IN THREE SIZES : S1 – S2 – S3
SWIVEL MODELS |
S1 |
S2 |
S3 |
| Imperial Chain | 1/4 – 5/16 | 5/16 -3/8 | 3/8 -1/2 |
| Metric Chain | 6mm – 8mm | 8mm – 10 mm | 11 mm – 13 mm |
| UBS (Ulitmate Breaking Strength) | 15,000 lb/ 6.8 T | 21,700 lb/ 9.8 T | 35,000 lb/ 16 T |
| WLL (Working load limit) (Safety Factor 5) | 3000 lb/ 1.5 T | 4,340 lb / 2 T | 7,000 lb / 3.2 T |
PRICE |
$85.50 |
$114 |
$180 |
