Victron Blue Smart IP67 Charger 24/5(1) 120V NEMA 5-15 [BPC240515106]
Pickup available at our Marathon storefront
Available for pickup or shipping
Victron Blue Smart IP67 Charger 24/5(1) 120V NEMA 5-15 [BPC240515106] is backordered and will ship as soon as it is back in stock.
(Ship Note)Speical Order: Ships in 2-5 Days, feel free to call to get a more exact date.
Ready to order
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Blue Smart IP67 Charger 24/5(1) 120V NEMA 5-15 [BPC240515106]
Victron Blue Smart IP67 Charger 24/5(1) 120V NEMA 5-15 [BPC240515106] is backordered and will ship as soon as it is back in stock.
Description
Description

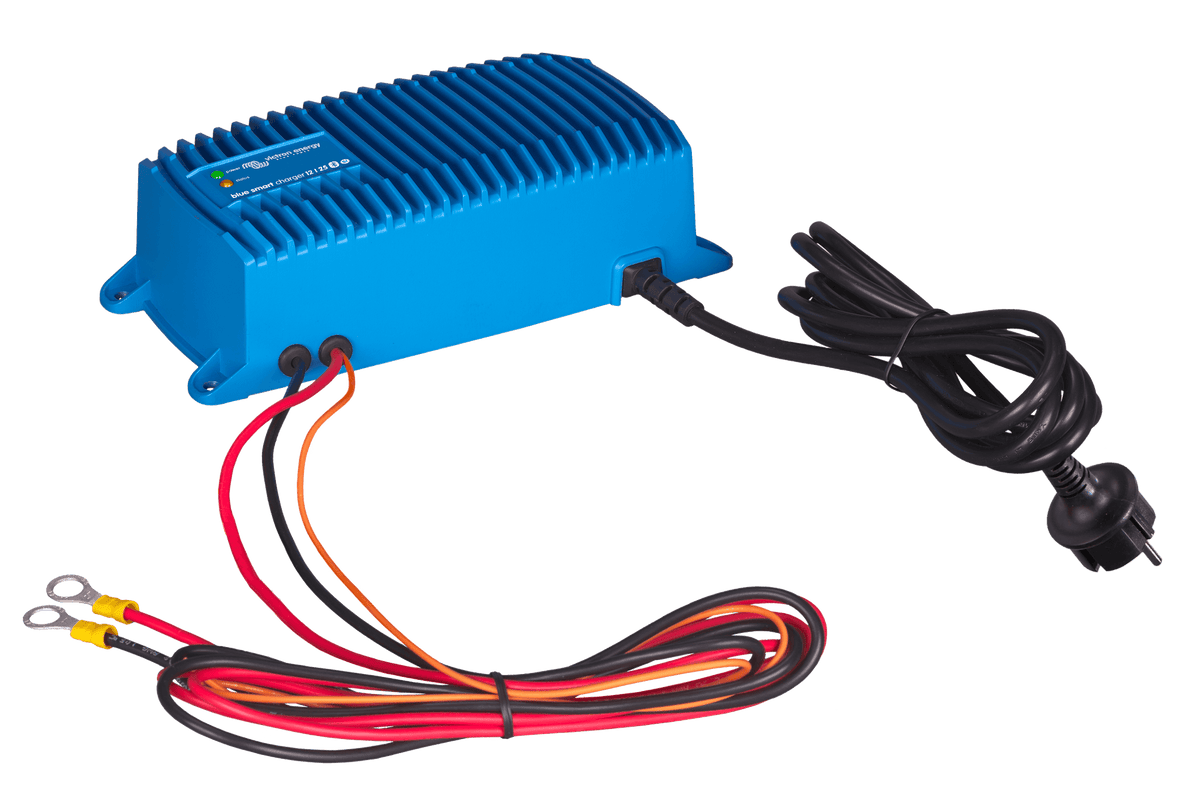

Victron Blue Smart IP67 Charger 24/5(1) 120V NEMA 5-15
Victron Blue Smart IP67 chargers are fully waterproof battery chargers with Bluetooth set-up and monitoring through the free VictronConnect app.
Specifications (from Victron)
| Charge Current Low Mode | 2 A |
| Charge Current Normal Mode (Nominal Value) | 5 A |
| Nominal battery voltage | 24 V |
| AC input voltage range | 100–135 VAC |
| Efficiency | 94 % |
| Communication Ports | Bluetooth |
| Bluetooth | Yes |
| Derating per °C above 40°C | 3 % |
| Operating temperature range | -22°F to 140°F (-30 to 60°C) |
| No-load power consumption | 0.5 W |
| Maximum humidity (non-condensing) | 100 % |
| Lithium compatible | Yes |
| Start interrupt option (Si) | No |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Over temperature |
| Programmable | Yes |
| Ouput fully rated up to | 104°F (40°C) |
| AC input frequency range | 45–65 Hz |
| Can be used as power supply | Yes |
| Charge algorithm | Adaptive, 5-stage |
| Charge voltage Absorption | Normal: 28.8V High: 29.4V Lithium: 28.4V |
| Charge voltage float | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage storage | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Battery connection terminal type | Red and black 1.5 meter cable with M8 eyelets |
| AC connection terminal type | Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug |
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Protection category | IP67 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Safety | CSA C22.2,EN-IEC 60335-1,EN-IEC 60335-2-29,UL 1236 |
| Warranty | 5 years (Victron) |
| Victron part number | BPC240515106 |
| UPC / EAN | 8719076044727 |
| Country of origin | India |
Documents
- Blue Smart IP67 Charger - 120VAC (datasheet)
- Blue Smart IP67 Charger - 230VAC (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
The Blue Smart IP67 Waterproof Charger is a professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
